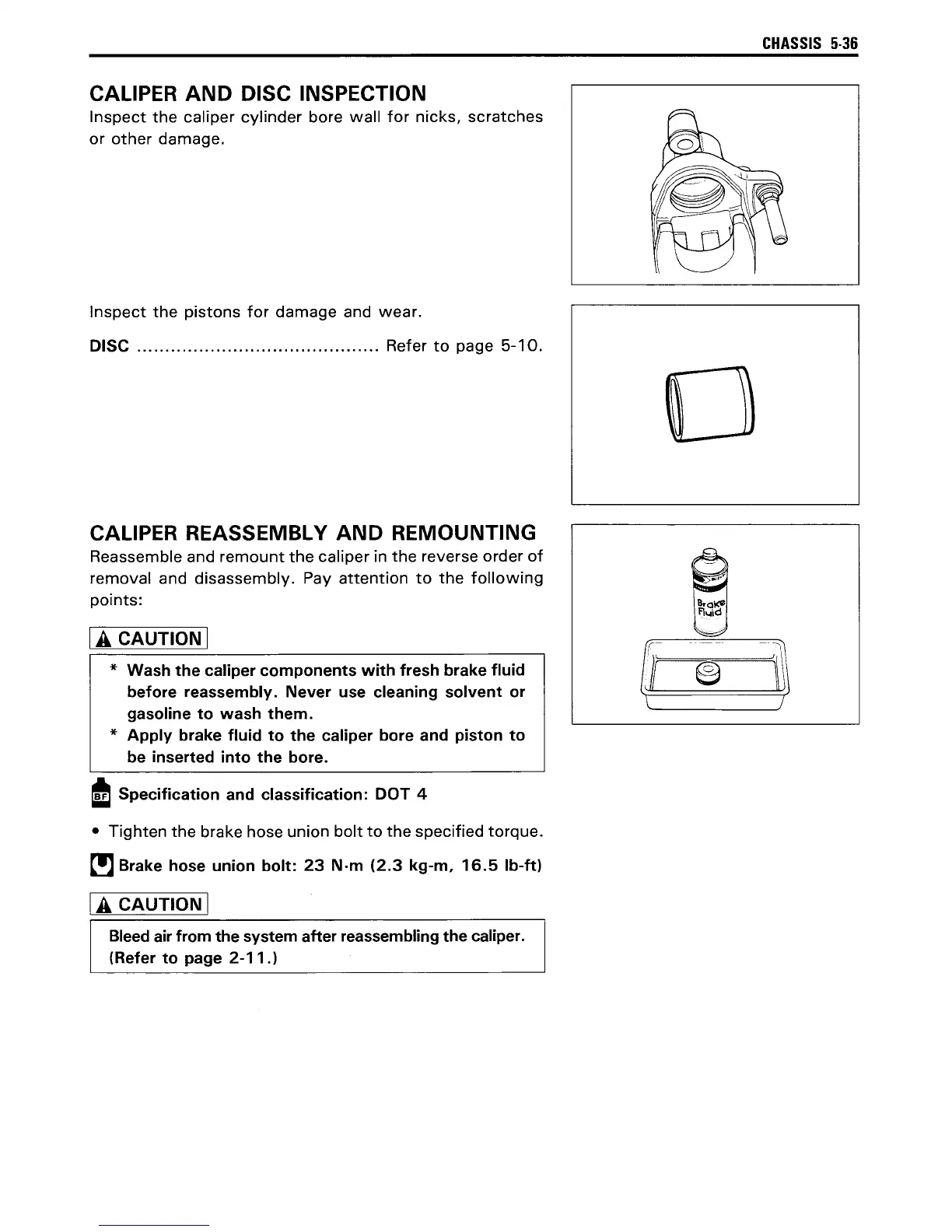

CALIPER AND DISC INSPECTION
Inspect the caliper cylinder bore wall for nicks, scratches
or other damage.
Inspect the pistons for damage and wear.
DISC ........................................... Refer to page 5-10.
CALIPER REASSEMBLY AND REMOUNTING
Reassemble and remount the caliper in the reverse order of
removal and disassembly. Pay attention to the following
points:
IA CAUTION I
* Wash the caliper components with fresh brake fluid
before reassembly. Never use cleaning solvent or
gasoline to wash them.
* Apply brake fluid to the caliper bore and piston to
be inserted into the bore.
III Specification and classification: DOT 4
• Tighten the brake hose union bolt to the specified torque.
~ Brake hose union bolt: 23 N·m (2.3 kg-m, 16.5 Ib-ft)
IA CAUTION I
Bleed air from the system after reassembling the caliper.
(Refer
to page 2-11.)
CHASSIS 5·36
o
.. ~

Suzuki DR650SE Specifications

General

Bore x Stroke	100.0 mm x 82.0 mm
Compression Ratio	9.5:1
Fuel System	Mikuni BST40 carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Tire	90/90-21
Rear Tire	120/90-17
Curb Weight	166 kg (366 lbs)
Starter	Electric
Engine Type	4-stroke, air-cooled, SOHC
Front Brakes	Disc brake
Rear Brakes	Disc brake
Fuel Tank Capacity	13.0 L (3.4 US gal.)
Overall Width	865 mm (34.1 in)
Ground Clearance	265 mm (10.4 in)
Seat Height	885 mm (34.8 in.)
Rear Suspension	Link type, coil spring, oil damped
