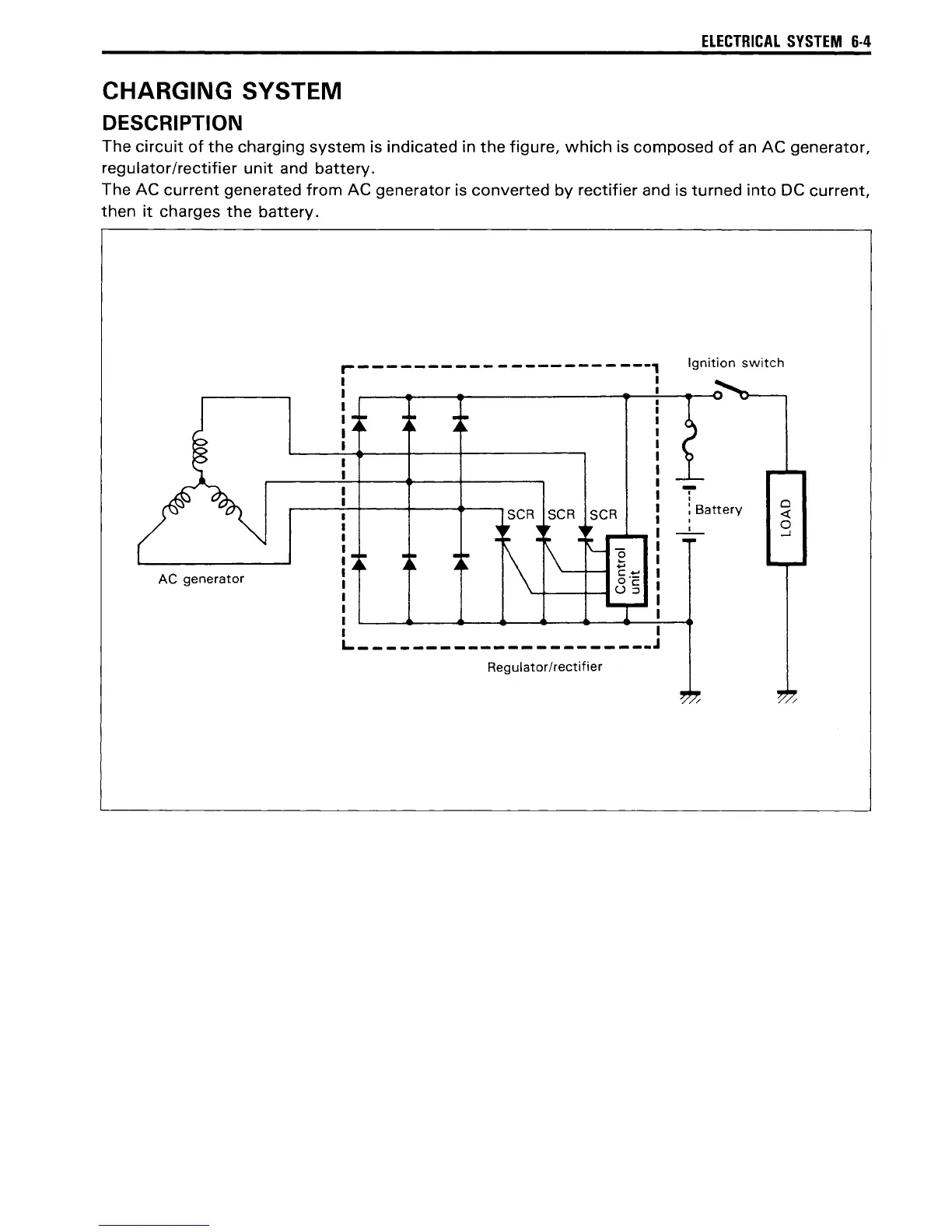

CHARGING
SYSTEM
DESCRIPTION
ELECTRICAL
SYSTEM
6-4
The
circuit
of
the
charging
system
is
indicated
in
the
figure,
which
is
composed
of
an
AC
generator,
regulator/rectifier
unit
and
battery_
The
AC
current
generated
from
AC
generator
is
converted
by
rectifier
and
is
turned
into
DC
current,
then
it
charges
the
battery_
r---------------------,
SCR
SCR
SCR
AC
generator
~----------------------
Regulator
/rectifier
Ignition
switch
~
I
:
Battery
I
-'-
/
o
«
o
...J
/
174
176
