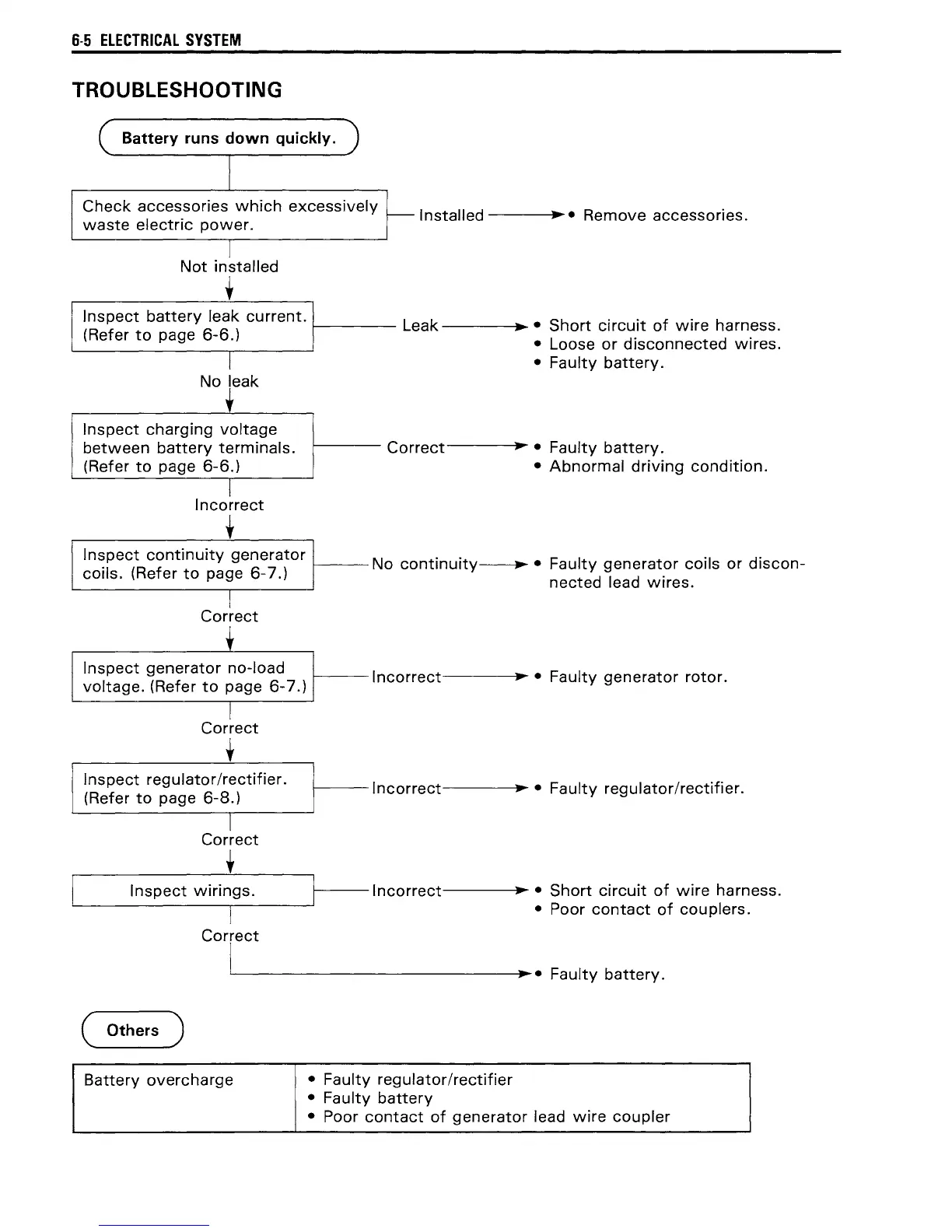

6·5 ElECTRICAL SYSTEM
TROUBLESHOOTING
Battery runs down quickly.
I
Check accessories which excessively I-- Installed ------i .. ~. Remove accessories.
waste electric power.
I
Not installed
•
Inspect battery leak current. 1--- ___ Leak ----l.~. Short circuit of wire harness.
(Refer
to page 6-6.) • Loose or disconnected wires.
I • Faulty battery.
No leak
•
Inspect charging voltage
between battery terminals.
(Refer to page 6-6.)
I
Incorrect
•
f----- Correct----1 .. ~. Faulty battery.
• Abnormal driving condition.
Inspect continuity generator 1----- No continuity---l.~ • Faulty generator coils or discon-
coils. (Refer to page 6-7.) nected lead wires.
I
Correct
•
Inspect generator no-load f----Incorrect----l.~. Faulty generator rotor.
voltage. (Refer to page 6-7.)
I
Correct
•
Inspect regulator/rectifier.
(Refer to page 6-8.)
I
Correct
•
Inspect wirings.
I
Correct
f----Incorrect----l .. ~ • Faulty regulator/rectifier.
I-----Incorrect----l.~ • Short circuit of wire harness.
• Poor contact of couplers.
IL----------------l.~. Faulty battery.
( Others)
Battery overcharge
• Faulty regulator/rectifier
• Faulty battery
• Poor contact of generator lead wire coupler

Suzuki DR650SE Specifications

General

Bore x Stroke	100.0 mm x 82.0 mm
Compression Ratio	9.5:1
Fuel System	Mikuni BST40 carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Tire	90/90-21
Rear Tire	120/90-17
Curb Weight	166 kg (366 lbs)
Starter	Electric
Engine Type	4-stroke, air-cooled, SOHC
Front Brakes	Disc brake
Rear Brakes	Disc brake
Fuel Tank Capacity	13.0 L (3.4 US gal.)
Overall Width	865 mm (34.1 in)
Ground Clearance	265 mm (10.4 in)
Seat Height	885 mm (34.8 in.)
Rear Suspension	Link type, coil spring, oil damped
