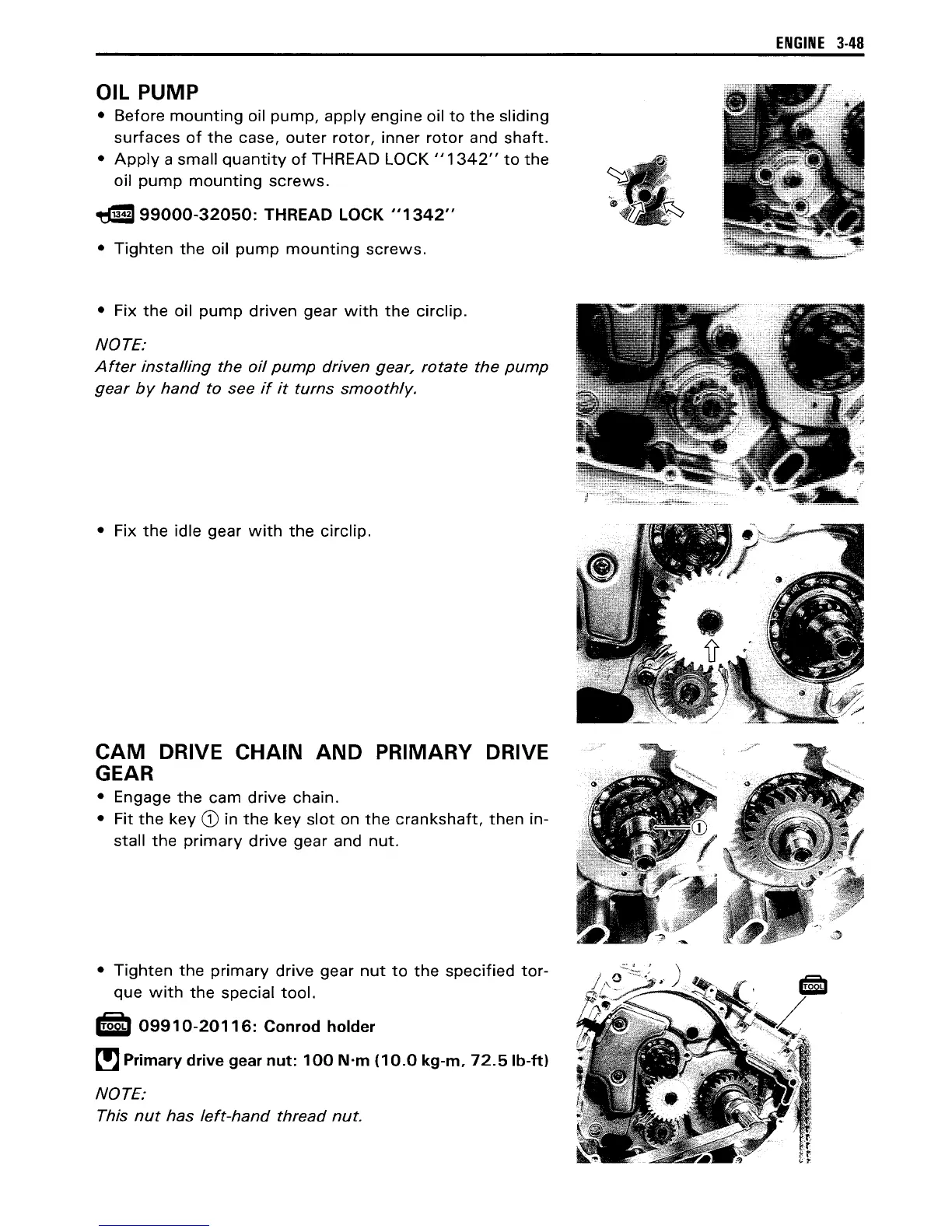

OIL PUMP
• Before mounting oil pump, apply engine oil to the sliding
surfaces of the case, outer rotor, inner rotor and shaft.
• Apply a small quantity of THREAD LOCK" 1342" to the
oil pump mounting screws.
tG:lI99000-320S0: THREAD LOCK "1342"
• Tighten the oil pump mounting screws.
• Fix the oil pump driven gear with the circlip.
NOTE:
After installing the oil pump driven gear, rotate the pump
gear by hand to see if it turns smoothly.
• Fix the idle gear with the circlip.
CAM DRIVE CHAIN AND PRIMARY DRIVE
GEAR
• Engage the cam drive chain.
• Fit the key CD in the key slot on the crankshaft, then in-
stall the primary drive gear and nut.
• Tighten the primary drive gear nut to the specified tor-
que with the special tool.
lib 09910-20116: Conrod holder
~ Primary drive gear nut: 100 N-m (10.0 kg-m, 72.Slb-ft)
NOTE:
This nut has left-hand thread nut.
