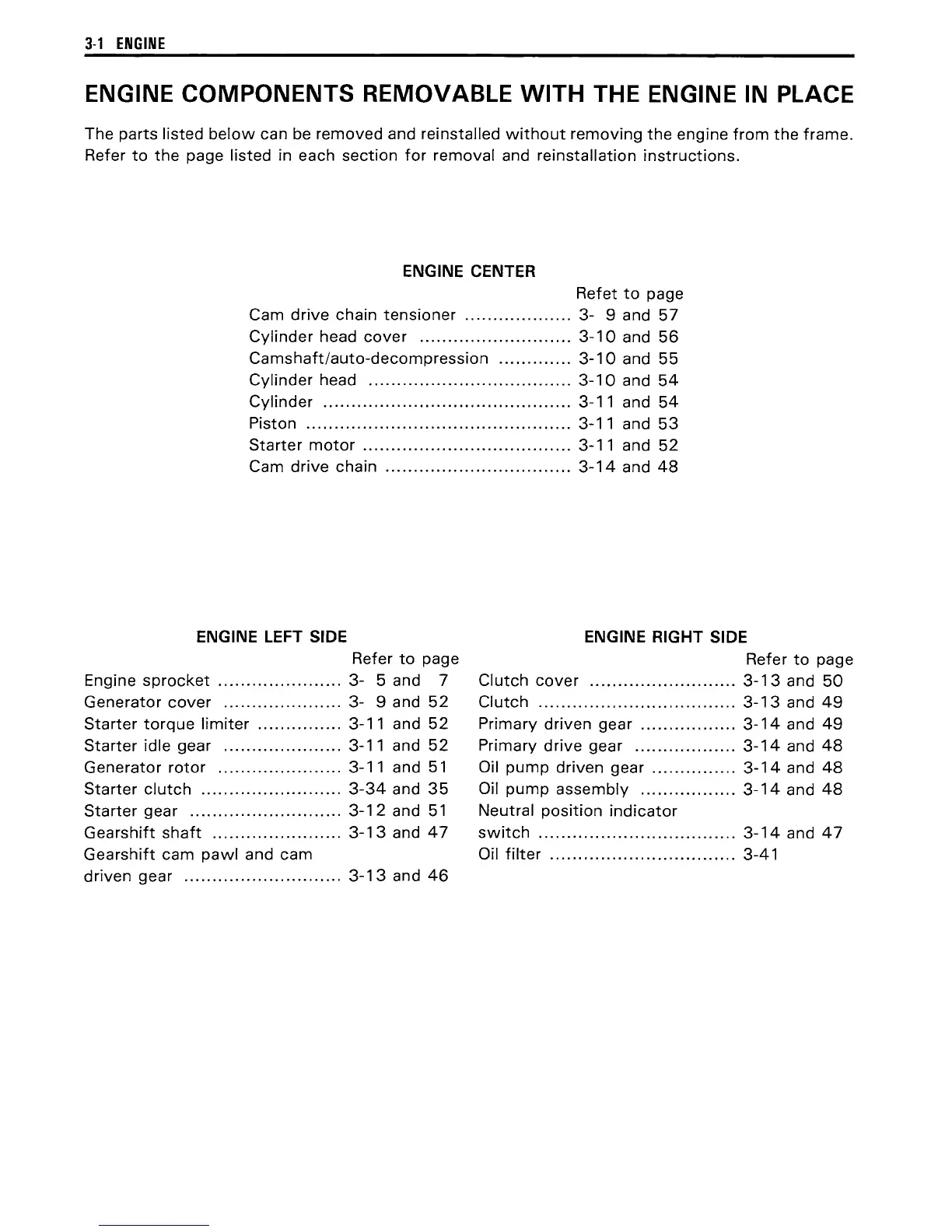

3-1 ENGINE
ENGINE COMPONENTS REMOVABLE WITH THE ENGINE IN PLACE
The parts listed below can be removed and reinstalled without removing the engine from the frame.
Refer
to the page listed in each section for removal and reinstallation instructions.
ENGINE CENTER
Refet
to page
Cam
drive chain tensioner ................... 3- 9 and 57
Cylinder head cover ........................... 3-10 and 56
Camshaft/auto-decompression ............. 3-10 and 55
Cylinder head .................................... 3-10 and 54
Cylinder ............................................ 3-11 and 54
Piston ............................................... 3-11 and 53
Starter motor ..................................... 3-11 and 52
Cam drive chain ................................. 3-14 and 48
ENGINE LEFT SIDE ENGINE RIGHT SIDE
Refer to page
Refer
to page
Engine
sprocket ...................... 3- 5 and 7
Clutch cover .......................... 3-13 and 50
Generator cover ..................... 3- 9 and 52 Clutch ................................... 3-13 and 49
Starter torque limiter ............... 3-11 and 52
Primary driven gear ................. 3-14 and 49
Starter idle gear ..................... 3-11 and 52
Primary drive gear .................. 3-14 and 48
Generator rotor ...................... 3-11 and 51 Oil pump driven gear ............... 3-14 and 48
Starter clutch ......................... 3-34 and 35 Oil pump assembly ................. 3-14 and 48
Starter gear ........................... 3-12 and 51 Neutral position indicator
Gearshift shaft ....................... 3-13 and 47 switch ................................... 3-14 and 47
Gearshift cam pawl and cam
Oil filter ................................. 3-41
driven gear ............................ 3-13 and 46
