Suzuki DR650SE User Manual

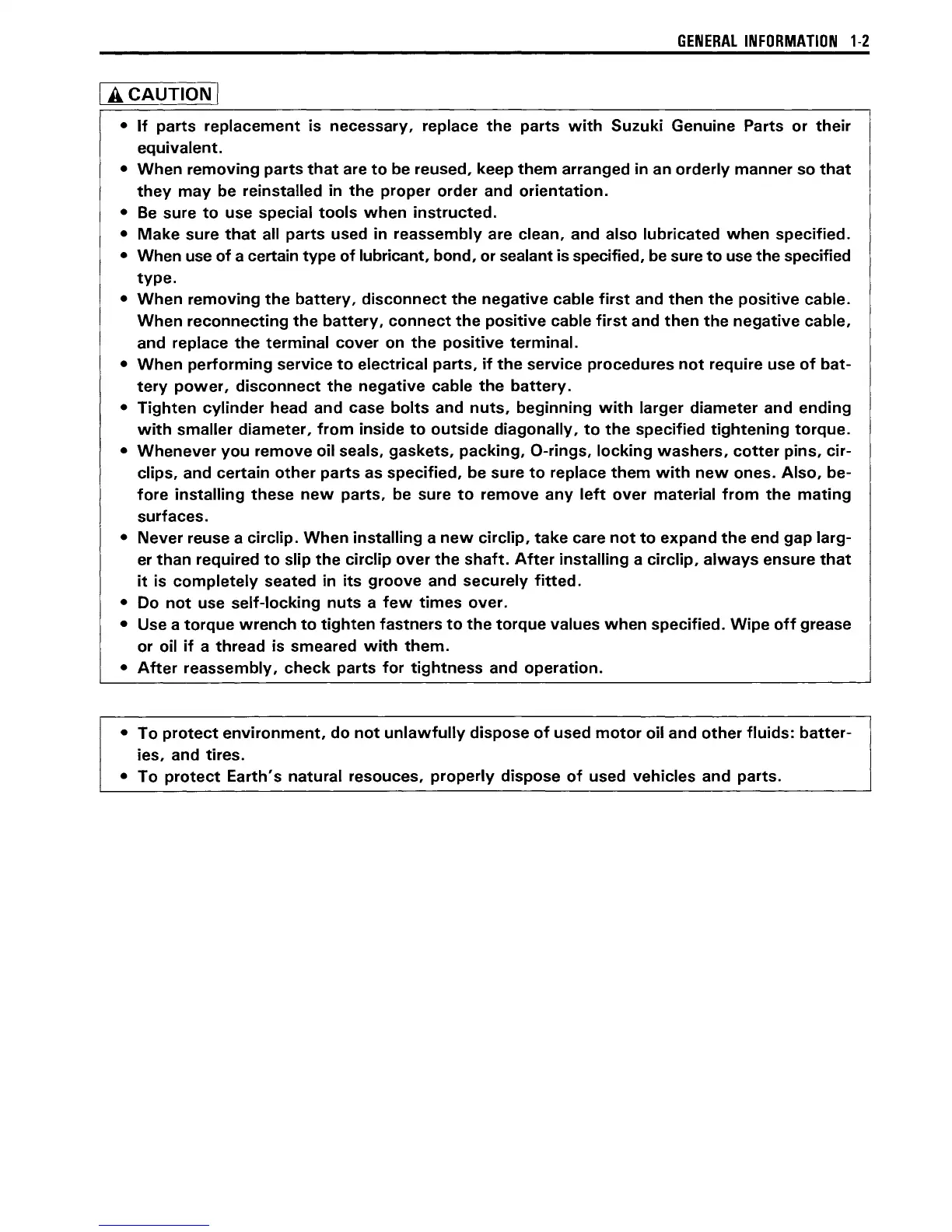

GENERAL INFORMATION 1·2
I A. CAUTION I
• If parts replacement is necessary, replace the parts with Suzuki Genuine Parts or their
equivalent.
• When removing parts that are to be reused, keep them arranged in an orderly manner so that
they may be reinstalled in the proper order and orientation.
• Be sure to use special tools when instructed.
• Make sure that all parts used in reassembly are clean, and also lubricated when specified.
• When use of a certain type of lubricant, bond, or sealant is specified, be sure to use the specified
type.
• When removing the battery, disconnect the negative cable first and then the positive cable.
When reconnecting the battery, connect the positive cable first and then the negative cable,
and replace
the terminal cover on the positive terminal.
• When performing service to electrical parts, if the service procedures not require use of bat-
tery power, disconnect the negative cable the battery.
• Tighten cylinder head and case bolts and nuts, beginning with larger diameter and ending
with smaller diameter, from inside to outside diagonally, to the specified tightening torque.
• Whenever you remove oil seals, gaskets, packing, O-rings, locking washers, cotter pins, cir-
clips, and
certain other parts as specified, be sure to replace them with new ones. Also, be-
fore installing these new parts, be sure to remove any left over material from the mating
surfaces.
• Never reuse a circlip. When installing a new circlip, take care not to expand the end gap larg-
er
than required to slip the circlip over the shaft. After installing a circlip, always ensure that
it is completely seated in its groove and securely fitted.
• Do not use self-locking nuts a few times over.
• Use a torque wrench to tighten fastners to the torque values when specified. Wipe off grease
or oil if a thread is smeared with them.
• After reassembly, check parts for tightness and operation.
• To protect environment, do not unlawfully dispose of used motor oil and other fluids: batter-
ies, and tires.
• To protect Earth's natural resouces, properly dispose of used vehicles and parts.

Suzuki DR650SE Specifications

General

Bore x Stroke	100.0 mm x 82.0 mm
Compression Ratio	9.5:1
Fuel System	Mikuni BST40 carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Tire	90/90-21
Rear Tire	120/90-17
Curb Weight	166 kg (366 lbs)
Starter	Electric
Engine Type	4-stroke, air-cooled, SOHC
Front Brakes	Disc brake
Rear Brakes	Disc brake
Fuel Tank Capacity	13.0 L (3.4 US gal.)
Overall Width	865 mm (34.1 in)
Ground Clearance	265 mm (10.4 in)
Seat Height	885 mm (34.8 in.)
Rear Suspension	Link type, coil spring, oil damped
