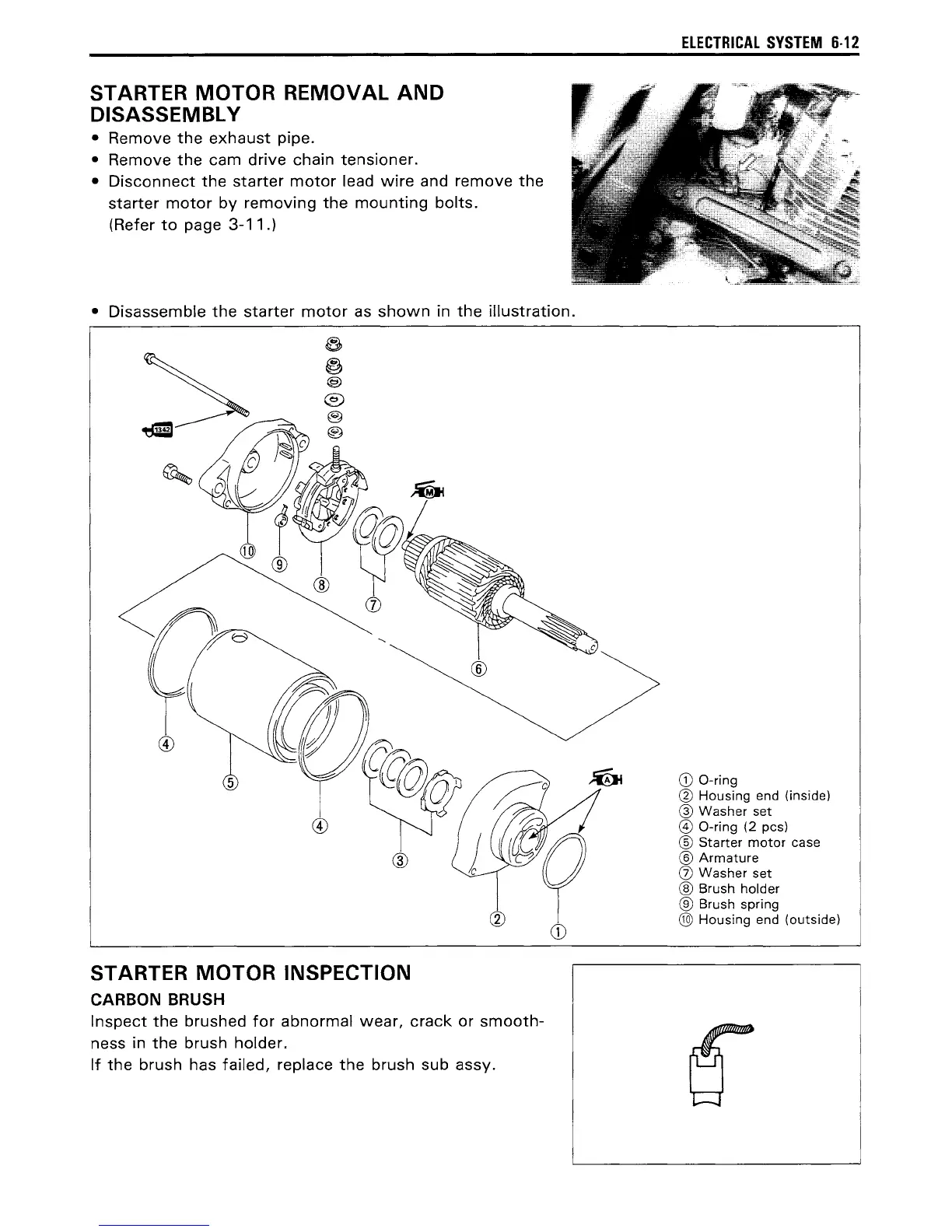

STARTER MOTOR REMOVAL AND
DISASSEMBL Y
• Remove the exhaust pipe.
• Remove the cam drive chain tensioner.
• Disconnect the starter motor lead wire and remove the
starter motor by removing the mounting bolts.
(Refer to page 3-11.)
• Disassemble the starter motor as shown in the illustration.
5
@
@
@
®
®
®
®
STARTER MOTOR INSPECTION
CARBON BRUSH
®
Inspect the brushed for abnormal wear, crack or smooth-
ness in the brush holder.
If the brush has failed, replace the brush sub assy.
ELECTRICAL SYSTEM 6·12
CD O-ring
@ Housing end (inside)
@ Washer set
@ O-ring (2 pes)
® Starter motor ease
® Armature
(j) Washer set
@ Brush holder
® Brush spring
@ Housing end (outside)
