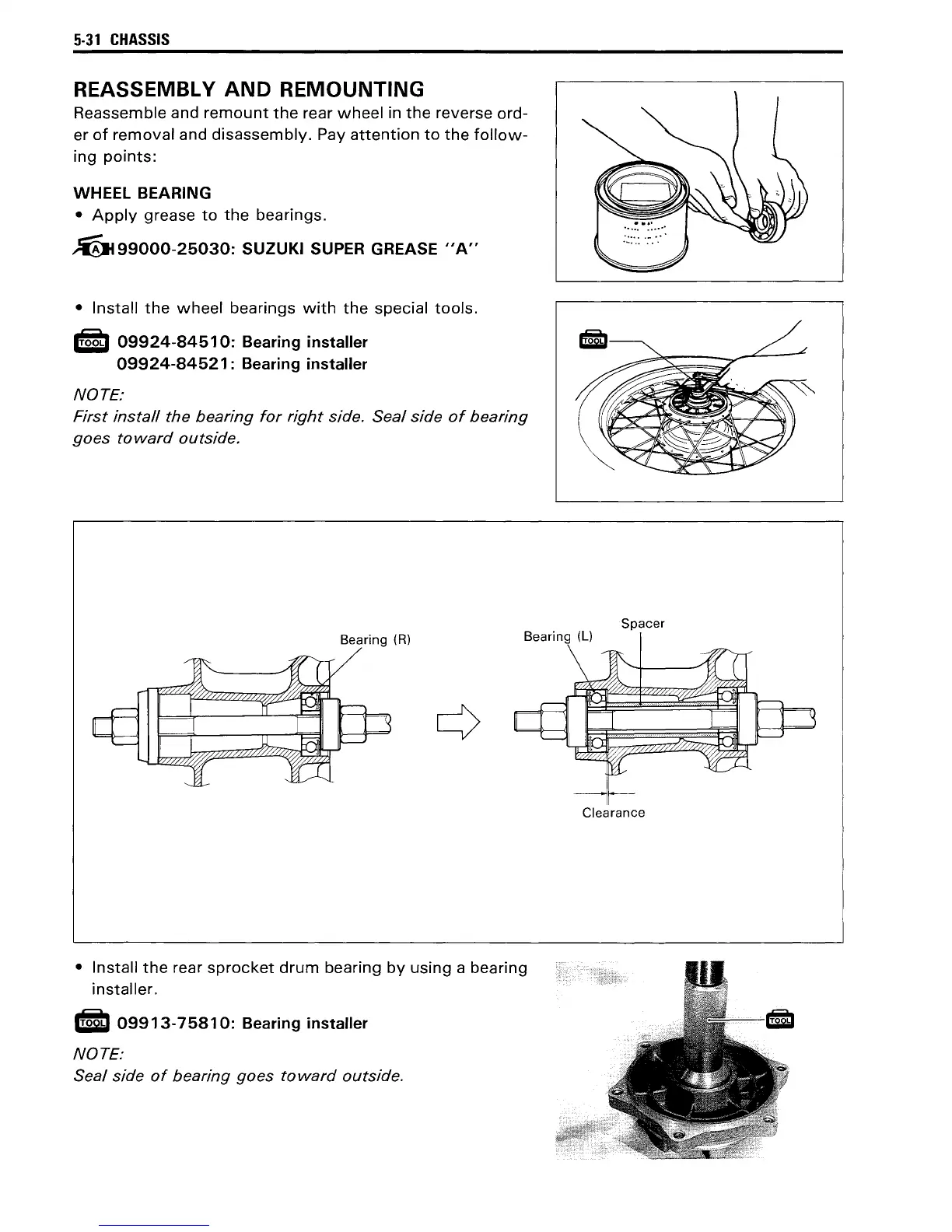

5-31 CHASSIS
REASSEMBLY AND REMOUNTING
Reassemble and remount the rear wheel in the reverse ord-
er of removal and disassembly. Pay attention to the follow-
ing points:
WHEEL BEARING
•
Apply grease to the bearings.
~99000-25030: SUZUKI SUPER GREASE "A"
• Install the wheel bearings with the special tools .
• MOl. 09924-84510: Bearing installer
09924-84521: Bearing installer
NOTE:
First install the bearing for right side. Seal side of bearing
goes toward outside.
Spacer
Bearing (R)
Bearing (L)
• Install the rear sprocket drum bearing by using a bearing
installer.
~ 09913-7581 0: Bearing installer
NOTE:
Seal side of bearing goes toward outside.
Clearance

Suzuki DR650SE Specifications

General

Bore x Stroke	100.0 mm x 82.0 mm
Compression Ratio	9.5:1
Fuel System	Mikuni BST40 carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Tire	90/90-21
Rear Tire	120/90-17
Curb Weight	166 kg (366 lbs)
Starter	Electric
Engine Type	4-stroke, air-cooled, SOHC
Front Brakes	Disc brake
Rear Brakes	Disc brake
Fuel Tank Capacity	13.0 L (3.4 US gal.)
Overall Width	865 mm (34.1 in)
Ground Clearance	265 mm (10.4 in)
Seat Height	885 mm (34.8 in.)
Rear Suspension	Link type, coil spring, oil damped
