Suzuki DR650SE User Manual

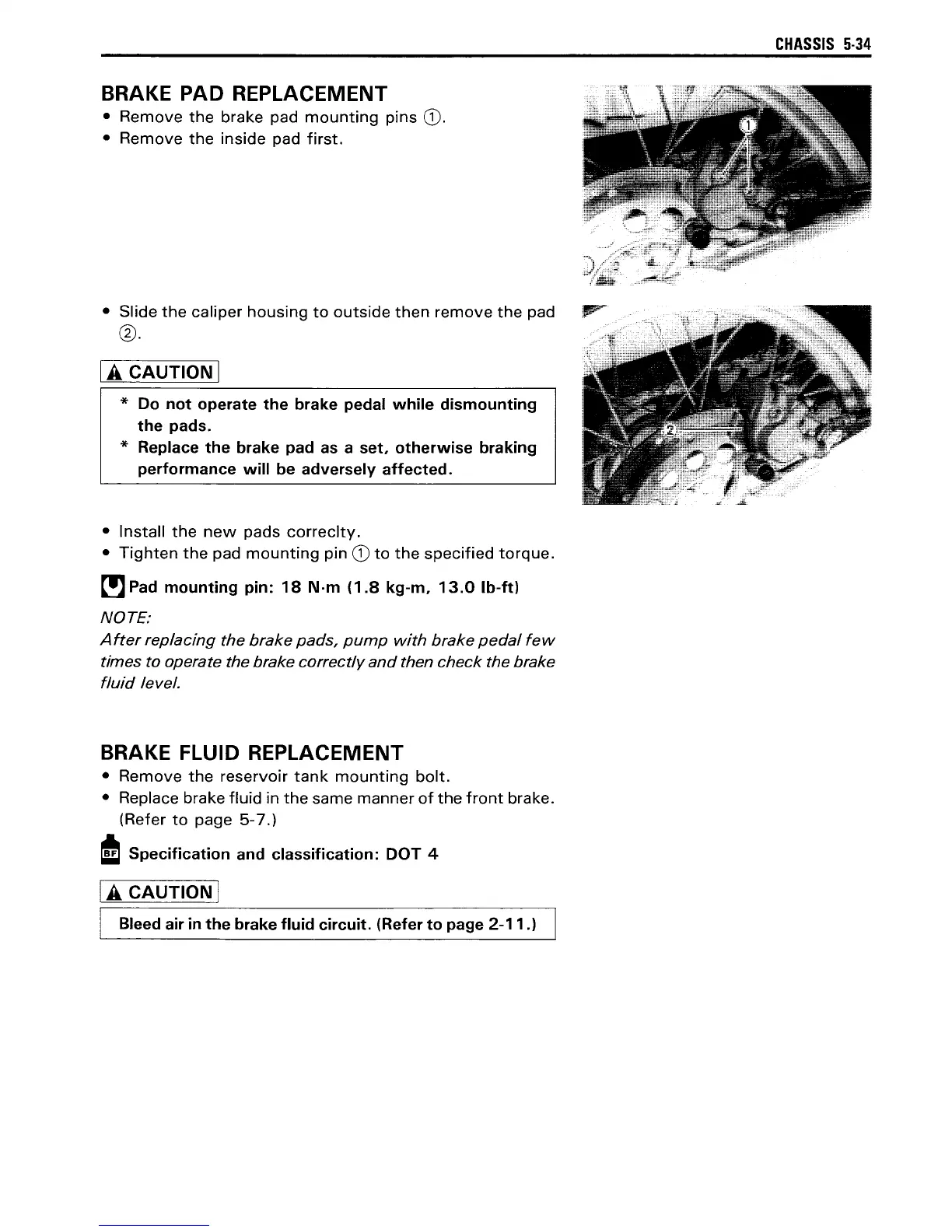

BRAKE PAD REPLACEMENT
• Remove the brake pad mounting pins CD.
• Remove the inside pad first.
• Slide the caliper housing to outside then remove the pad
@.
Ill. CAUTION I
* Do not operate the brake pedal while dismounting
the pads.
* Replace the brake pad as a set, otherwise braking
performance will be adversely affected.
• Install the new pads correclty.
• Tighten the pad mounting pin CD to the specified torque.
~ Pad mounting pin: 18 N·m (1.8 kg-m, 13.0 Ib-ft)
NOTE:
After replacing the brake pads, pump with brake pedal few
times to operate the brake correctly and then check the brake
fluid level.
BRAKE FLUID REPLACEMENT
• Remove the reservoir tank mounting bolt.
• Replace brake fluid in the same manner of the front brake.
(Refer
to page 5-7.)
ill Specification and classification: DOT 4
Ill. CAUTION I
Bleed air in the brake fluid circuit. (Refer to page 2-11.J
CHASSIS 5·34

Suzuki DR650SE Specifications

General

Bore x Stroke	100.0 mm x 82.0 mm
Compression Ratio	9.5:1
Fuel System	Mikuni BST40 carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Tire	90/90-21
Rear Tire	120/90-17
Curb Weight	166 kg (366 lbs)
Starter	Electric
Engine Type	4-stroke, air-cooled, SOHC
Front Brakes	Disc brake
Rear Brakes	Disc brake
Fuel Tank Capacity	13.0 L (3.4 US gal.)
Overall Width	865 mm (34.1 in)
Ground Clearance	265 mm (10.4 in)
Seat Height	885 mm (34.8 in.)
Rear Suspension	Link type, coil spring, oil damped
