Suzuki DR650SE User Manual

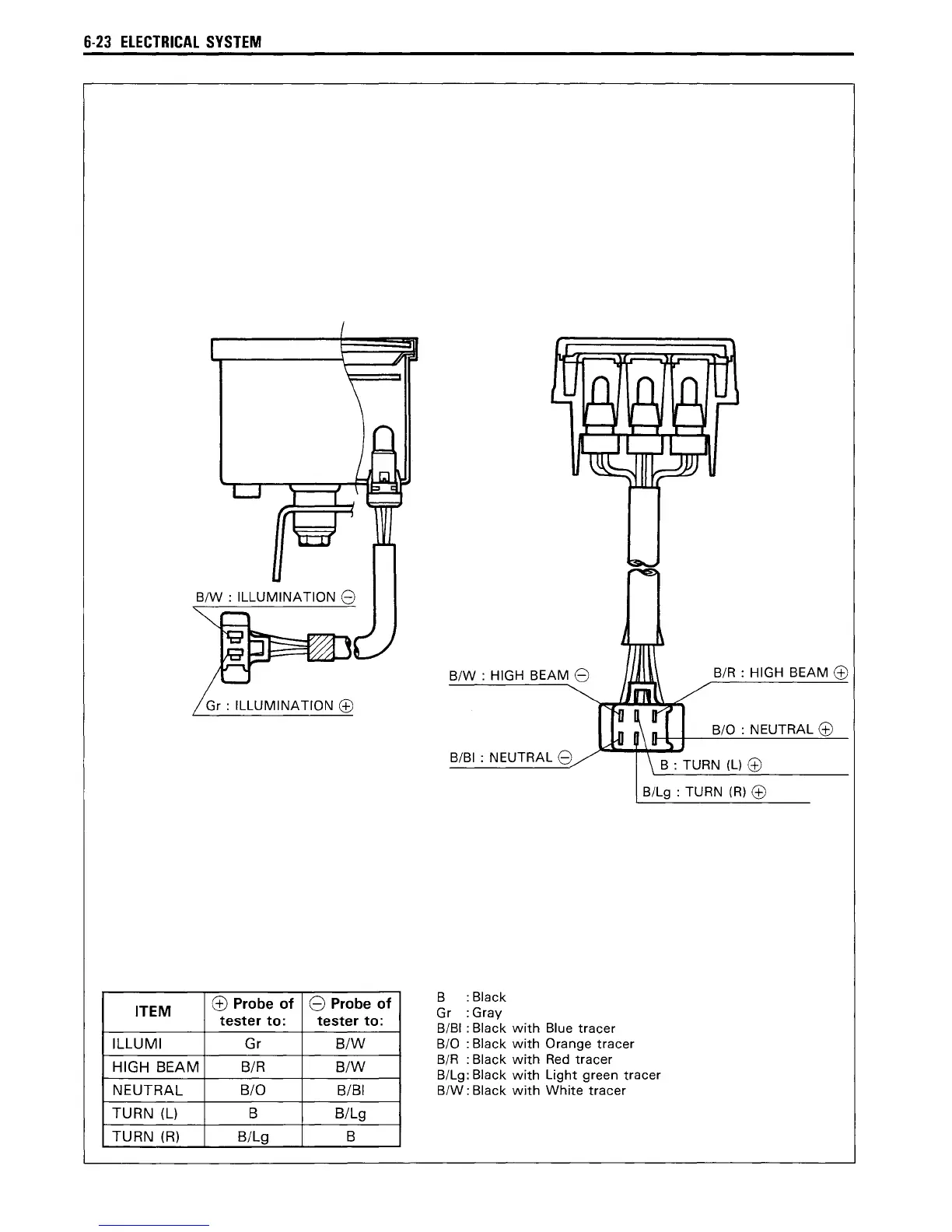

6-23 ELECTRICAL SYSTEM
B/W: ILLUMINATION 8
Gr : ILLUMINATION @
ITEM
c±l Probe of 8 Probe of
tester to: tester to:
ILLUMI Gr B/W
HIGH BEAM B/R B/W
NEUTRAL
B/O
BIB I
TURN (L)
B B/Lg
TURN
(R)
B/Lg
B
B/W : HIGH BEAM 8
BIR : HIGH BEAM @
BIO : NEUTRAL @
BIBI : NEUTRAL 8
BILg : TURN (R) @
B : Black
Gr : Gray
BIBI : Black with Blue tracer
BIO : Black with Orange tracer
BIR : Black with Red tracer
B/Lg: Black with Light green tracer
B/W : Black with White tracer

Suzuki DR650SE Specifications

General

Bore x Stroke	100.0 mm x 82.0 mm
Compression Ratio	9.5:1
Fuel System	Mikuni BST40 carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Tire	90/90-21
Rear Tire	120/90-17
Curb Weight	166 kg (366 lbs)
Starter	Electric
Engine Type	4-stroke, air-cooled, SOHC
Front Brakes	Disc brake
Rear Brakes	Disc brake
Fuel Tank Capacity	13.0 L (3.4 US gal.)
Overall Width	865 mm (34.1 in)
Ground Clearance	265 mm (10.4 in)
Seat Height	885 mm (34.8 in.)
Rear Suspension	Link type, coil spring, oil damped
