Suzuki DR650SE User Manual

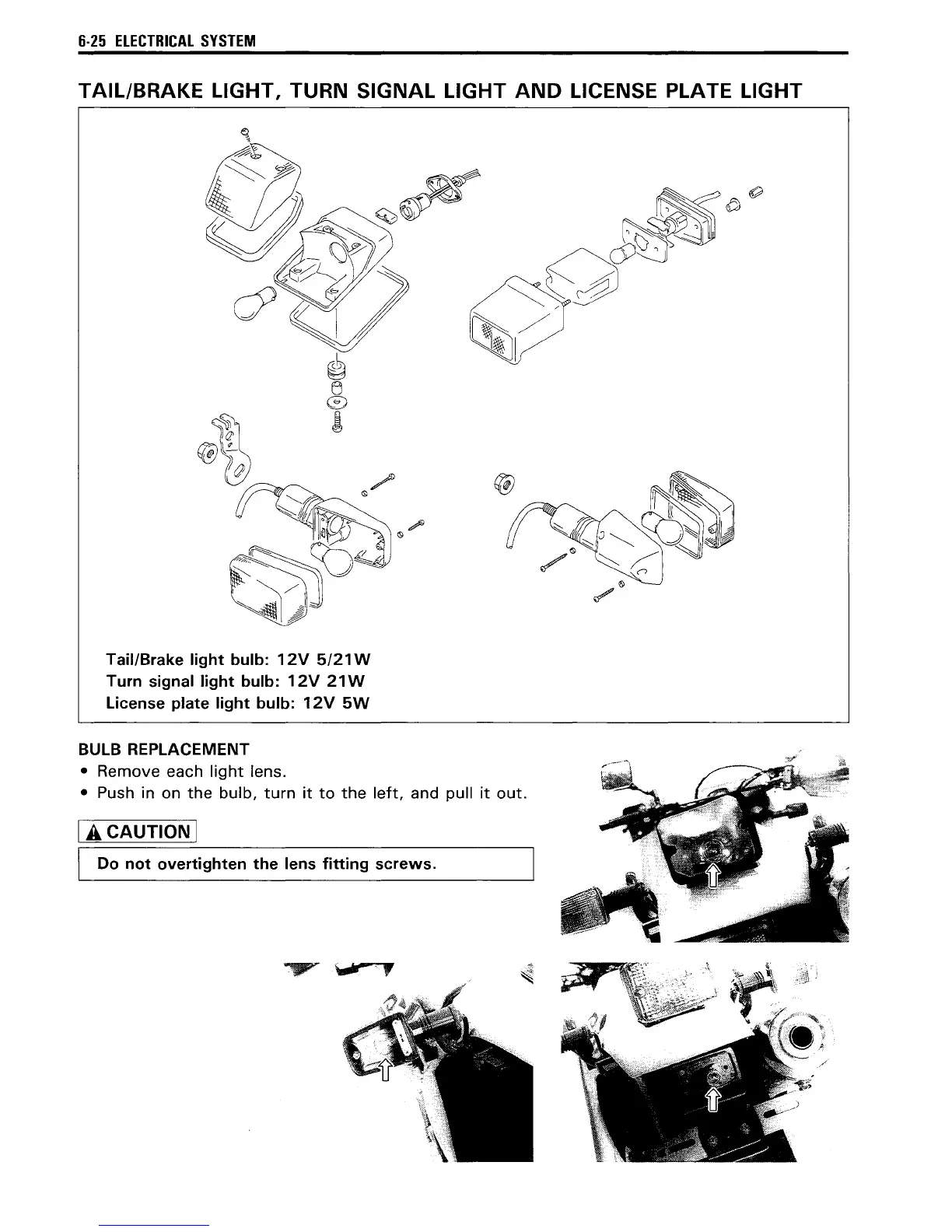

6·25 ELECTRICAL SYSTEM
TAIL/BRAKE LIGHT, TURN SIGNAL LIGHT AND LICENSE PLATE LIGHT
Tail/Brake light bulb: 12V 5/21W
Turn signal light bulb: 1 2V 21 W
License plate light bulb: 12V 5W
BULB REPLACEMENT
• Remove each light lens.
• Push
in on the bulb, turn it to the left, and pull it out.
I A CAUTION I
Do not overtighten the lens fitting screws.

Suzuki DR650SE Specifications

General

Bore x Stroke	100.0 mm x 82.0 mm
Compression Ratio	9.5:1
Fuel System	Mikuni BST40 carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Tire	90/90-21
Rear Tire	120/90-17
Curb Weight	166 kg (366 lbs)
Starter	Electric
Engine Type	4-stroke, air-cooled, SOHC
Front Brakes	Disc brake
Rear Brakes	Disc brake
Fuel Tank Capacity	13.0 L (3.4 US gal.)
Overall Width	865 mm (34.1 in)
Ground Clearance	265 mm (10.4 in)
Seat Height	885 mm (34.8 in.)
Rear Suspension	Link type, coil spring, oil damped
