Suzuki DR650SE User Manual

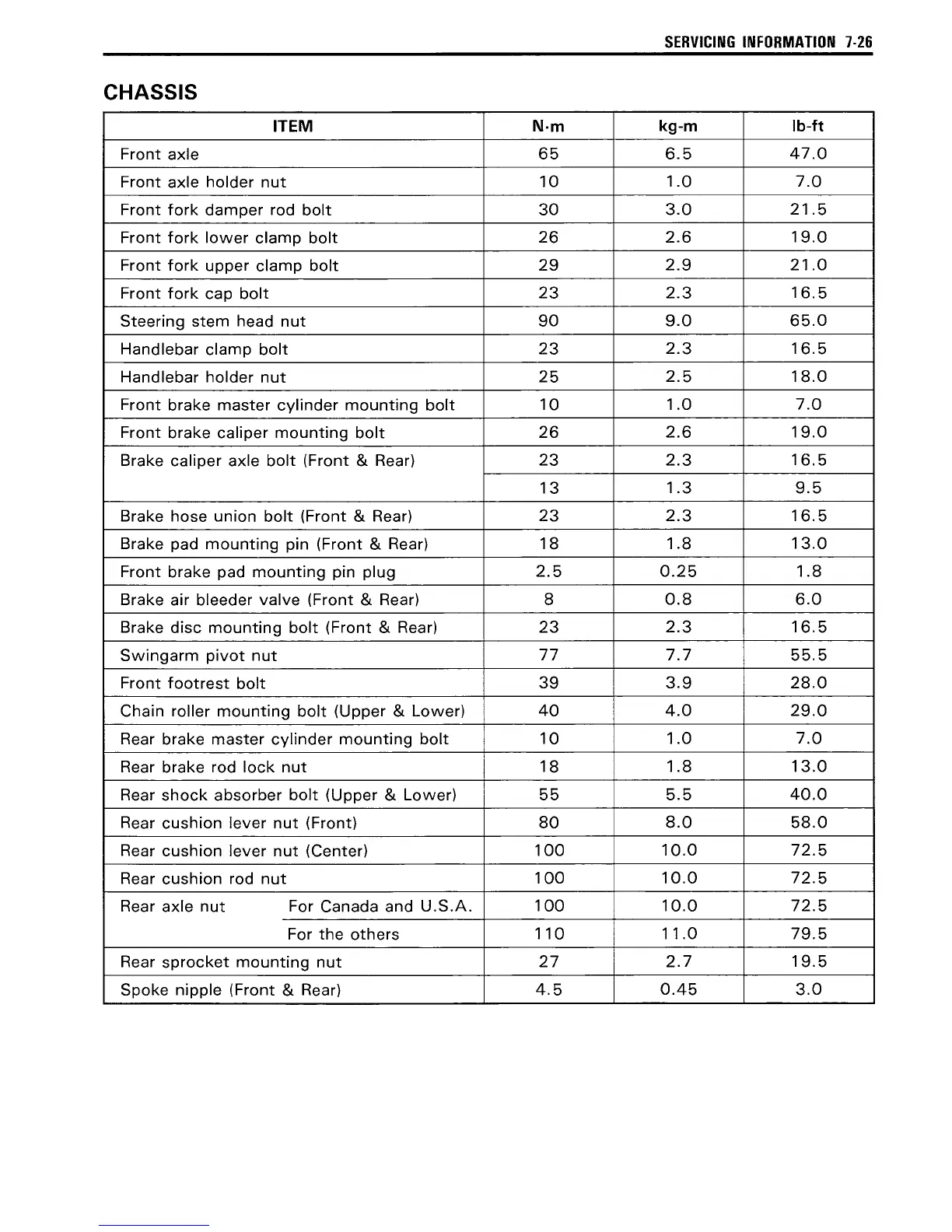

SERVICING INFORMATION 7·26
CHASSIS
ITEM N·m
kg-m Ib-ft
Front axle 65
6.5 47.0
Front axle holder nut
10 1.0
7.0
Front fork damper rod bolt
30
3.0 21.5
Front fork lower clamp bolt
26
2.6
19.0
Front fork upper clamp bolt 29
2.9
21.0
Front fork cap bolt
23 2.3 16.5
Steering stem head nut 90
9.0 65.0
Handlebar clamp bolt
23
2.3
16.5
Handlebar holder nut 25
2.5
18.0
Front brake master cylinder mounting bolt
10 1.0
7.0
Front brake caliper mounting bolt 26
2.6
19.0
Brake caliper axle bolt (Front & Rear)
23 2.3 16.5
13
1.3
9.5
Brake hose union bolt (Front & Rear) 23
2.3
16.5
Brake pad mounting pin (Front & Rear) 18 1.8
13.0
Front brake pad mounting pin plug 2.5
0.25 1.8
Brake air bleeder valve (Front & Rear) 8
0.8
6.0
Brake disc mounting bolt (Front & Rear) 23
2.3
16.5
Swingarm pivot nut
77
7.7 55.5
Front footrest bolt 39
3.9 28.0
Chain roller mounting bolt (Upper & Lower)
40 4.0 29.0
Rear brake master cylinder mounting bolt
10
1.0 7.0
Rear brake rod lock nut 18
1.8
13.0
Rear shock absorber bolt (Upper & Lower)
55
5.5
40.0
Rear cushion lever nut (Front) 80
8.0 58.0
Rear cushion lever nut (Center)
100 10.0 72.5
Rear cushion rod nut 100
10.0 72.5
Rear axle nut
For Canada and U.S.A. 100 10.0 72.5
For the others
110 11.0 79.5
Rear sprocket mounting nut
27 2.7 19.5
Spoke nipple (Front & Rear) 4.5
0.45 3.0

Suzuki DR650SE Specifications

General

Bore x Stroke	100.0 mm x 82.0 mm
Compression Ratio	9.5:1
Fuel System	Mikuni BST40 carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Tire	90/90-21
Rear Tire	120/90-17
Curb Weight	166 kg (366 lbs)
Starter	Electric
Engine Type	4-stroke, air-cooled, SOHC
Front Brakes	Disc brake
Rear Brakes	Disc brake
Fuel Tank Capacity	13.0 L (3.4 US gal.)
Overall Width	865 mm (34.1 in)
Ground Clearance	265 mm (10.4 in)
Seat Height	885 mm (34.8 in.)
Rear Suspension	Link type, coil spring, oil damped
