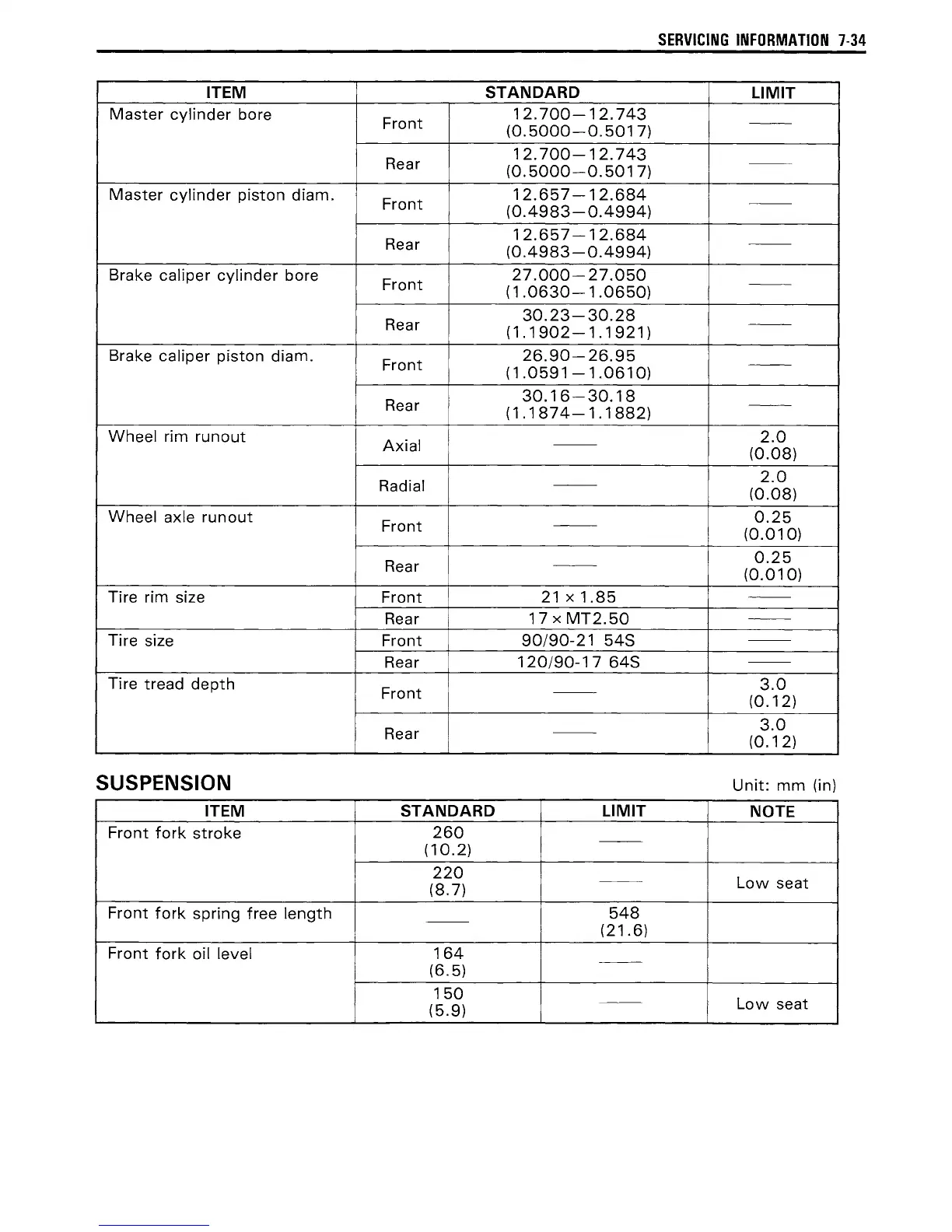

Suzuki DR650SE User Manual

SERVICING INFORMATION 7-34
ITEM STANDARD
LIMIT
Master cylinder bore
Front
12.700-12.743
(0.5000-0.5017)
--
Rear
12.700-12.743
(0.5000-0.5017)
--
Master cylinder piston diam.
Front
12.657 -12.684
(0.4983-0.4994)
~-
Rear
12.657 -12.684
(0.4983-0.4994)
--
Brake caliper cylinder bore
Front
27.000-27.050
( 1.0630-1.0650)
--
Rear
30.23-30.28
(1.1902-1.1921)
--
Brake caliper piston diam.
Front
26.90-26.95
(1.0591-1.0610)
~-
Rear
30.16-30.18
(1.1874-1.1882)
~-
Wheel rim runout
Axial
2.0
--
(0.08)
Radial
--
2.0
(0.08)
Wheel axle runout
Front
--
0.25
(0.010)
Rear
--
0.25
(0.010)
Tire rim size Front
21x1.85
--
Rear
17 x MT2.50
--
Tire size
Front 90/90-21 545
--
Rear 1 20/90-1 7 645
~-
Tire tread depth
Front
--
3.0
(0.12)
Rear
--
3.0
(0.12)
SUSPENSION Unit: mm (in)
ITEM STANDARD
LIMIT
NOTE
Front fork stroke 260
--
(10.2)
220
Low seat
(8.7)
--
Front fork spring free length 548
~-
(21.6)
Front fork oil level 164
--
(6.5)
150
Low seat
(5.9)
~-

Suzuki DR650SE Specifications

General

Bore x Stroke	100.0 mm x 82.0 mm
Compression Ratio	9.5:1
Fuel System	Mikuni BST40 carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Tire	90/90-21
Rear Tire	120/90-17
Curb Weight	166 kg (366 lbs)
Starter	Electric
Engine Type	4-stroke, air-cooled, SOHC
Front Brakes	Disc brake
Rear Brakes	Disc brake
Fuel Tank Capacity	13.0 L (3.4 US gal.)
Overall Width	865 mm (34.1 in)
Ground Clearance	265 mm (10.4 in)
Seat Height	885 mm (34.8 in.)
Rear Suspension	Link type, coil spring, oil damped
