430 Fault Finding of Control Head with 1- 2- or 3-Digit Display TM8100/TM8200 Service Manual
© Tait Electronics Limited June 2006

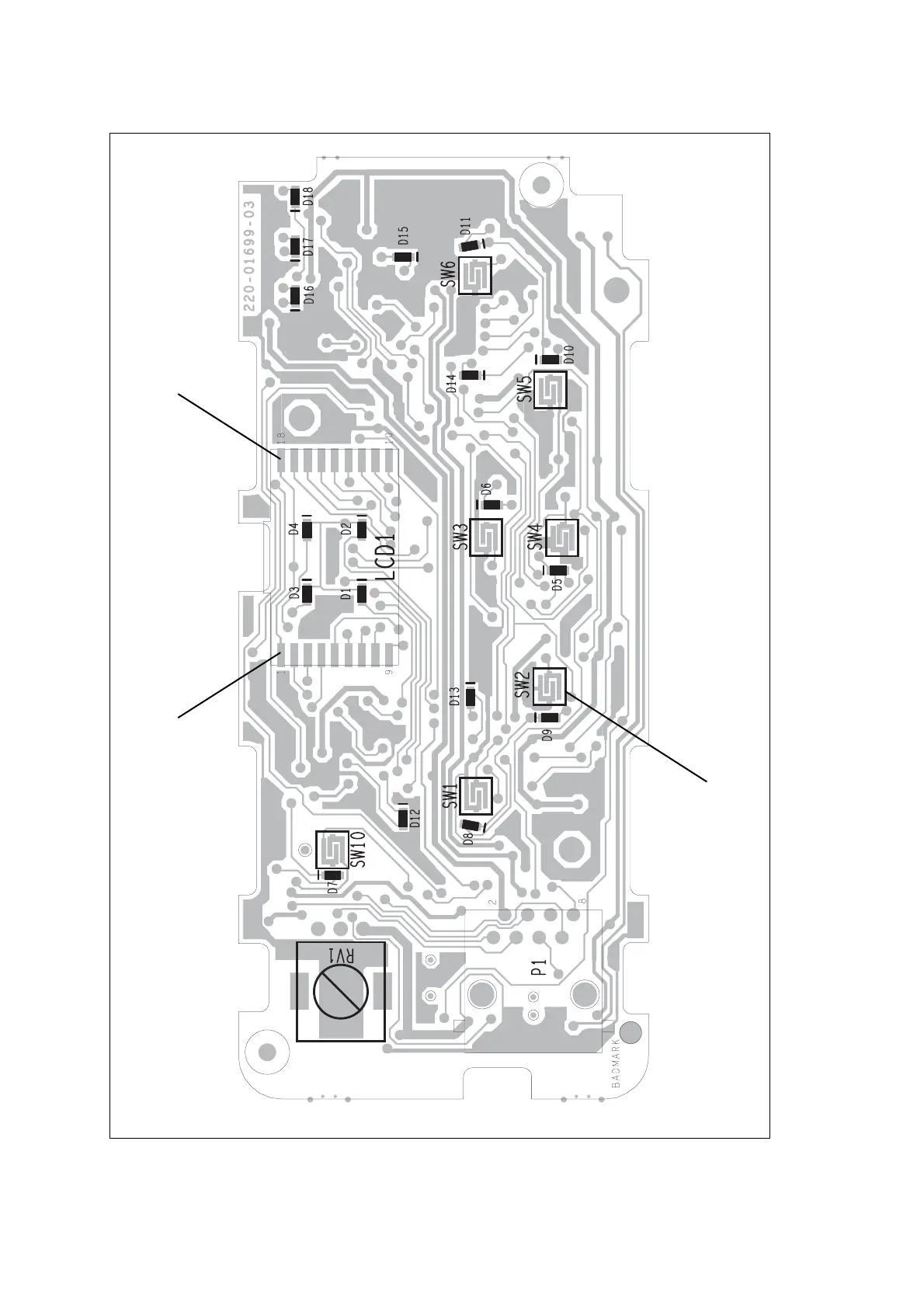

Figure 15.1 Top side of the control-head board (2-digit control head shown)
pads for LCDpads for LCD
pads for keys
