Tait TM8115 Service Manual

TM8100/TM8200 Service Manual Spare Parts 437
© Tait Electronics Limited June 2006
16 Spare Parts
Introduction This section lists all serviceable parts (except PCB components) of the
■ radio body (Figure 16.1, Figure 16.2, and Table 16.1)
■ control head with graphical display (Figure 16.3 and Table 16.2)
■ control heads with 1-, 2- or 3-digit display (Figure 16.4, Table 16.3 and
Table 16.4)
■ RJ45 control head (Figure 16.5 and Table 16.5).

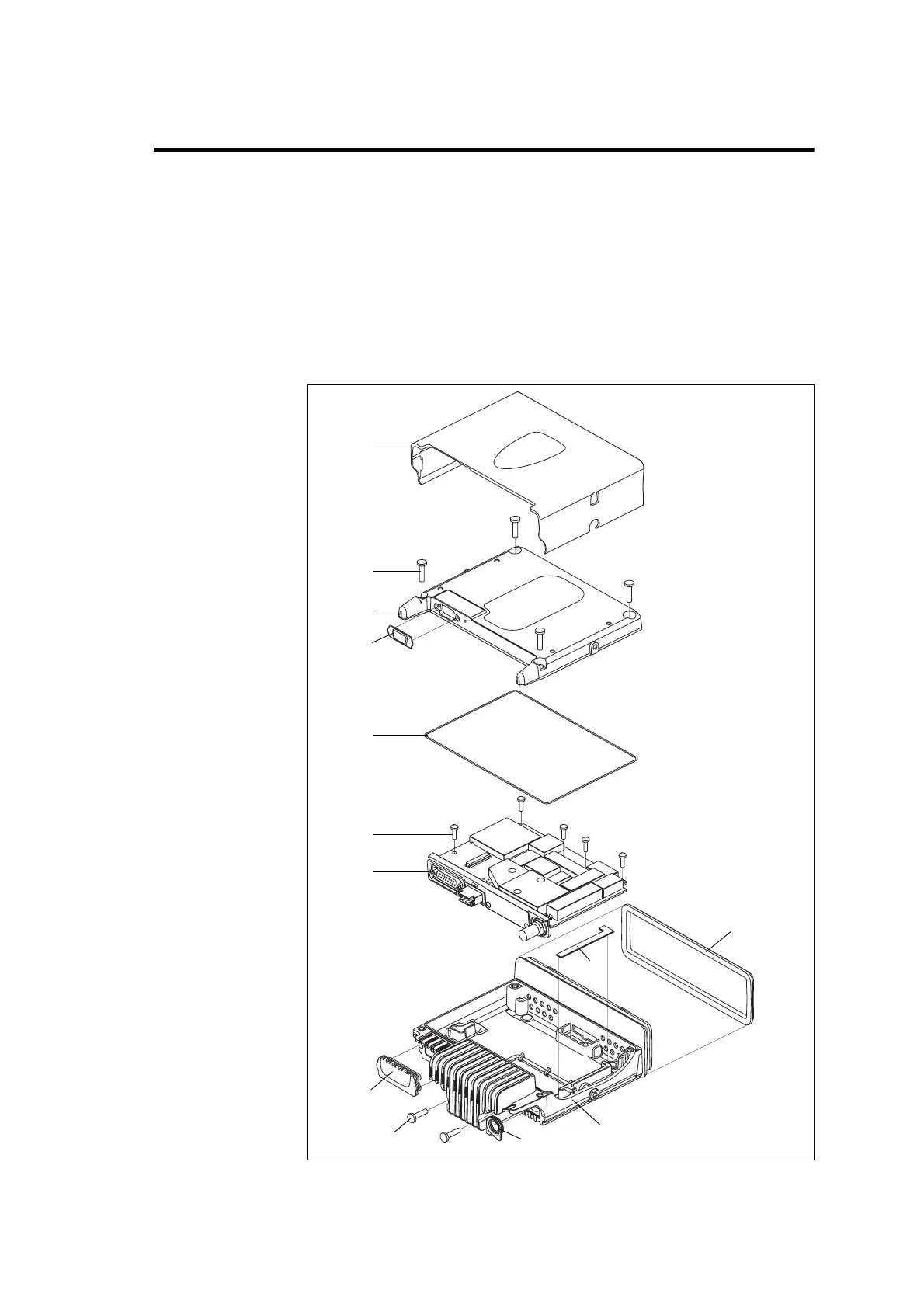

Figure 16.1 Spare parts of the radio body (sheet 1 of 2)
B
C
x4
D
E
x2
G
x5
F
I
C
1)
1!
1@
J
H
