Tait TM8115 Service Manual

TM8100/TM8200 Service Manual Installing a Remote Kit 517
© Tait Electronics Limited June 2006
25.2 Circuit Description

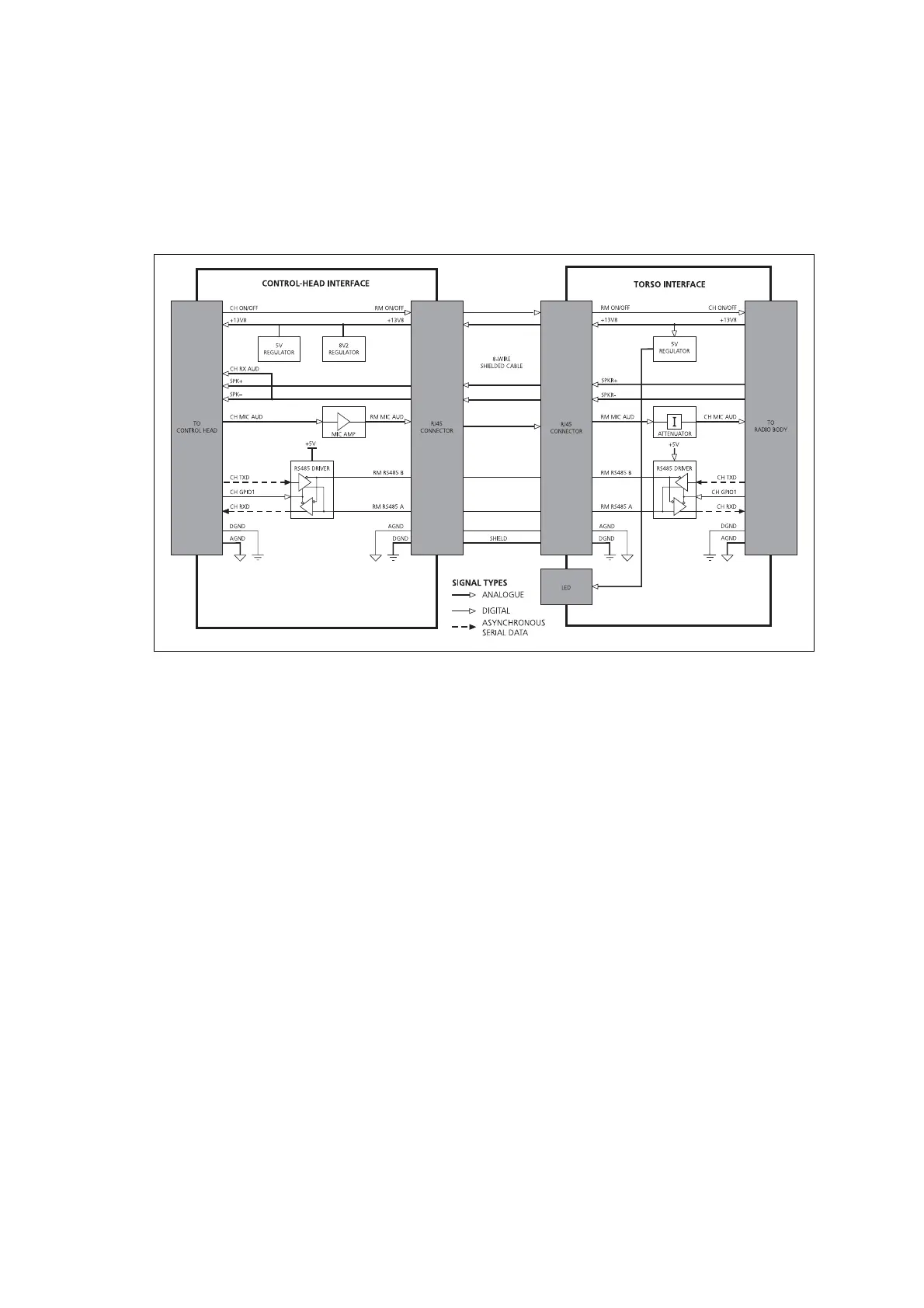

Figure 25.3 shows a block diagram of the remote control-head installation.
The control heads contain circuit boards with RS-485 driver components
and an audio amplifier or attenuator.
Figure 25.3 Block diagram of remote control-head installation
