4 – Mixer configuration and settings

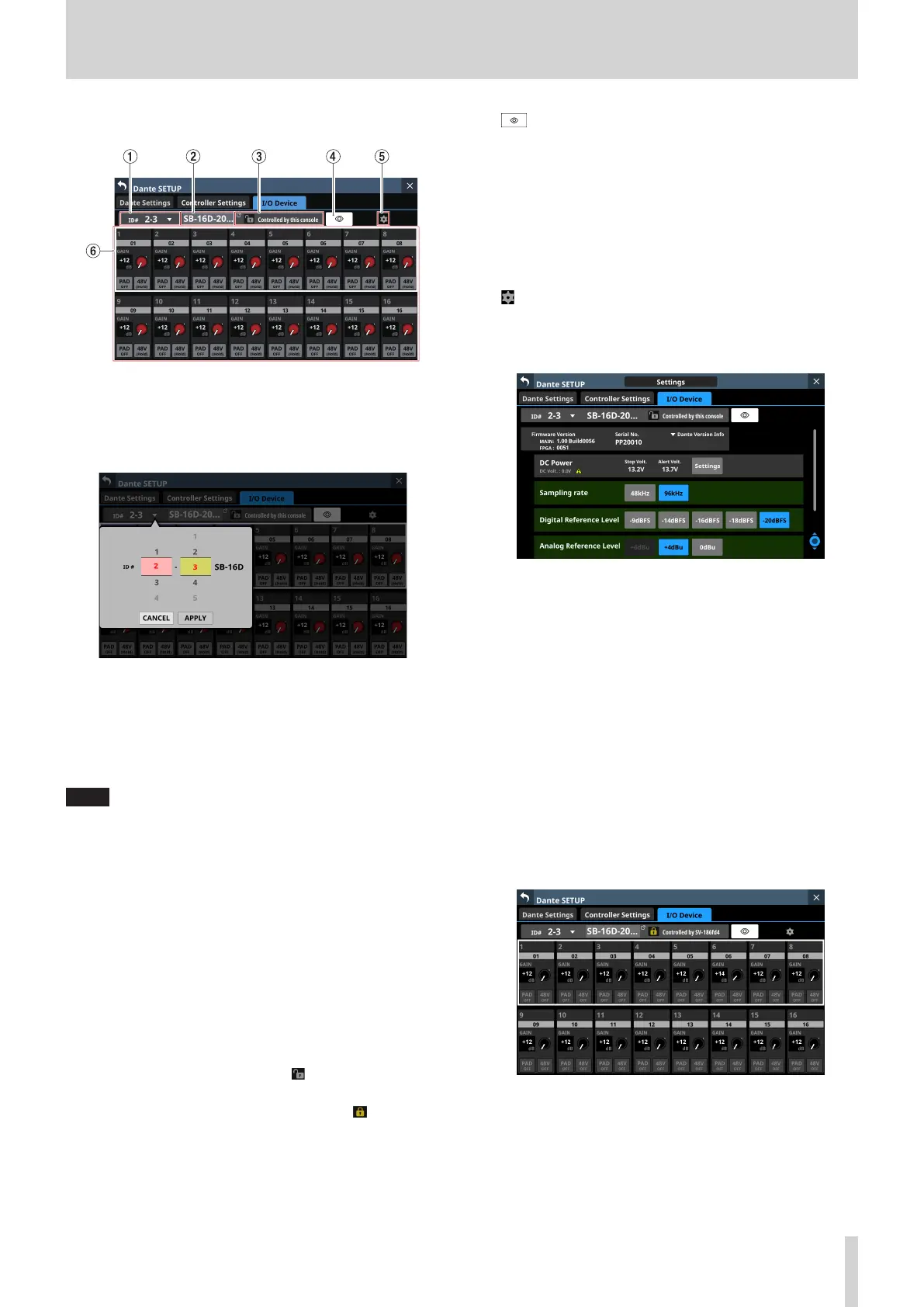

Control screen operations
1 ID
o This shows the current ID.
o Tap this area to open a window where the ID can be
changed.
Swipe the options up and down to change the ID.
Selections can also be changed by turning the LCD Knobs
2 and 3, which are lit pink and yellow.
i Tap the APPLY button to change the selected ID.
i Tap the CANCEL button to close the window without
changing the ID.
NOTE
i If an ID that is already being used on the Dante network is
selected, that ID will be red and the APPLY button will appear
gray, showing the setting cannot be made.
i Changing the ID when mounted could cause it to become
unmounted.
2 Device name
o This shows the module name of the SB-16D Dante device.
o Tap this area to enable changing the module name of the
Dante device.
o If the device is virtually mounted, “---” will appear and
tapping will not enable changing.
3 Control privilege status
o This shows the control privilege status.
o If this unit has control privileges, and “Controlled by this
console” will be shown.
o If this unit does not have control privileges, and
“Controlled by [Dante device module name of the
Sonicview that has control privileges]” will be shown.
o In the following cases, nothing will be shown.
i If no device has control privileges for that SB-16D
i If the device is virtually mounted
4 button
o Tap this button to send an Identify command to the SB-
16D. The SB-16D that receives the Identify command will
respond by blinking its SIG and STATUS indicators, making
it possible to confirm the corresponding device. Tapping
this button again when an SB-16D is responding will send
it another Identify command, which will cause it to stop
responding.
o This button is not shown for devices that are virtually
mounted.
5 button
Tap this button to open the Settings Screen where settings
other than those related to preamp operation can be
checked.
6 Channel modules
o Work with channel names, GAIN knobs, PAD buttons and
48V buttons in this area.
i Tapping a channel name will open the RENAME screen
where it can be edited.
i GAIN levels of the channels selected by the frame can
be adjusted using the 1–8 LCD knobs that are lit red.
i Tap a PAD button to turn the -20dB pad on/off. When
this button is on, it will appear highlighted.
i Touch and hold the 48V button to turn phantom power
(+48V) on/off. When phantom power is on, the button
will be highlighted.
o GAIN knobs, PAD buttons and 48V buttons can also be
used with virtually mounted devices.
o If another Sonicview has control privileges for the SB-16D
shown, it will appear as follows and cannot be controlled.
Example of appearance when control privileges are not held
TASCAM Sonicview 16/Sonicview 24 V1.1.0 71
