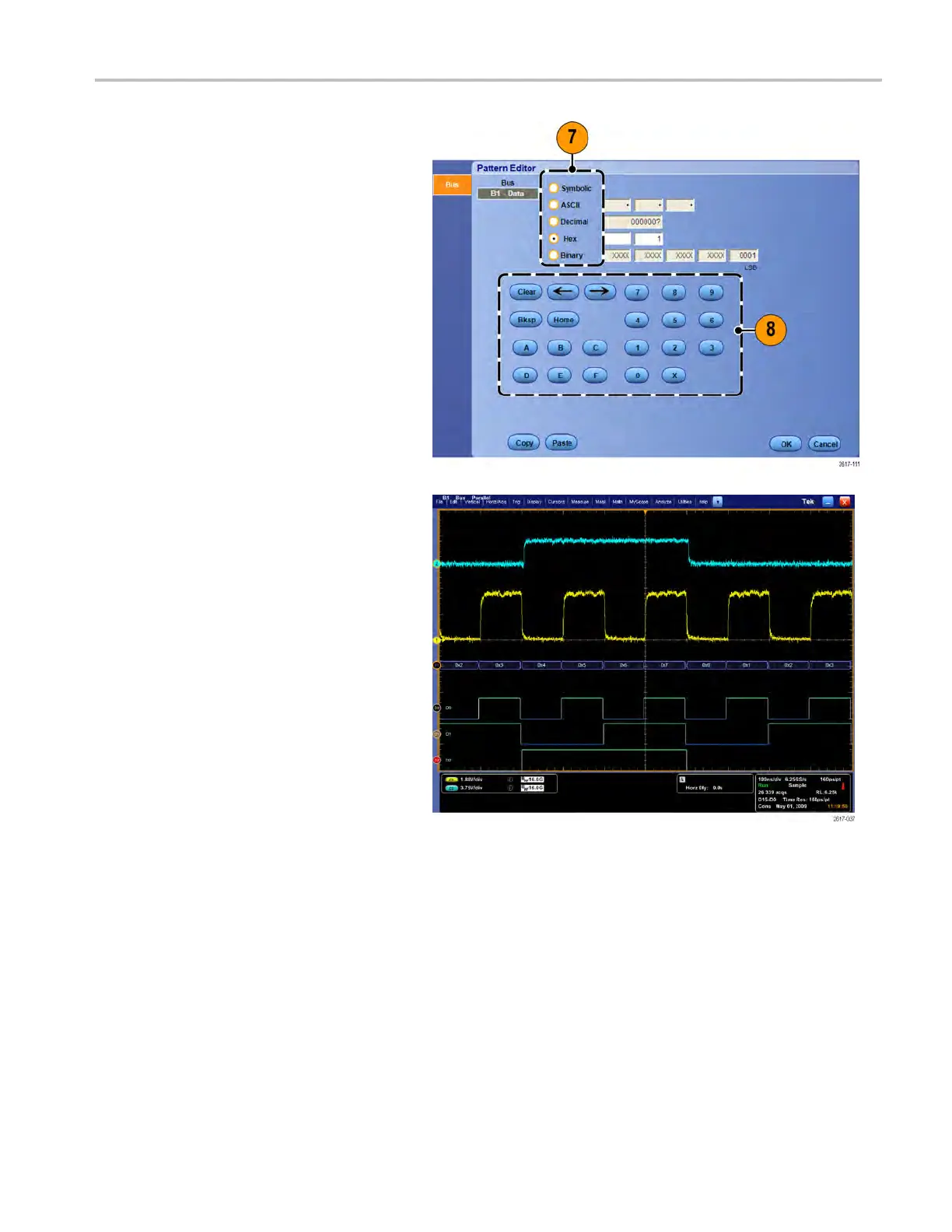

Pinpoint
trigge
rs
5.
Select
the
data
format.
6.
Set
the
pattern
to
trigger
on
using
the
keypad.
7.
Analyze
your
waveforms.
MSO/DPO70000DX,
MSO/DPO70000C,
DP
O7000C,
and
MS
O/DPO5000
Series
U
ser
M
anual
79
100
102
Table of Contents
Table of Contents
7
Important Safety Information
11
General Safety Summary
11
Service Safety Summary
13
Terms in this Manual
14
Symbols and Terms on the Product
14
Compliance Information
15
EMC Compliance
15
Safety Compliance
16
Environmental Considerations
19
Preface
20
Key Features
20
Documentation
22
Conventions Used in this Manual
22
Install Your Instrument
23
Standard Accessories
23
Operating Requirements
25
Preventing ESD
28
Powering on the Instrument
29
Powering off the Instrument
31
Removing the Power
32
Securing the Oscilloscope
33
Connecting to a Network
33
Adding a Second Monitor
34
Operating System Restore
37
Installing the MSO5000 and DPO5000 Hard Drive
38
Getting Acquainted with Your Instrument
39
Front Panel
39
Side and Rear Panels
42
Interface and Display
45
Control Panel
47
Accessing Online Help
50
Accessing Menus and Control Windows
51
Inspect Your Instrument
52
Verify Internal Diagnostics Pass
52
Acquisition
53
Signal Path Compensation
53
Setting up Analog Signal Input
55
Using Default Setup
57
Using Autoset
58
Probe Compensation and Deskew
59
Acquisition Concepts
59
How the Acquisition Modes Work
62
Changing the Acquisition Mode
63
Starting and Stopping an Acquisition
64
Selecting the Horizontal Mode
64
Using Fastacq
67
Using DSP Enhanced Bandwidth
68
Setting the Termination Voltage
70
Using Roll Mode
71
Setting up Digital Signal Input
72
Setting up Digital Channels
73
Setting up a Bus
75
When and Why to Turn on Magnivu
80
Using Magnivu
80
Viewing Analog Characteristics of Digital Waveforms
81
Using Fastframe Mode
83
Using Fastframe Frame Finder
86
Pinpoint Triggers
88
Triggering Concepts
88
Choosing a Trigger Type
90
Trigger Selections
92
Checking Trigger Status
94
Using a (Main) and B (Delayed) Triggers
95
Triggering with B-Event Scan
98
Triggering on a Parallel Bus
100
Triggering on a Serial Bus
102
Triggering Using Visual Triggers (Visual Triggering)
103
Setting up Action on Event
105
Sending E-Mail on Trigger
106
Setting up E-Mail on Event
107
Using Horizontal Delay
109
Display a Waveform
110
Setting the Display Style
110
Setting the Display Persistence
111
Setting the Display Format
112
Selecting the Waveform Interpolation
113
Adding Screen Text
114
Setting the Graticule Style
115
Setting the Trigger Level Marker
116
Displaying the Date and Time
116
Using the Color Palettes
117
Setting Reference Waveform Colors
118
Setting Math Waveform Colors
118
Using Multiview Zoom
118
Zooming in Multiple Areas
120
Lock and Scroll Zoomed Waveforms
122
Hide Waveforms in the Zoomed Window
123
Using Wave Inspector to Manage Long Record Length Waveforms
124
Searching and Marking Waveforms
126
Using a Visual Search
134
Analyzing Waveforms
135
Taking Automatic Measurements
135
Automated Measurement Selections
137
Customizing an Automatic Measurement
140
Taking Cursor Measurements
144
Setting up a Histogram
146
Using Math Waveforms
148
Using Spectral Analysis
151
Using the Serial Error Detector
154
Using Mask Testing
160
Using Limit Testing
163
Myscope
165
Creating a New Myscope Control Window
165
Using Myscope Control Windows
169
Saving and Recalling Information
171
Saving Screen Captures
171
Saving Waveforms
172
Recalling Waveforms
174
Saving Digital Waveforms
175
Saving Instrument Setups
176
Recalling Instrument Setups
177
Saving Measurements
178
Saving User Masks
179
Saving Histogram Data
180
Saving Timestamps
181
Copying Your Results to the Clipboard
182
Printing a Hard Copy
184
Run Application Software
185
Application Examples
187
Capturing Intermittent Anomalies
187
Using the Extended Desktop and Openchoice Architecture for Efficient Documentation
190
Triggering on Buses
192
Triggering on a Video Signal
193
Correlating Data between a Tektronix Oscilloscope and Logic Analyzer
195
Cleaning
196
Obtaining the Latest Oscilloscope Application and Version Releases
197
TPP0500 and TPP1000 500 Mhz and 1 Ghz 10X Passive Probes Instructions
198
Operating Information
198
Connecting the Probe to the Oscilloscope
198
Compensating the Probe
199
Standard Accessories
199
Optional Accessories
201
Replacing the Probe Tip
201
Specifications
201
Performance Graphs
202
Safety Summary
203
P6616 General-Purpose Logic Probe Instructions
205
Product Description
205
Connecting the Probe to the Oscilloscope
206
Connecting the Probe to Your Circuit
207
Functional Check
207
Typical Application
208
Accessories
208
Specifications
209
Safety Summary
210
Safety Terms and Symbols in this Manual
210
Contacting Tektronix
211
Warranty Information
211
Index
