Using the extended desktop and OpenChoice architecture for efficient
documentation
Engineers often need to document their lab work for future reference. Instead of saving screen shots and waveform data
to a CD or USB memory device, and then generating a report later, try using the OpenChoice architecture to document
your work in real time.
To make your instrument the center of your design and documentation process, use the following procedure.
NOTE. On 64-bit systems, you will need 64-bit compatible device drivers and application software.

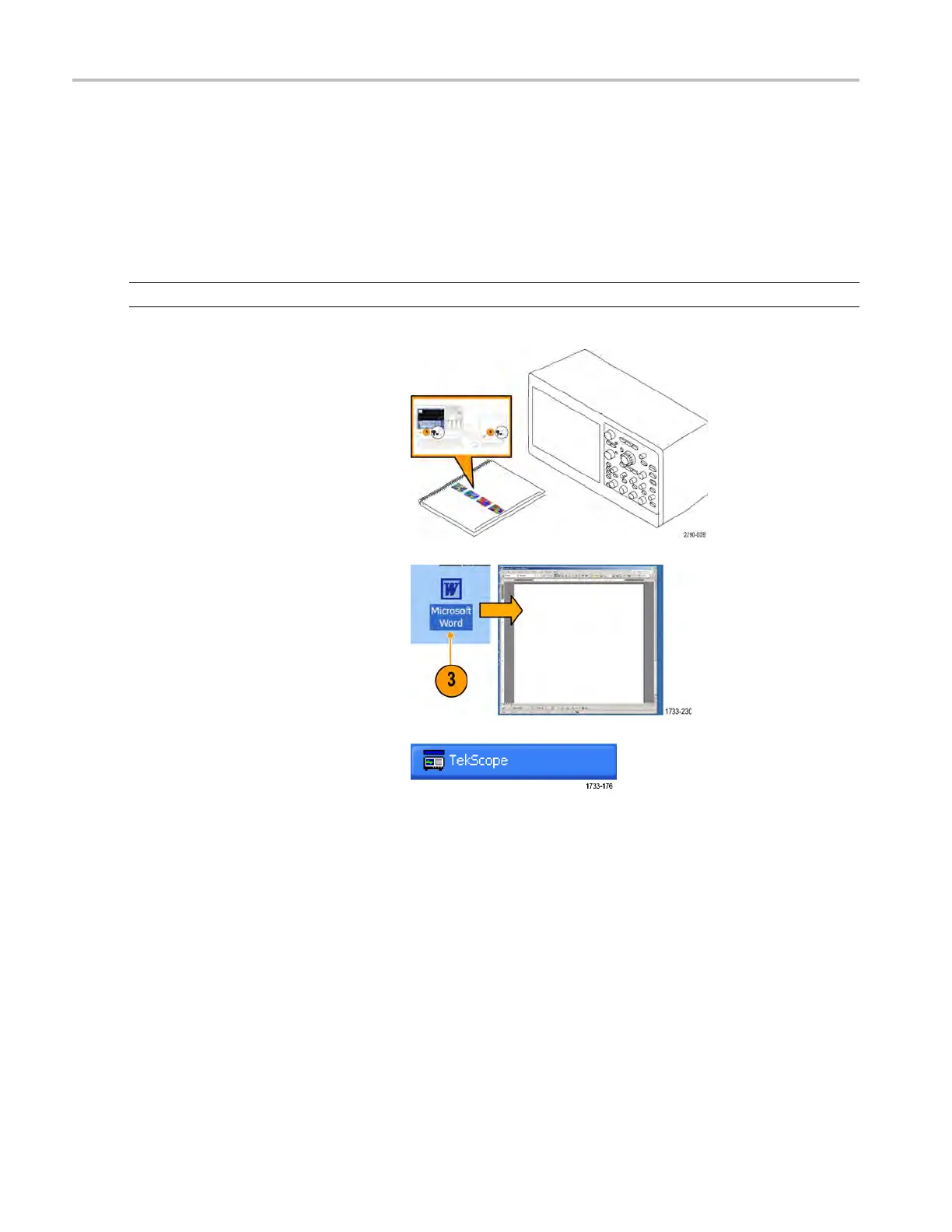

1. Load Microsoft Word or Excel on your
instrument.
2. Connect a second monitor. (See
page 12, Adding a second monitor.)
3. Open Microsoft Word, and then drag the
Word win
dow onto the extended desktop.
4. Click TekScope to restore the instrument
application.
168 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO /DP O5000 Series U ser Manual
