Display a wavefo
rm

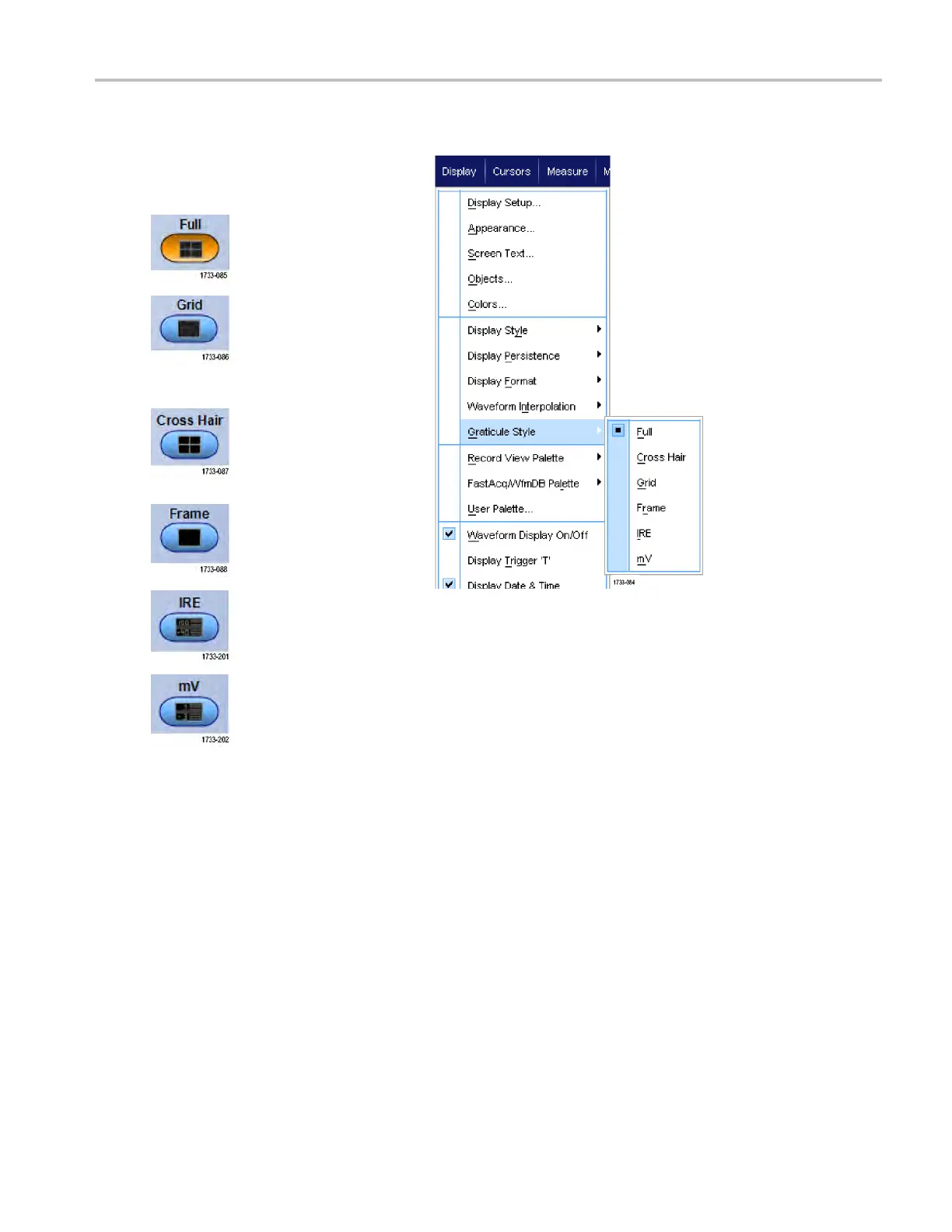

Setting the Graticule Style
To set the graticule s tyle, select Display >
Graticule Style, and then select one of the
following sty
les:
Use for quick
estimate of
waveform parameters.
Use for full-screen
measurements with
cursors and automatic
readouts when
cross-hairs are not
needed.
Use for making quick
estimates of waveforms
while leaving more room
for automatic readouts
and other data.
Use with automatic
readouts and other
screen text when display
features are not needed.
Use for NTSC video
signals.
Use for video signals
other than NTSC.
MSO/DPO70000DX, MSO/DPO70000C, DP O7000C, and MS O/DPO5000 Series U ser M anual 93
