Tektronix DPO70000C/DX Series User Manual

Analyzing wavef
orms

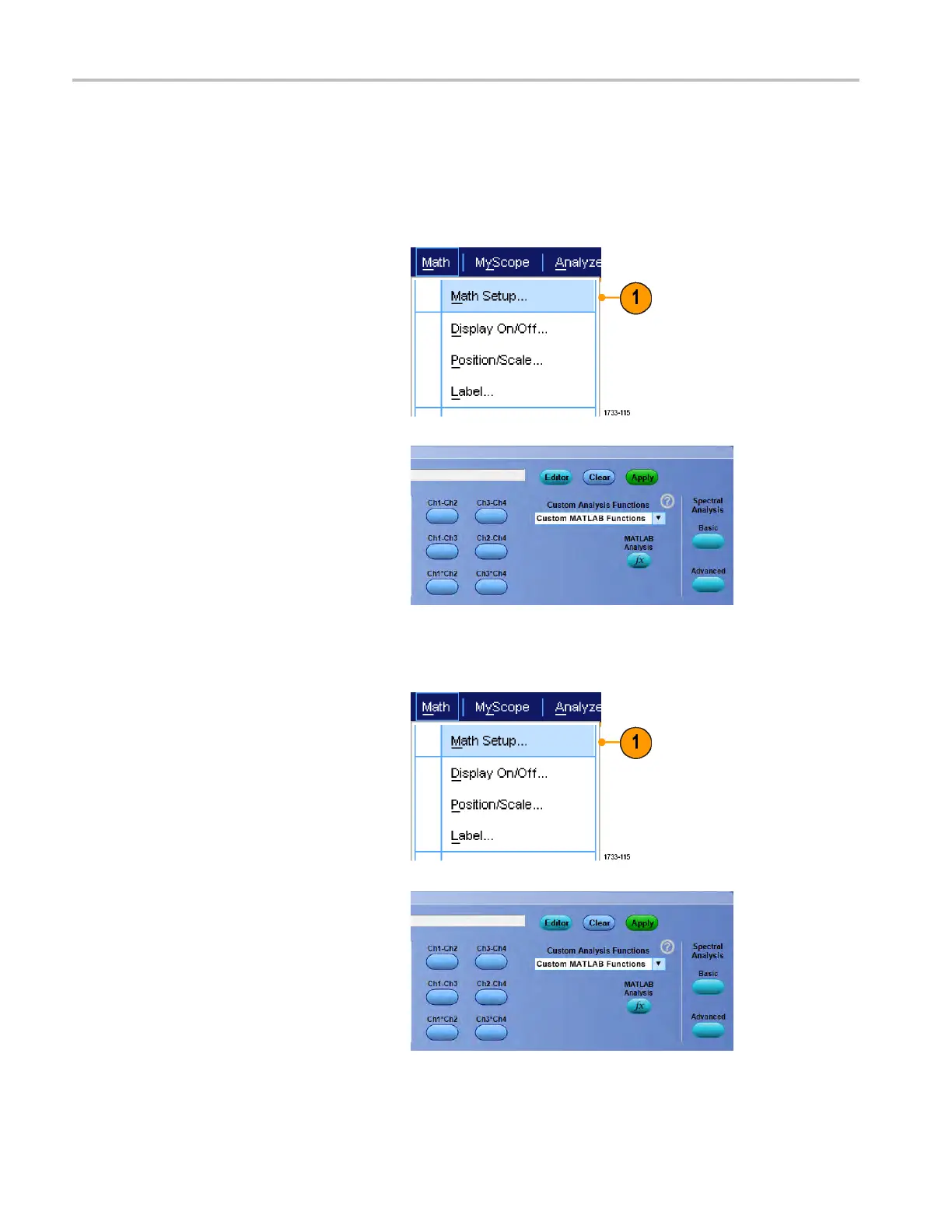

Usingmathwaveforms
Create math w aveforms to support the analysis of your channel and reference waveforms. By combining and transforming
source waveforms and other data into math waveforms, you can derive the data view that your application requires.
Use the following procedure for predefined math equations.
1. Select Math > Math Setup....
2. Choose one of the predefined math
equations.
Use the following procedure to build an advanced math waveform expression.
1. Select Math > Math Setup....
2. Click Editor.
126 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO /DP O5000 Series U ser Manual
