Acquisition
Using FastAcq
Fast acquisition mode reduces the dead time between waveform acquisitions, enabling the capture and display of transient
events such as glitches or runt pulses. Fast acquisition mode can also display waveform phenomena at an intensity that
reflects their rate-of-occurrence.

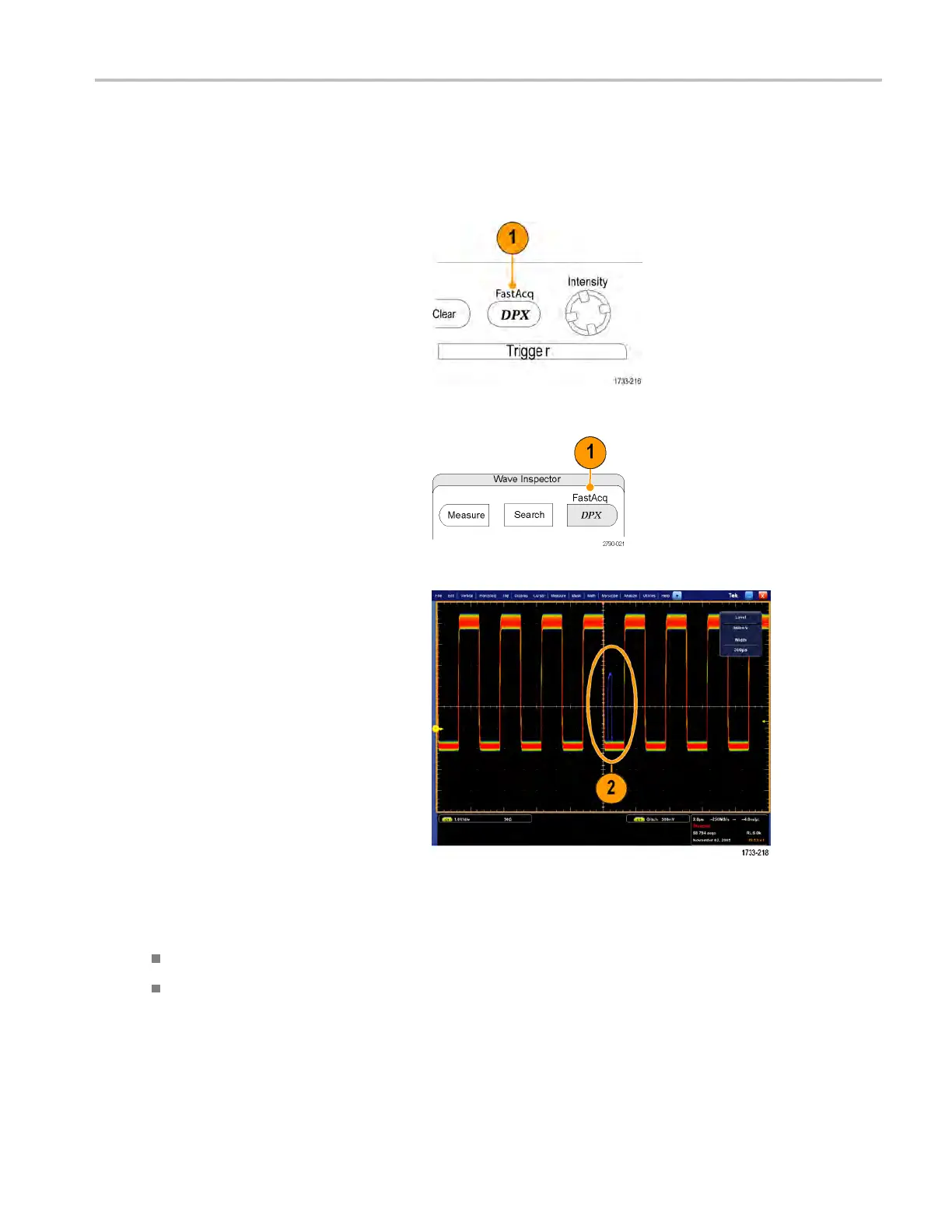

1. Push FastAcq.
MSO/DPO70000DX, MSO/DPO70000C, and DPO7000C Series
MSO5000 and DPO5000 Series
2. Find glitches, transients, or other random
events.
When you have identified an anomaly,
set the trigger system up to look for it.
(See page 165, Capturing intermittent
anomalies.)
Quick tips
Digital c hannels and buses are not available in FastAcq mode.
To optimize for capturing details or rare events, select Horiz/Acq > Horizontal/Acquisition Setup > Acquisition> F ast
Acq, and then select O ptimize For Capturing Details or Capturing rare events.
MSO/DPO70000DX, MSO/DPO70000C, DP O7000C, and MS O/DPO5000 Series U ser M anual 45
