Pinpoint trigge
rs
Triggering on a serial bus
Locate p roble
ms by triggering on a serial bus. Serial buses are available on MSO/DPO70000DX, MSO/DP O70000C, DPO7000C,
MSO5000, and DPO5000 Series instruments. Digital channels can be used in bus definitions on MSO instruments.
Set up a serial
bus. (See page 53, Setting up a bus.)

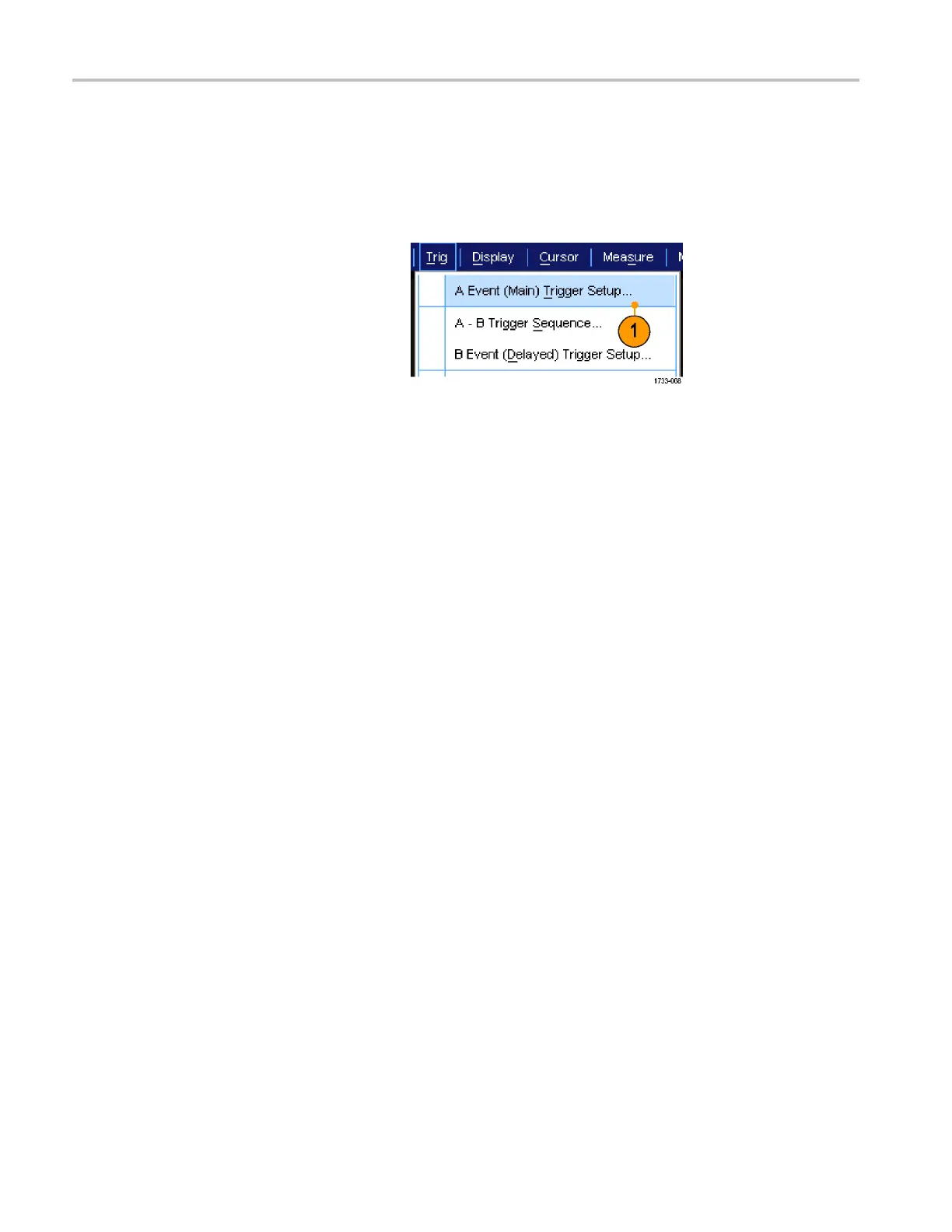

1. Select Trig >
A Event (Main) Trigger
Setup....
2. Select the A Event tab.
3. Select the Bus Trigger Type.
4. Select the bus.
5. Select the bus signal to trigger on.
6. Depending on your Trigger On choice
and your bus type, make the required
selections for the bus.
See the online help for additional help
setting up a bus.
80 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO /DP O5000 Series U ser Manual
