Taking a measurement snapshot
The Snapshot measurement (in the Measurement menu) displays all single-
channel measurements on one screen for a single acquisition of one channel. You
can view the snapshot results and save a screen image of the snapshot
measurements to a file.
To take a measurements snapshot:
1. Acquire and display a triggered waveform.

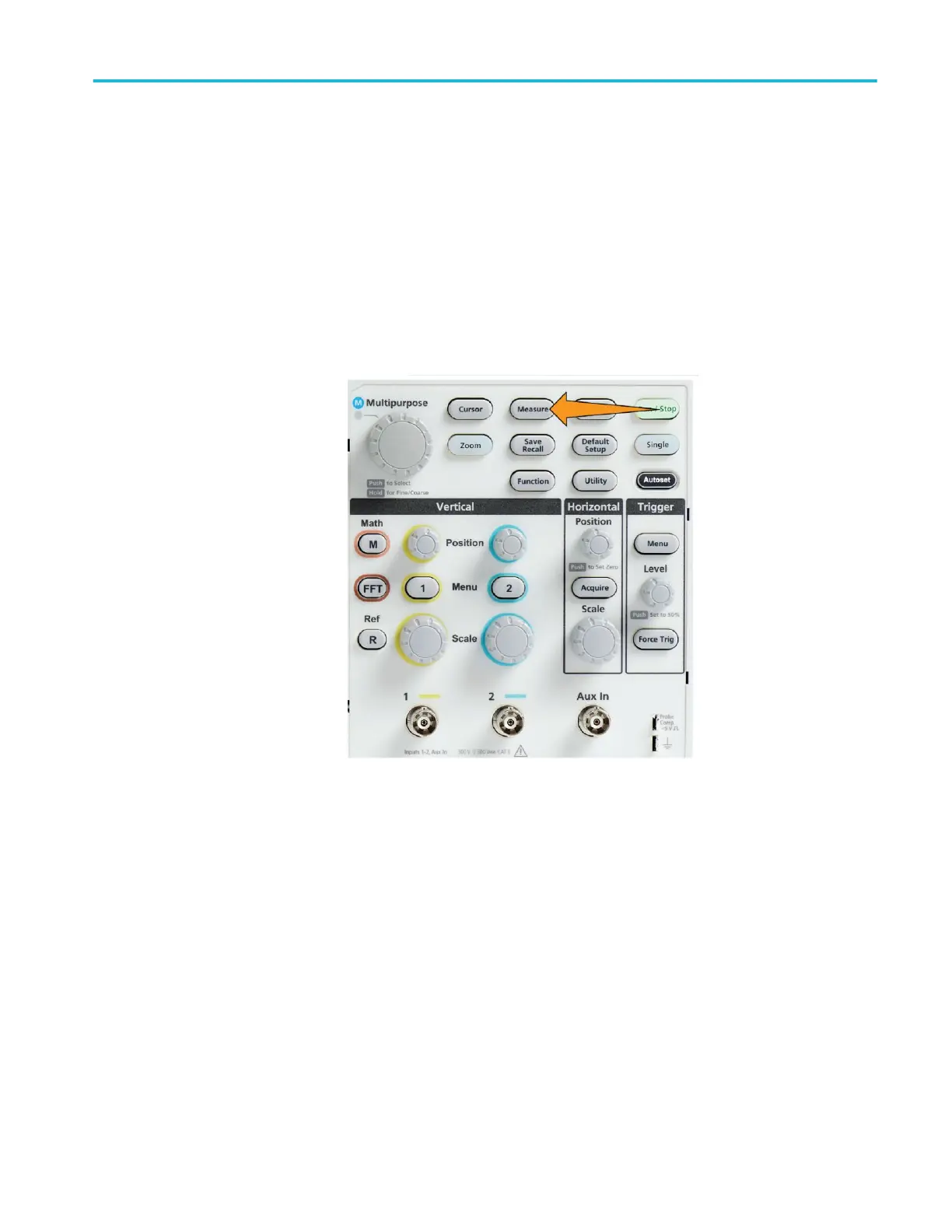

2. Push Measure.
3. Push the side-menu button of the channel for which to show the measurement
snapshot. You can only take a snapshot of one channel at a time.
4. Use the Multipurpose knob to select and click Snapshot. The snapshot
screen opens immediately.
