Tenda F9 User Manual

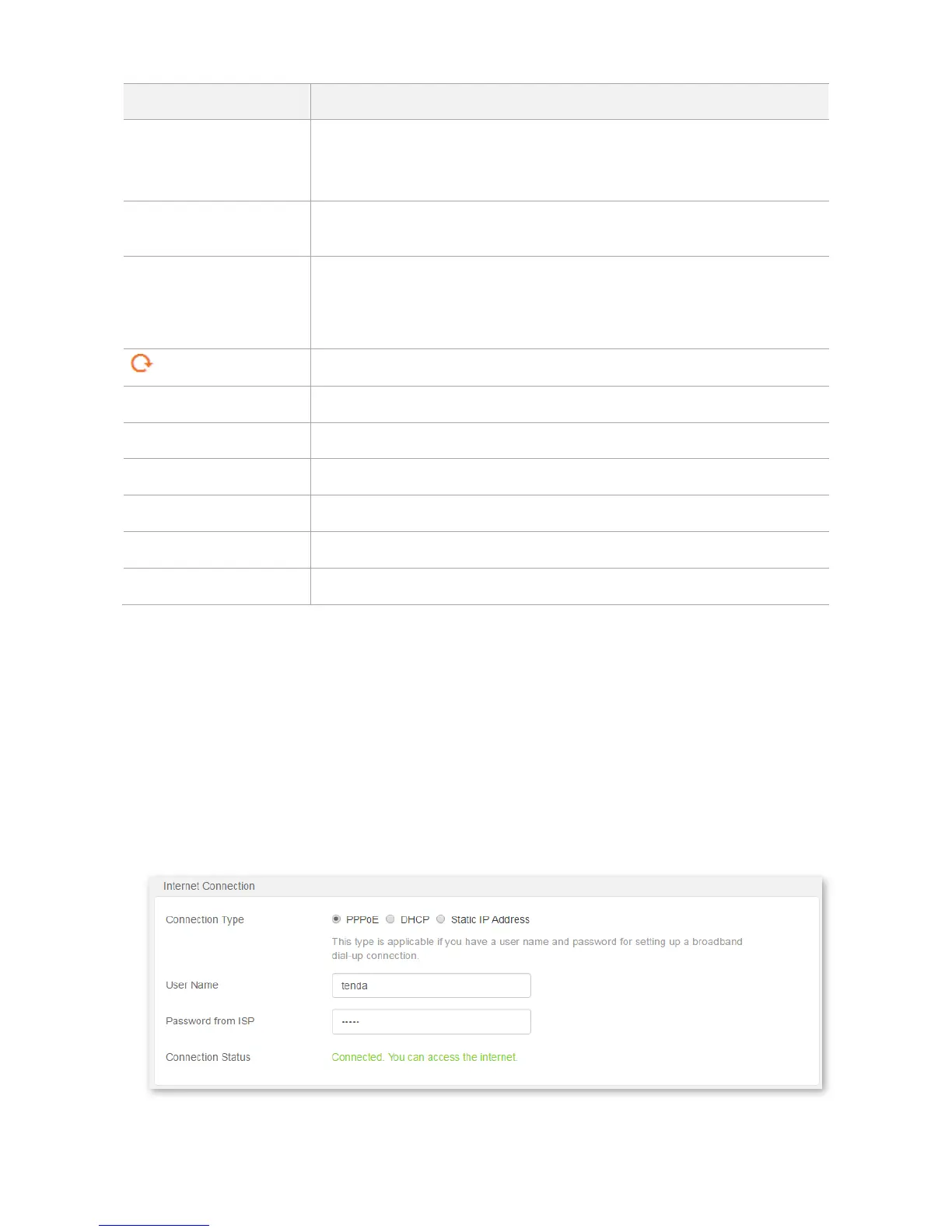

Parameters
Description
 DHCP: The ISP does not provide any parameters for internet access.
 Static IP address: The ISP provides a static IP address and other related
parameters for internet access.
PPPoE user name and
password
Enter the PPPoE user name and password provided by your ISP.
IP address, subnet mask,
default gateway,
preferred/alternate DNS
server address
Enter the IP address, subnet mask, default gateway, and DNS server addresses
provided by your ISP.
Click this icon to the WiFi signals nearby.
Select
Select the WiFi name you want to extend.
WiFi Name
It specifies the name of wireless network.
MAC Address
It specifies the MAC address corresponding to a wireless network.
Channel
It specifies the wireless channel at which the wireless network works.
Security Mode
It specifies the security mode of the wireless network.
Strength
It specifies the WiFi signal strength of the wireless network.
5.1 PPPoE
Configuration Procedure
Step 1 Choose Internet Settings.
Step 2 Connection Type: Select PPPoE.
Step 3 User Name: Enter the user name provided by your ISP.
Step 4 Password: Enter the password provided by your ISP.
Step 5 Click OK to apply the settings.
--End

Tenda F9 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channel bandwidth	40 MHz
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	600 Mbit/s
Product type	Tabletop router
Product color	White
LED indicators	System, WAN, WLAN, WPS
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	-95 dBm, -74 dBm, -72 dBm, -62 dBm, -70 dBm, -73 dBm, -86 dBm, -90 dBm
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11b)	21.5 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11g)	17.5 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)	15 dBmW
Ethernet LAN (RJ-45) ports	4
Flash memory	2 MB
Internal memory	16 MB
Processor model	Realtek
Output current	1 A
Output voltage	9 V
Power source type	DC
Power consumption (typical)	1.98 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Frequency band	2.4 - 2.4835 GHz
Antenna gain level (max)	6 dBi
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK
Browser supported	Internet Explorer 5.0, Firefox 1.0
Windows operating systems supported	Windows 2000
Harmonized System (HS) code	85176990

Weight and Dimensions

Width	171.3 mm
Height	36.4 mm
