Tenda F9 User Manual

8.3 Application Scenario
Jack purchases F9 to provide wired and wireless network. He usually finds unknown devices are connected to his
router in Bandwidth Control page. So he only allows the devices belonging to his families to access the internet
through the router.
Solution
Configure the MAC Address Filter function to allow devices belonging to families to access the internet.
Assume that the MAC addresses of the devices are as follows:
− 14:5F:94:BC:FC:81
− 1C:5C:F2:B4:40:01
Configuration Procedure

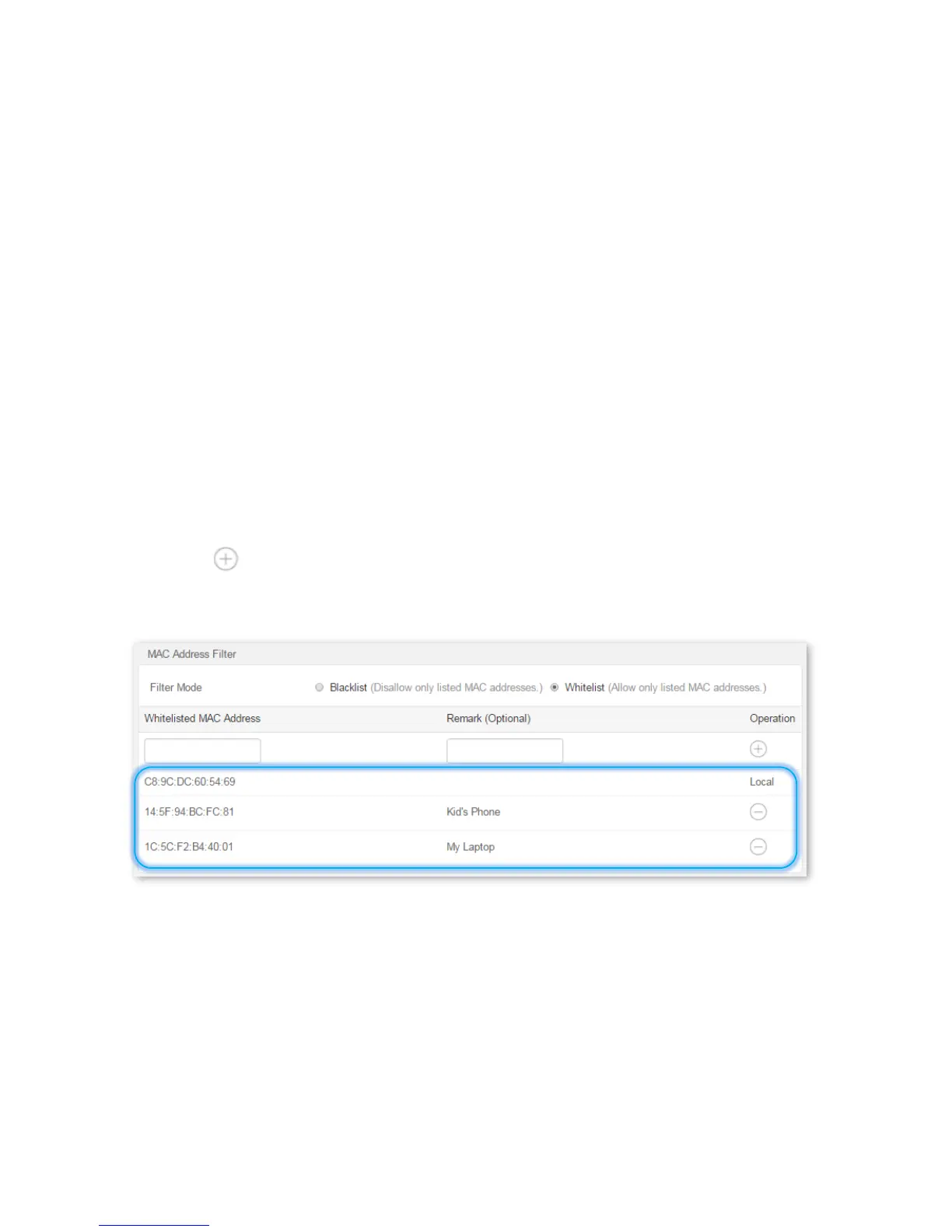

Step 1 Choose Advanced to enter the page.
Step 2 Whitelisted MAC Address: Enter a MAC address of whitelisted device, which is 14:5F:94:BC:FC:81 in
this example.
Step 3 Remark (Optional): Enter a note for the MAC address, which is Kid’s Phone in this example.
Step 4 Click .
Step 5 Perform Step 2 to Step 4 to add the MAC address 1C:5C:F2:B4:40:01.
Step 6 Click OK to apply the settings.
--End
Verification
Only the devices listed in Whitelisted MAC Address can access the internet through the router. The other devices
cannot connect to the router.

Tenda F9 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channel bandwidth	40 MHz
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	600 Mbit/s
Product type	Tabletop router
Product color	White
LED indicators	System, WAN, WLAN, WPS
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	-95 dBm, -74 dBm, -72 dBm, -62 dBm, -70 dBm, -73 dBm, -86 dBm, -90 dBm
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11b)	21.5 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11g)	17.5 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)	15 dBmW
Ethernet LAN (RJ-45) ports	4
Flash memory	2 MB
Internal memory	16 MB
Processor model	Realtek
Output current	1 A
Output voltage	9 V
Power source type	DC
Power consumption (typical)	1.98 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Frequency band	2.4 - 2.4835 GHz
Antenna gain level (max)	6 dBi
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK
Browser supported	Internet Explorer 5.0, Firefox 1.0
Windows operating systems supported	Windows 2000
Harmonized System (HS) code	85176990
