Tenda F9 User Manual

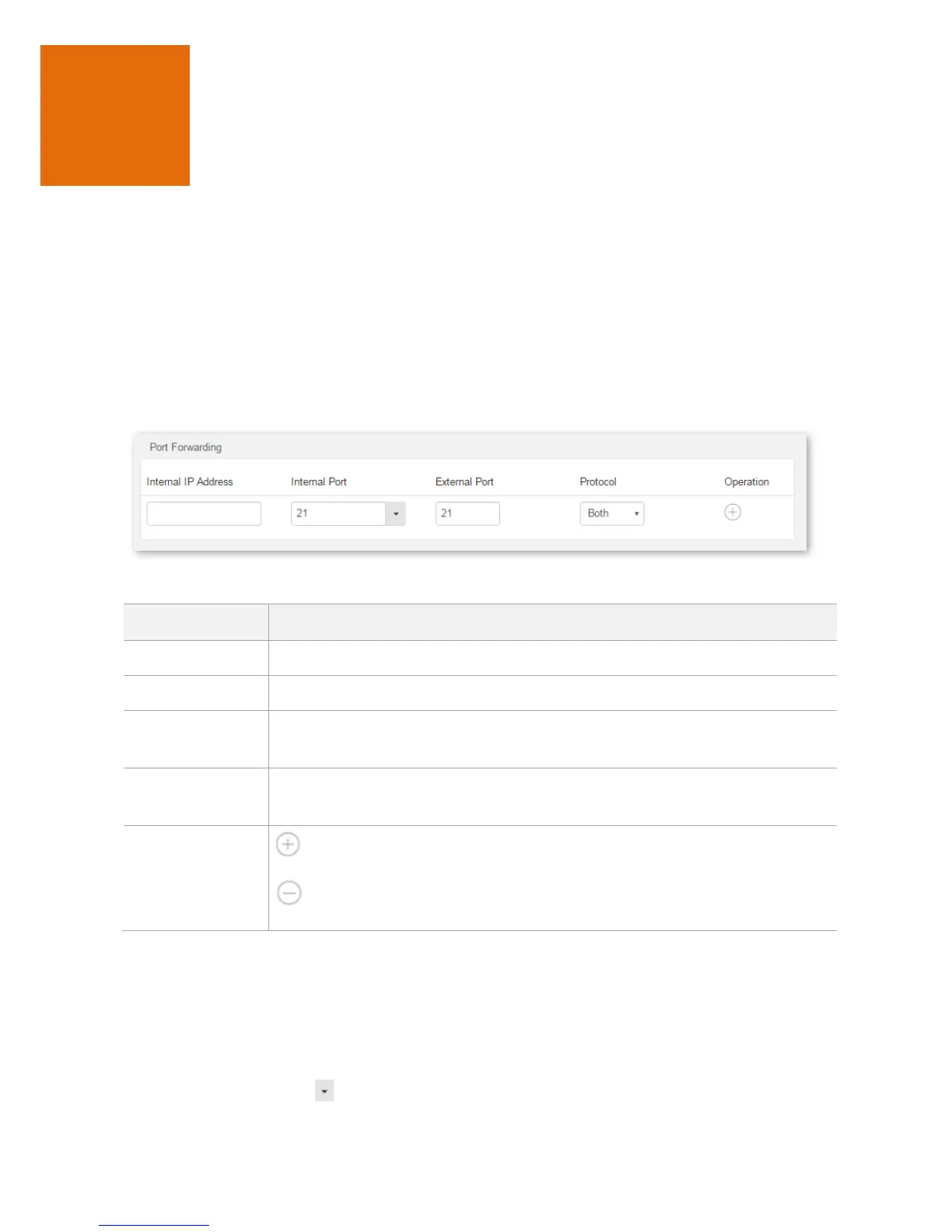

10 Port Forwarding
In Port Forwarding part, you can add Port Forwarding rules.
If computers are connected to the router to form a LAN and access the internet through the router, internet
users cannot access the servers built on the hosts on the LAN, such as web servers, email servers, and FTP
servers. To enable internet users to access a LAN server, enable the port forwarding function of the router, and
map one service port to the IP address of the LAN server. This enables the router to forward the requests arriving
at the port from the internet to the LAN server.
Choose Advanced to enter the page.
Parameters
Parameters
Description
Internal IP Address
It specifies the IP address of a server that resides on the LAN of the router.
Internal Port
It specifies the service port number of a server that resides on the LAN of the router.
External Port
It specifies a router port accessible to internet users. When you select an internal port,
the external port is auto-populated.
Protocol
It specifies the protocol of a service provided through the router for internet users. If
you are uncertain about which service protocol is used, Both is recommended.
Operation
: Add a Port Forwarding rule.
: Remove a Port Forwarding rule.
10.1 Adding a Port Forwarding Rule
Step 1 Choose Advanced to enter the page.
Step 2 Internal IP Address: Enter the IP address of the internal server, which is 192.168.0.110 in this example.
Step 3 Internal Port: Click and select an internal port from the drop-down list, or enter one manually,
which is 21 in this example.

Tenda F9 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channel bandwidth	40 MHz
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	600 Mbit/s
Product type	Tabletop router
Product color	White
LED indicators	System, WAN, WLAN, WPS
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	-95 dBm, -74 dBm, -72 dBm, -62 dBm, -70 dBm, -73 dBm, -86 dBm, -90 dBm
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11b)	21.5 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11g)	17.5 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)	15 dBmW
Ethernet LAN (RJ-45) ports	4
Flash memory	2 MB
Internal memory	16 MB
Processor model	Realtek
Output current	1 A
Output voltage	9 V
Power source type	DC
Power consumption (typical)	1.98 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Frequency band	2.4 - 2.4835 GHz
Antenna gain level (max)	6 dBi
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK
Browser supported	Internet Explorer 5.0, Firefox 1.0
Windows operating systems supported	Windows 2000
Harmonized System (HS) code	85176990

Weight and Dimensions

Width	171.3 mm
Height	36.4 mm
