Tenda F9 User Manual

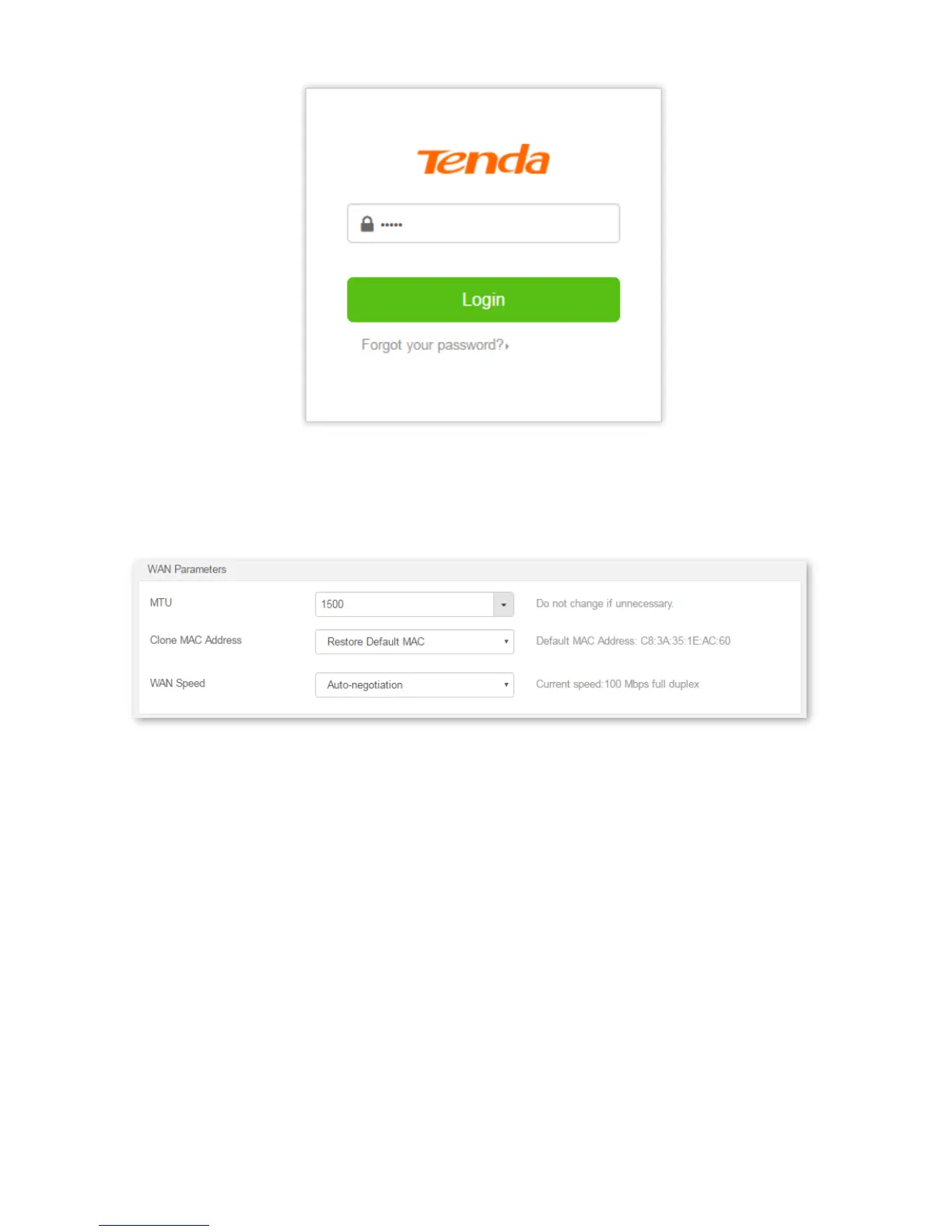

14.2 WAN Parameters
To change WAN parameters, choose Administration > WAN Parameters to enter the page.
MTU
MTU specifies the maximum size of a packet that the router can transmit. MTU varies across connection types.
The default setting is recommended.
You can try changing the MTU when:
 You cannot access some websites or encrypted websites (such as online banking or Paypal websites).
 You cannot access an FTP server or a POP server.
Clone MAC
It specifies the MAC address of the router. If the router cannot access the internet after you configure its internet
settings, your ISP may have bound your account with the MAC address of your computer that was used to verify
internet connectivity after you subscribed to the internet service. Therefore, only the computer can access the
internet with the account.
In this case, you can try either of the following methods to address the issue.

Tenda F9 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channel bandwidth	40 MHz
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	600 Mbit/s
Product type	Tabletop router
Product color	White
LED indicators	System, WAN, WLAN, WPS
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	-95 dBm, -74 dBm, -72 dBm, -62 dBm, -70 dBm, -73 dBm, -86 dBm, -90 dBm
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11b)	21.5 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11g)	17.5 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)	15 dBmW
Ethernet LAN (RJ-45) ports	4
Flash memory	2 MB
Internal memory	16 MB
Processor model	Realtek
Output current	1 A
Output voltage	9 V
Power source type	DC
Power consumption (typical)	1.98 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Frequency band	2.4 - 2.4835 GHz
Antenna gain level (max)	6 dBi
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK
Browser supported	Internet Explorer 5.0, Firefox 1.0
Windows operating systems supported	Windows 2000
Harmonized System (HS) code	85176990

Weight and Dimensions

Width	171.3 mm
Height	36.4 mm
