Components

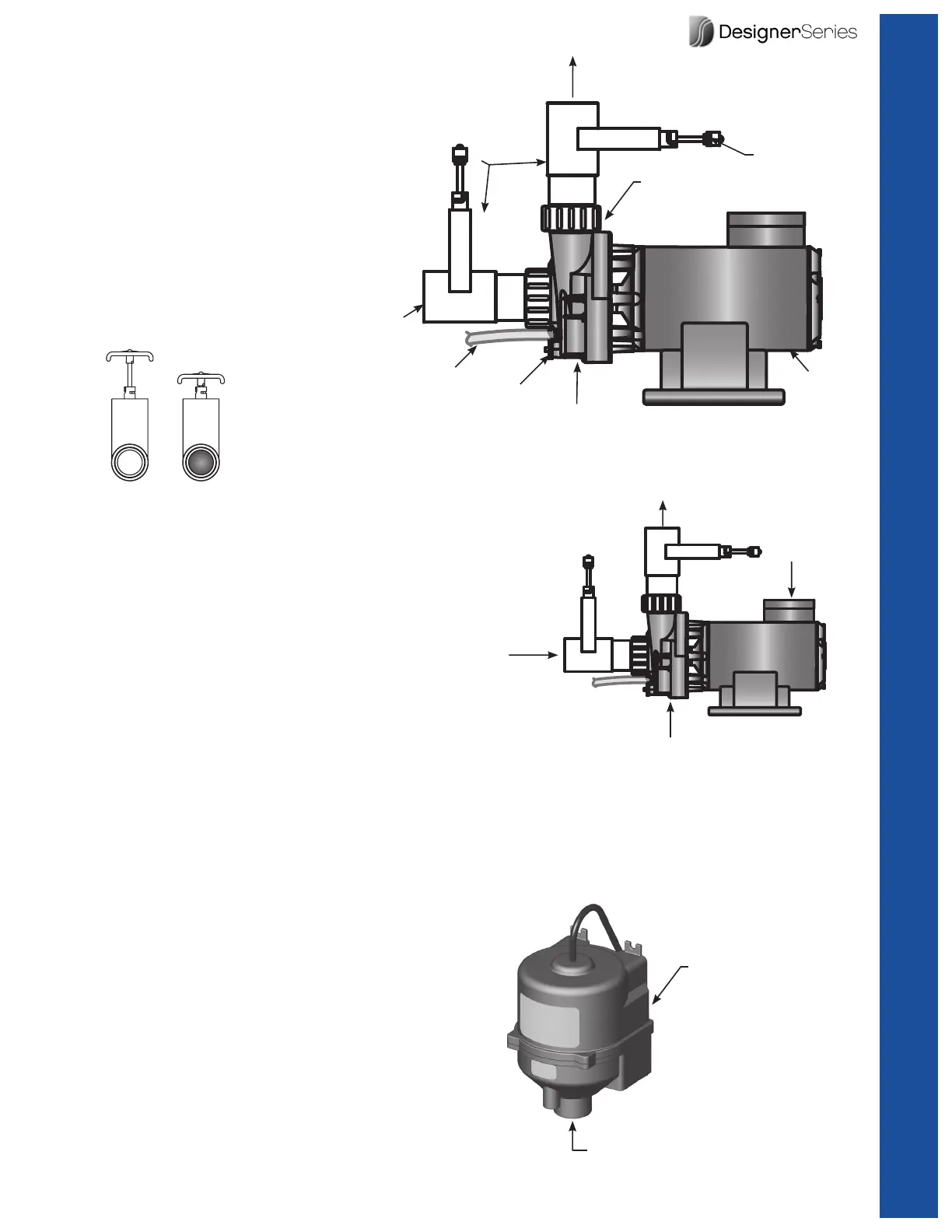

Water Pump
NOTE: On some water
pumps, pipes heading to water
jets may be located on the
top of the pump. However,
the configuration of the hose,
“T” valve, remains the same.
Pump configuration vary by
model.
Valve Lock
TO WATER JETS
Pump
Union
Pump
Motor
Water Pump
Volute
Self Priming Hose
From Suction
“T” Valve
Drain Plug
Open Valve Closed Valve
Circulation/Filtration Pump
Designer Series Spas are
equipped with a circulation
pump for continuous filtration.
Pump configuration vary by
model.
Air Pump (Blower)
Designer Series Spas are
equipped with an air blower
for the Bubbling System (not
included with the Silver Mod-
els).
Motor
TO AIR JETS
Pump
Motor
From
Suction
TO WATER JETS
Water
Pump
Volute
Components
