ThermoSpas Designer Series User Manual

40

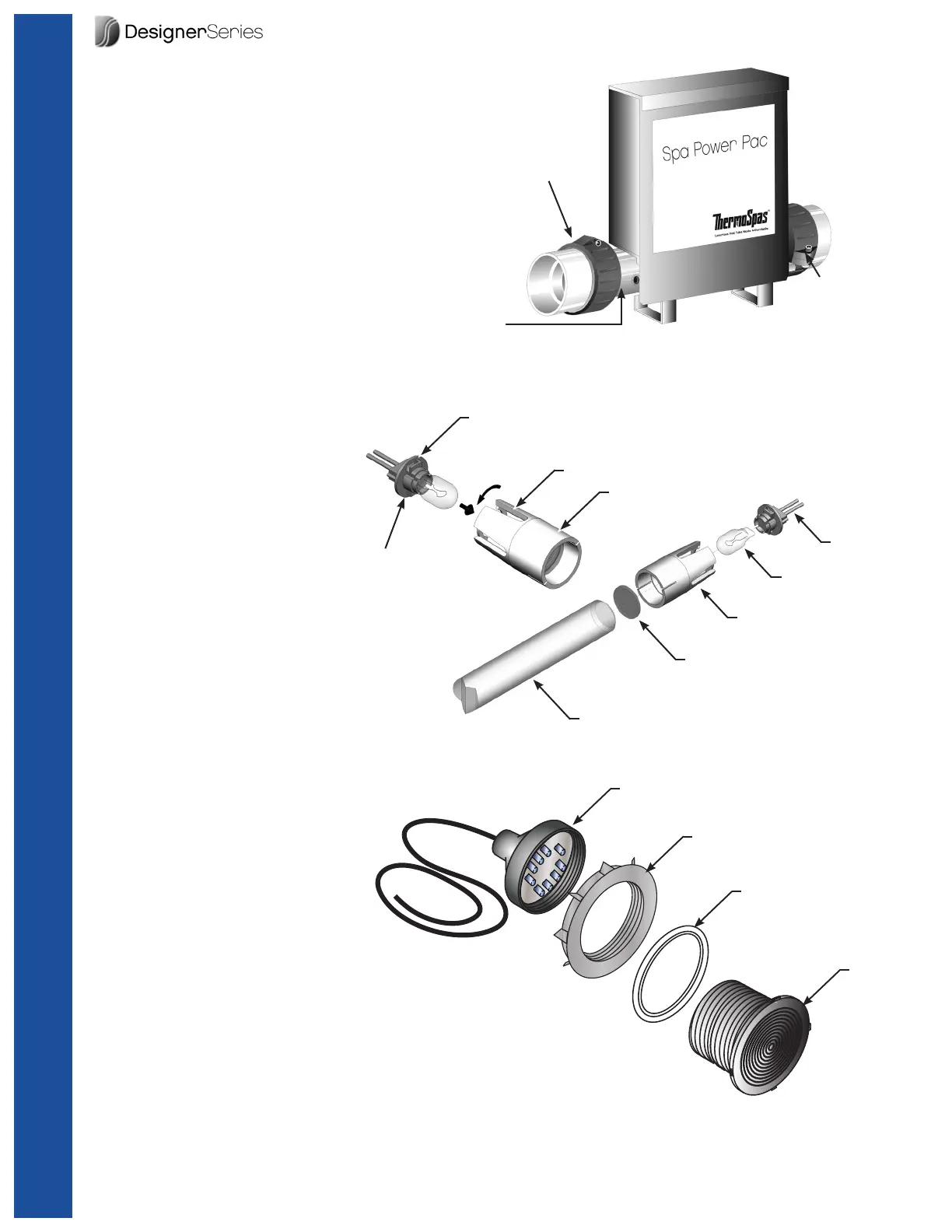

Grab Bar Light Assembly (Concord and Park Avenue Series)
The Bulb Socket is attached
to the Bulb housing by
aligning the (2) Bulb Sock-
et Twist Lock features with
the (2) Twist Lock Paths on
the Bulb Housing. Insert the
Bulb Socket until it stops at
the rear of the Bulb Hous-
ing, then turn until the Bulb
Socket Twist Lock snaps into
place. Reverse this proce-
dure to remove the Bulb
Socket.
Spa Light Assembly
The LED light is attached to the
light lens by screwing on to it.
The light housing is accessible
from underneath the skirt panel
for ease of replacement.
Spa Pack and Heater
(Electronic Center of Spa)
Heater Union
Heater Union
(hand tighten only by
turning clockwise)
Heater
Bulb Housing
Bulb
Socket
Twist Lock Path
Bulb Housing
Acrylic Grab Bar
Lens (packed separately)
Bulb Housing
Bulb
Bulb
Socket
Led Light
Nut
Gasket
Lens
Components
The Spa pack is normally
behind the cabinet located
underneath the topside control
panel.
