Assembly
3.6 Fit the chair base
For a fixed seat, go to Section 3.6.1.
The height of the seat is set as standard in the factory to the middle
position. This can be adjusted according to the customer. First the
seat first (Section 3.6.1) and check if the height is correct, after
which it can be adjusted.
1. Remove the chair base from the box.
2. Remove the cover under the seat on the chair base.
3. Lift the seat onto the swivel seat.
4. Screw the M8 nuts onto the protruding threaded ends on the
flange.
5. Refit the cap under the chair base
6. Estimate the size of the user
7. Adjust the seat height as necessary (Section 3.6.1).
8. Check the length of the safety belt. Adjust this if necessary (Section 3.6.2).
3.6.1 Installing the fixed seat and manual swivel seat
Fitting fixed seat
- A filler plate is positioned between the Squeeze unit and the
seat. This is supplied in the accessories box.

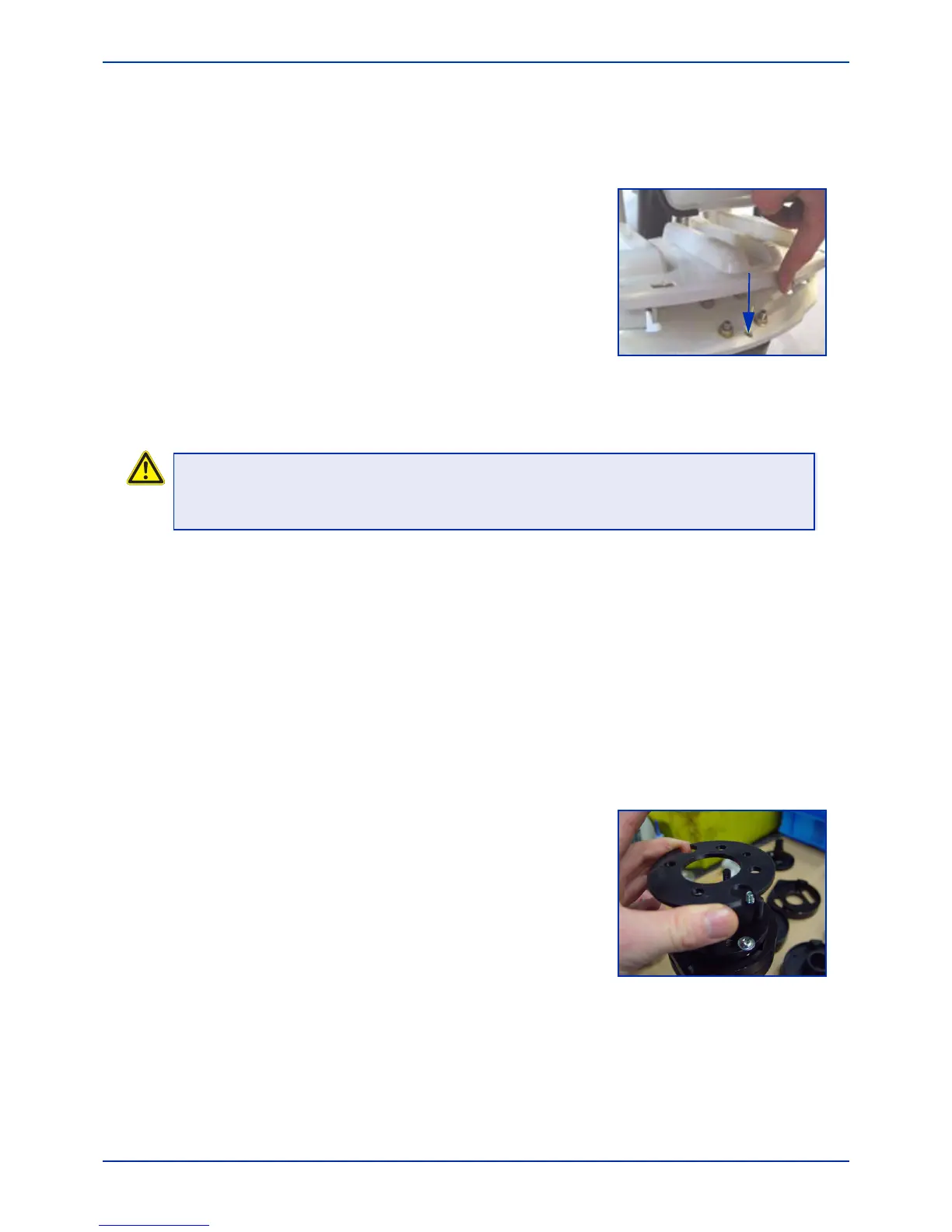

Fig. 3-17 Chair on flange
1
CAUTION
The pin on the flange locates in the extra hole in the chair base frame.
Fig. 3-18 Filler plate
1
