Assembly
5. Secure the linkage and the brackets again with an M6x16 bolt.
3.6.3 Adjusting the length of the safety belt
1. Remove the cover on the left armrest with a flat screwdriver, see Fig. 3-38.
2. Move the pin to the right hole in the safety belt, see Fig. 3-39.
3. Refit the cover.
3.7 Fixing the rail to the stairs
After making a test ride, the rail position is optimal. The supports can now be fixed definitively.

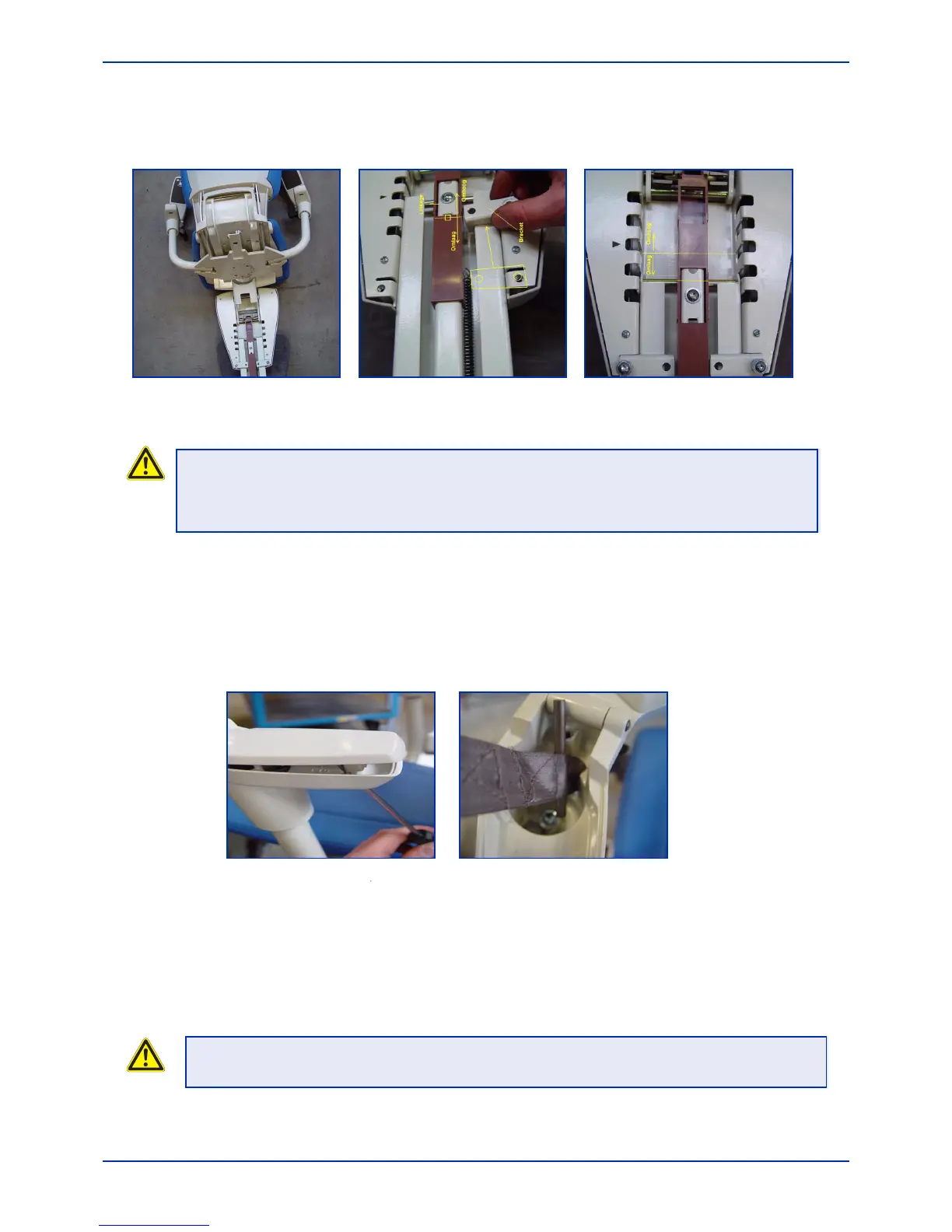

Fig. 3-35 Adjust footrest
1
Fig. 3-36 Linkage one position
higher
1
Fig. 3-37 Footrest one position
lower
1
CAUTION
The centre position is marked on the linkage by a rectangle (), and on the footrest by
an arrow ()
Fig. 3-38 Remove the cover
1
Fig. 3-39 Adjust the safety
belt
1
CAUTION
After fixing each bracket check the rail to verify that it has not shifted.
