Assembly
3.6.2 Chair base height adjustment
The height of the chair base can be adjusted for the customer. This is done by choosing one of the
five positions. Each position corresponds to a certain height. The stairlift leaves the factory in the
middle position (position 3). One position is roughly 2 cm higher or lower.
The following rule of thumb applies for raising the chair base:
- An increase of one position of the seat height is accompanied by setting the footrest one
position lower.
Height of the seat
The positions of the chair base are as follows (from low to high). The dotted line indicates the heights
schematically:
Procedure:
1. Remove the chair from the drive unit
- Remove the cover under the seat.
- Remove the four M8 nuts.
- Place the chair next to the drive unit.
2. Remove the service cover.
3. Remove the cover over the seat height adjuster
4. Adjust the height by moving the seat height adjuster to a
position higher or lower than 3, see Fig. 3-28 to Fig. 3-32.
- Unscrew the four M8 nuts with 13 socket spanner.

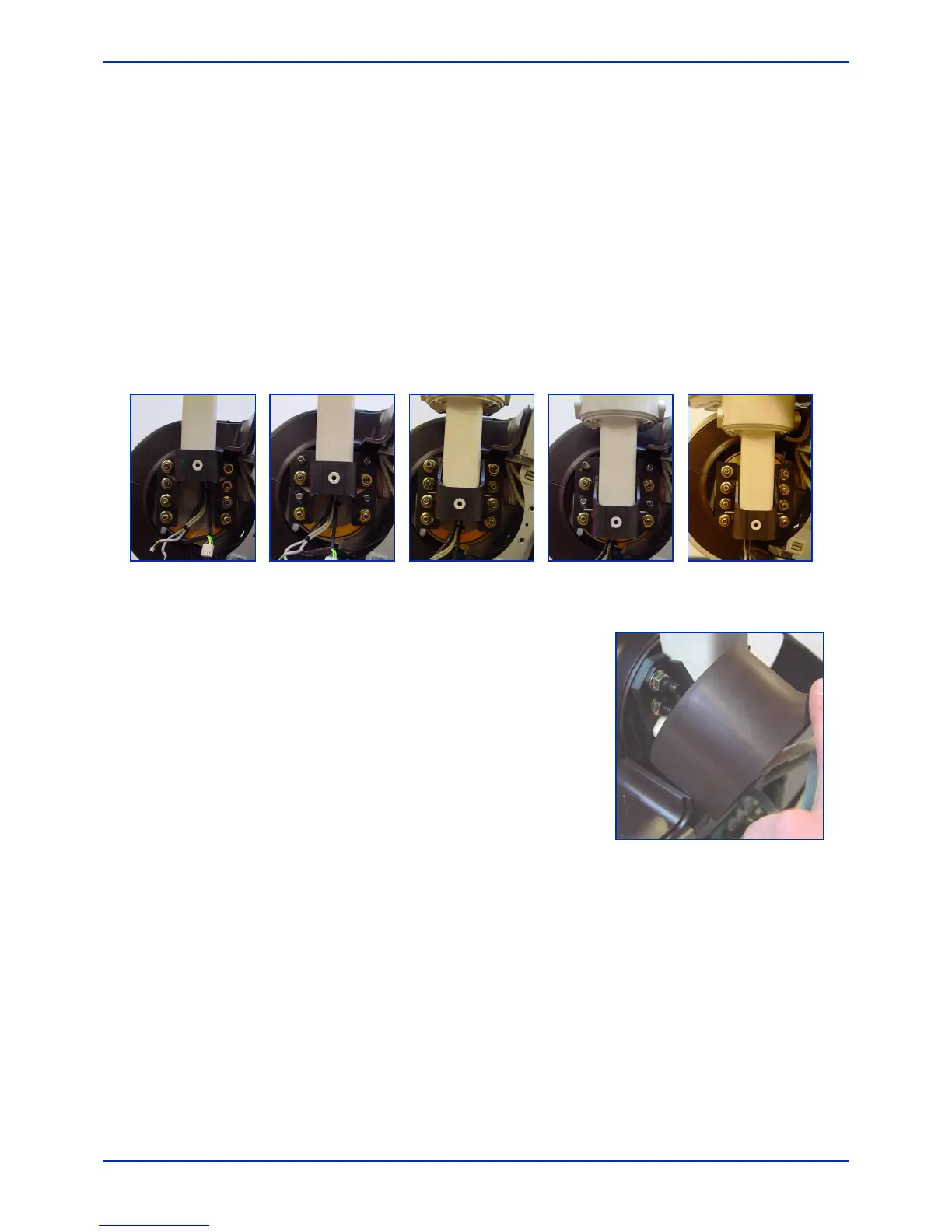

Fig. 3-28 Position 1 Fig. 3-29 Position 2 Fig. 3-30 Position 3 Fig. 3-31 Position 4 Fig. 3-32 Position 5
Fig. 3-33 Removing the height
adjuster cover
1
