ThyssenKrupp Flow2 Assembly Instruction

2007.03.07Flow2 stairliftTab 04: Install, adjust and release
www.ThyssenKruppAccessibility.nl29
5 Fitting the RF equipment
5.1 Call and park unit
The location of the call and park units must be determined in consultation with the customer. The call
and park units must be mounted on the wall, in a location from where the complete rail system is
visible. If this is not possible, a round mirror can be mounted.
1. Take the batteries out of the unit
2. Remove the call and park unit from its housing
3. Mount the call and park unit mountings on the wall.
a. Mark the holes where the unit will be positioned.
b. Drill holes and mount the call and park unit cases with the right mounting materials (plugs,
screws and washers).
4. Assemble the batteries.
5. Click the call and park unit into their cases.
6. In public buildings: screw the battery cover closed with the M3 bolt and nut supplied.
7. Place the call and park stickers at the right places.
8. Place the logo stickers on the battery cover of the call and park unit.
5.2 Repeater
1. Mount the repeater housing on a wall level with the middle of the rail, at least 0.4 m by 0.4 m
from the corner of the wall.
2. Connect the adapter.

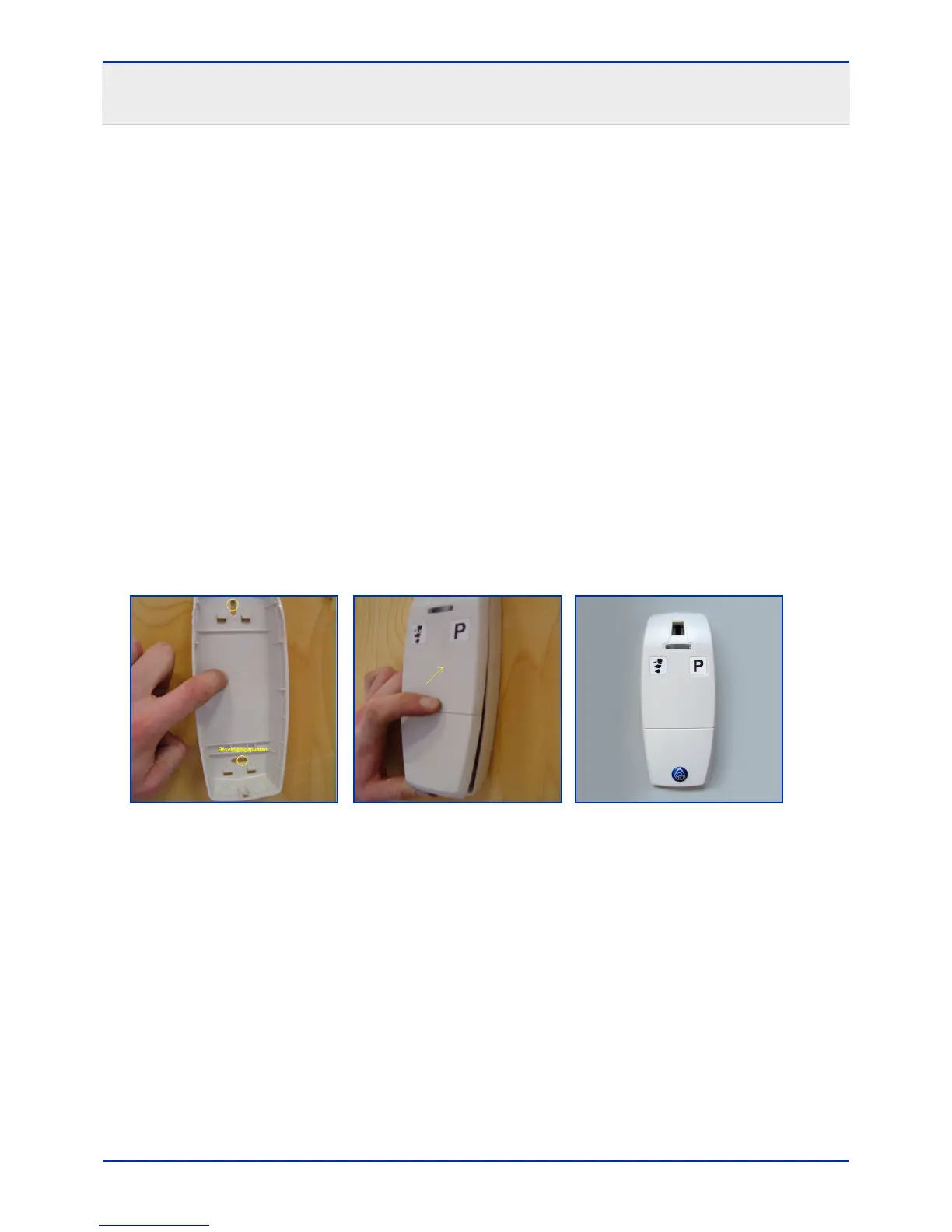

Fig. 5-1 Fitting the housing
on the wall
1
Fig. 5-2 Call and park unit in
housing
1
Fig. 5-3 Attach stickers
1
