1.Removetheretainerfromtheredttingattachedto
thelargehoseonthetopofthetank.

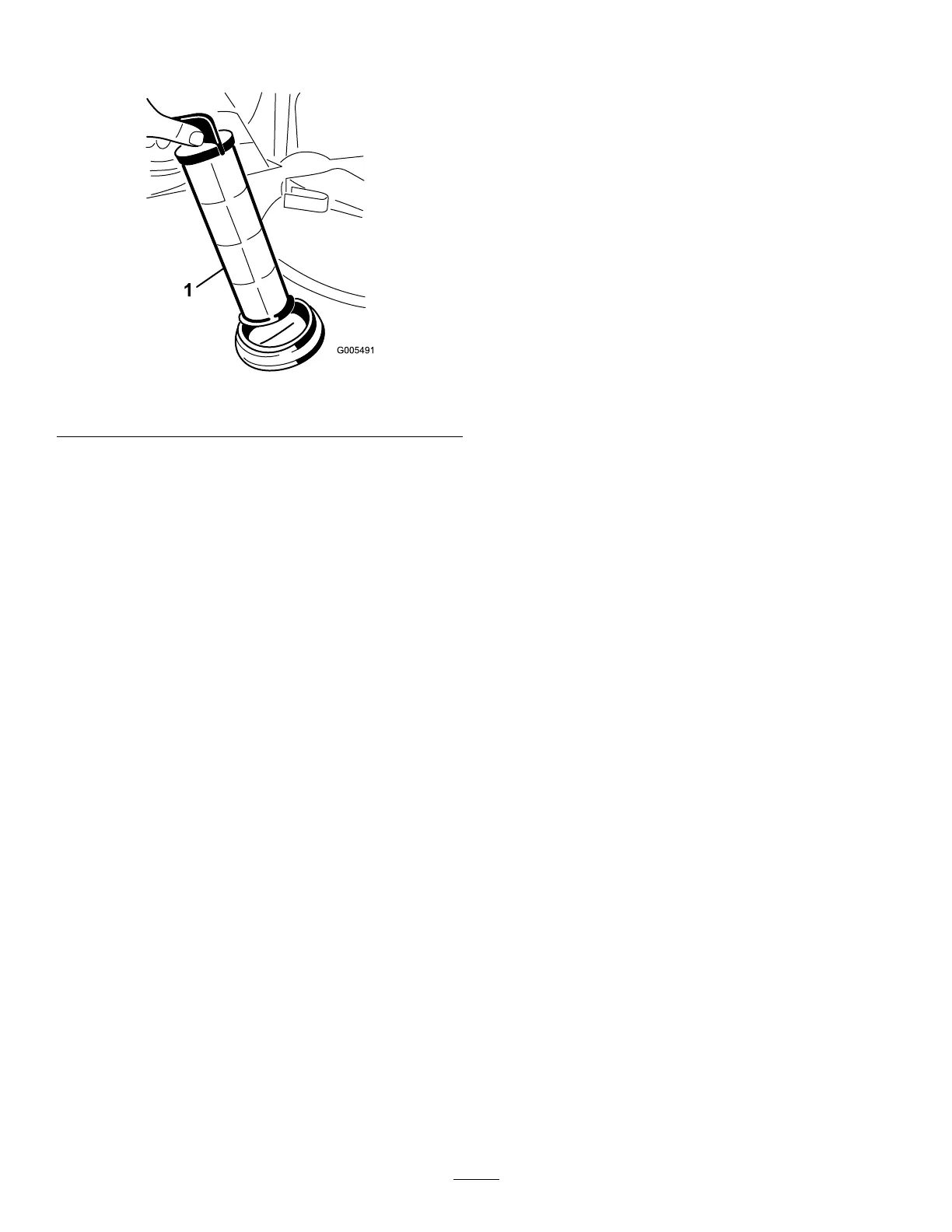

Figure74
1.Suctionstrainer
2.Disconnectthehosefromthetank.
3.Pullthestraineroutofthehole.
4.Cleanthestrainerwithcleanrunningwater.
5.Replacethestrainer,seatingitfullyintothehole.
6.Connectthehosetothetopofthetankandsecure
itwiththeretainer.
Storage
1.Positionthesprayeronalevelsurface,settheparking
brake,stopthepump,stoptheengine,andremove
theignitionkey.
2.Cleandirtandgrimefromtheentiremachine,
includingtheoutsideoftheengine’scylinderhead
nsandblowerhousing.
Important:Youcanwashthemachinewith
milddetergentandwater.Donotusehigh
pressurewatertowashthemachine.Pressure
washingmaydamagetheelectricalsystemor
washawaynecessarygreaseatfrictionpoints.
Avoidexcessiveuseofwater,especiallynearthe
controlpanel,lights,engine,andthebattery.
3.Cleanthespraysystem;refertotheCleaningthe
SprayersectioninOperation.
4.Addarustinhibiting,non-alcoholbased,RV
antifreezesolutiontothesystemandrunthepump
forafewminutestocirculateitthroughthesystem,
thendrainthespraysystemascompletelyaspossible.
5.Usetheboomliftswitchestoraisethebooms.Raise
theboomsuntiltheyhavemovedcompletelyinto
boomtransportcradleformingthe“X”transport
positionandtheboomcylindersarefullyretracted.
Makesuretheboomcylindersarefullyretractedto
preventactuatorroddamage.
6.Inspectthebrakes;refertoInspectingtheBrakesin
theBrakeMaintenancesection.
7.Servicetheaircleaner;refertoServicingtheAir
CleanerintheEngineMaintenancesection.
8.Greasethesprayer;refertotheLubricationsection.
9.Changethecrankcaseoil;refertoServicingEngine
OilintheEngineMaintenancesection.
10.Checkthetirepressure;refertoCheckingtheTire
PressureintheDriveSystemMaintenancesection.
11.Forstorageover30days,preparethefuelsystem
asfollows:
A.Addapetroleumbasedstabilizer/conditionerto
fuelinthetank.
Followmixinginstructionsfromstabilizer
manufacturer.(1oz.pergallon).Donotusean
alcoholbasedstabilizer(ethanolormethanol).
Note:Afuelstabilizer/conditionerismost
effectivewhenmixedwithfreshgasolineand
usedatalltimes.
B.Runtheenginetodistributeconditionedfuel
throughthefuelsystem(5minutes).
