Toro 74534TE GrandStand User Manual

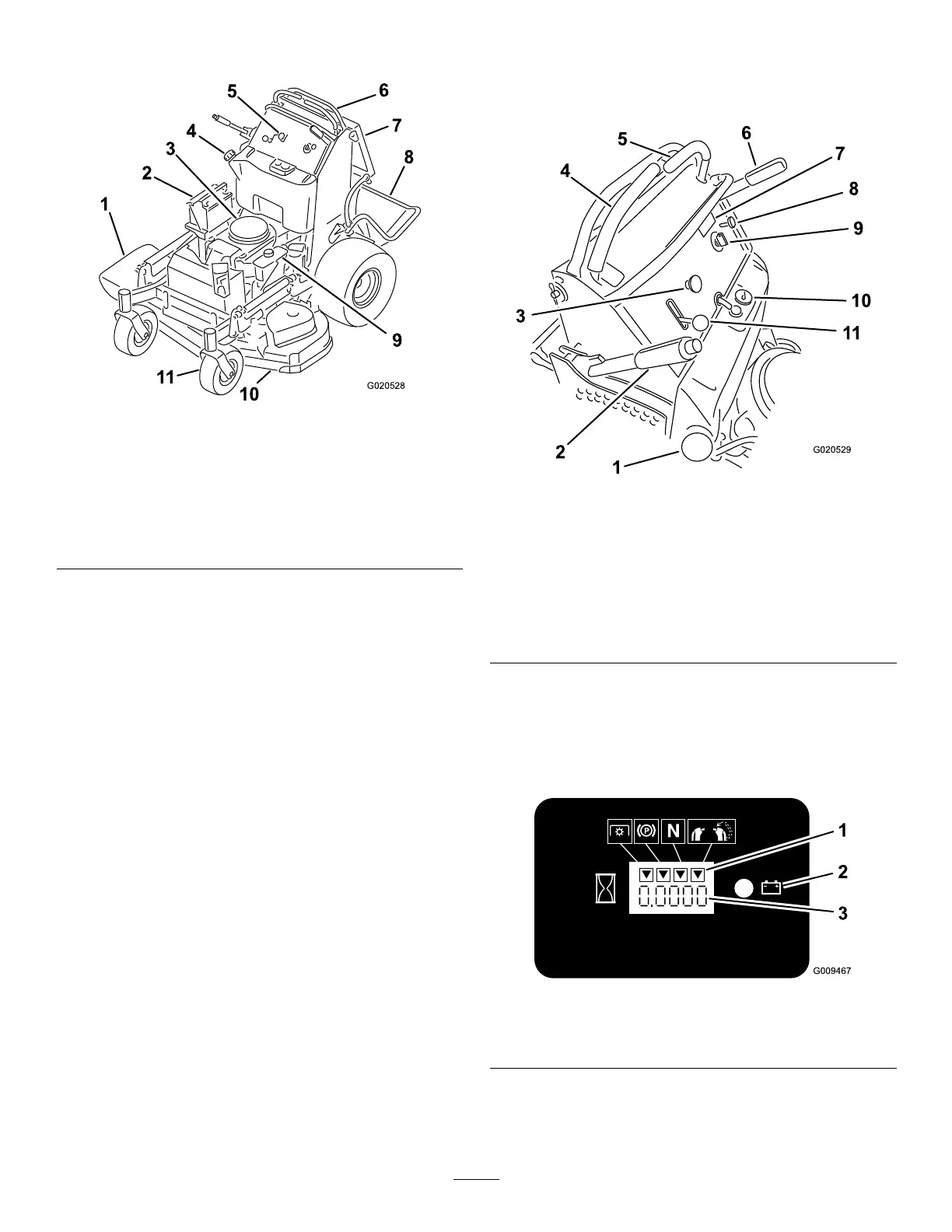

ProductOverview
G020528
7
8
9
10
11
Figure4
1.Side-dischargechute7.Operatorcushion
2.Battery
8.Platform(downposition)
3.Engine9.Hydraulictank
4.Fueltank10.Mowerdeck
5.Controls
11.Frontcasterwheel
6.Motion-controllevers
Controls
Becomefamiliarwithallthecontrols(Figure5)beforeyou
starttheengineandoperatethemachine.
1
7
2
8
3
9
4
10
5
11
6
G020529
Figure5
1.Fuelcap7.Hourmeter
2.Height-of-cutlever8.Choke
3.Blade-controlswitch
(PTO)
9.Ignitionswitch
4.Rightmotion-controllever10.Fuelgauge
5.Leftmotion-controllever
11.Throttlecontrol
6.Parking-brakelever
HourMeter
Thehourmeterrecordsthenumberofhourstheenginehas
operated.Itoperateswhentheengineisrunning.Usethese
timesforschedulingregularmaintenance(Figure6).
Figure6
1.Safety-interlocksymbols
3.Hourmeter
2.Batterylight
13
