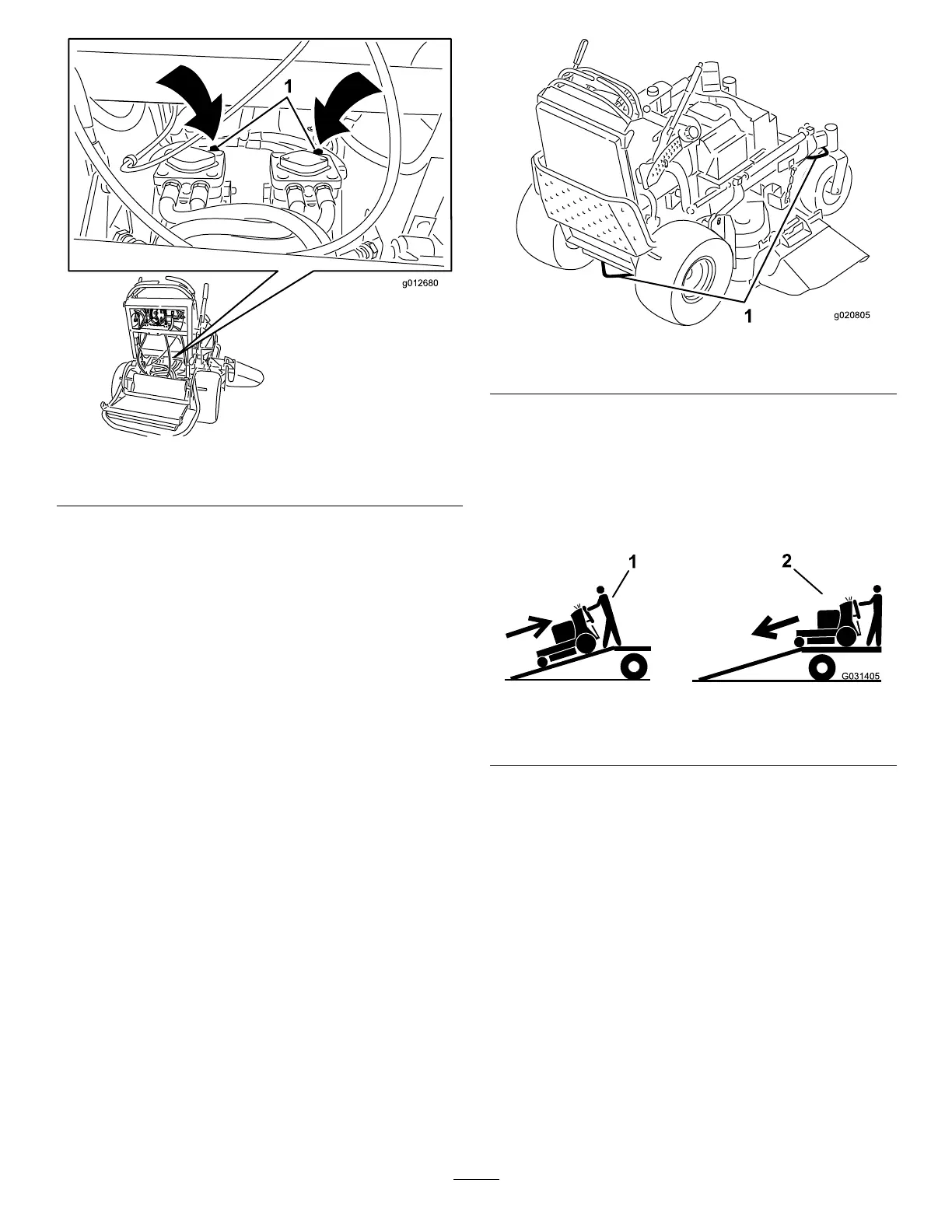

Figure24
1.Pump-bypassvalve
4.Releasetheparkingbrake.
5.Pushthemachinetothedesiredlocation.
6.Settheparkingbrake.
7.Closethebypassvalvesbutdonotovertightenthem.
8.Torquethevalvesto12to15N∙m(110to130in-lb).
Important:Donotstartoroperatethemachine
withthebypassvalvesopen.Damagetosystem
mayoccur.
TransportingtheMachine
Useaheavy-dutytrailerortrucktotransportthemachine.
Ensurethatthetrailerortruckhasallnecessarybrakes,
lighting,andmarkingasrequiredbylaw .Pleasecarefullyread
allthesafetyinstructions.
1.Raisetheplatformofthemachinebeforedrivingup
ontothetrailerortruck.
2.Ifusingatrailer,connectittothetowingvehicleand
connectthesafetychains.
3.Ifapplicable,connectthetrailerbrakes.
4.Loadthemachineontothetrailerortruck.
5.Shutofftheengine,removethekey,setthebrake,and
closethefuelvalve.
6.Usethemetaltie-downloopsonthemachineto
securelyfastenthemachinetothetrailerortruckwith
straps,chains,cable,orropes(Figure25).
g020805
Figure25
1.Tractionunittie-downloop
LoadingtheMachine
Useextremecautionwhenloadingorunloadingmachines
ontoatraileroratruck.Useafull-widthrampthatiswider
thanthemachineforthisprocedure.Backthemachineupthe
rampandwalkitforwarddowntheramp(Figure26).
Figure26
1.Backthemachineupthe
ramp.
2.Walkthemachinedown
theramp.
Important:Donotusenarrowindividualrampsfor
eachsideofthemachine.
Ensurethattherampislongenoughsothattheanglewith
thegrounddoesnotexceed15degrees(Figure27).Onat
ground,thisrequiresaramptobeatleast4timesaslongas
theheightofthetrailerortruckbedtotheground.Asteeper
anglemaycausemowercomponentstogetcaughtasthe
machinemovesfromtheramptothetrailerortruck.Steeper
anglesmayalsocausethemachinetotiporlosecontrol.If
youareloadingthemachineonornearaslope,positionthe
trailerortrucksothatitisonthedownsideoftheslopeand
therampextendsuptheslope.Thisminimizestheramp
angle.
24
