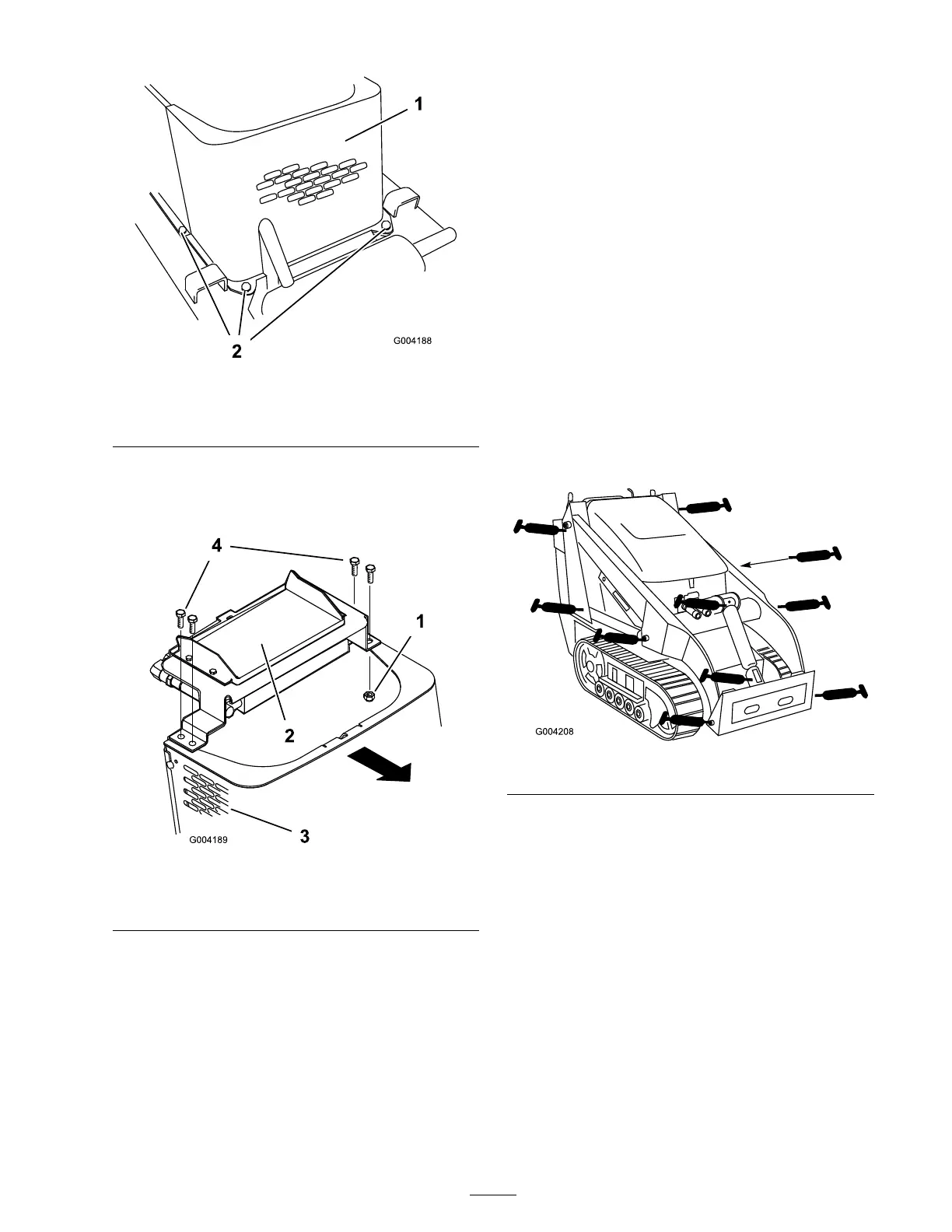

Figure 21
1. Front screen
2. Bolts (left side bolt not
shown)
6. R emo v e the shoulder bolts and n uts securing
the oil cooler to the top of the front screen
( Figure 22 ).
Figure 22
1. Nut
3. Front screen
2. Oil cooler 4. Shoulder bolts
7. R emo v e the front screen.
8. W hen finished, install the front screen with the
4 bolts remo v ed previously .
9. Install the oil cooler to the front screen with the
4 shoulder bolts and n uts remo v ed previously .
10. Slide the heat shield betw een the frame and the
front w eight and secure it to the front screen
g rill using the car riag e bolts and n uts remo v ed
previously ( Figure 20 ).
11. Tighten the bolts securing the front w eight
( Figure 20 ).
12. Install the side screens and close the hood.
Lubrication
Greasing the Traction Unit
Grease all pi v ot joints ev er y 8 operating hours and
immediately after ev er y w ashing .
Grease T ype: General-pur pose g rease .
1. Lo w er the loader ar ms and stop the engine .
R emo v e the k ey .
2. Clean the g rease fittings with a rag .
3. Connect a g rease gun to eac h fitting ( Figure 23
and Figure 24 ).
Figure 23
27
