MOWER DECK
6-21
Toro Timecutter SS/MX/ZS Service Manual
6
Checking for Bent Blades
Note: The machine must be on a level surface for
the following procedure.
1� Raise deck to the highest height-of-cut position�
2� While wearing thickly padded gloves or other
adequate hand protection slowly rotate blade to
be measured into a position that allows effective
measurement of the distance between the cutting
edge and the level surface the unit is on (Fig� 116)�
3� Measure from the tip of the blade to the level surface
(Fig� 117)�

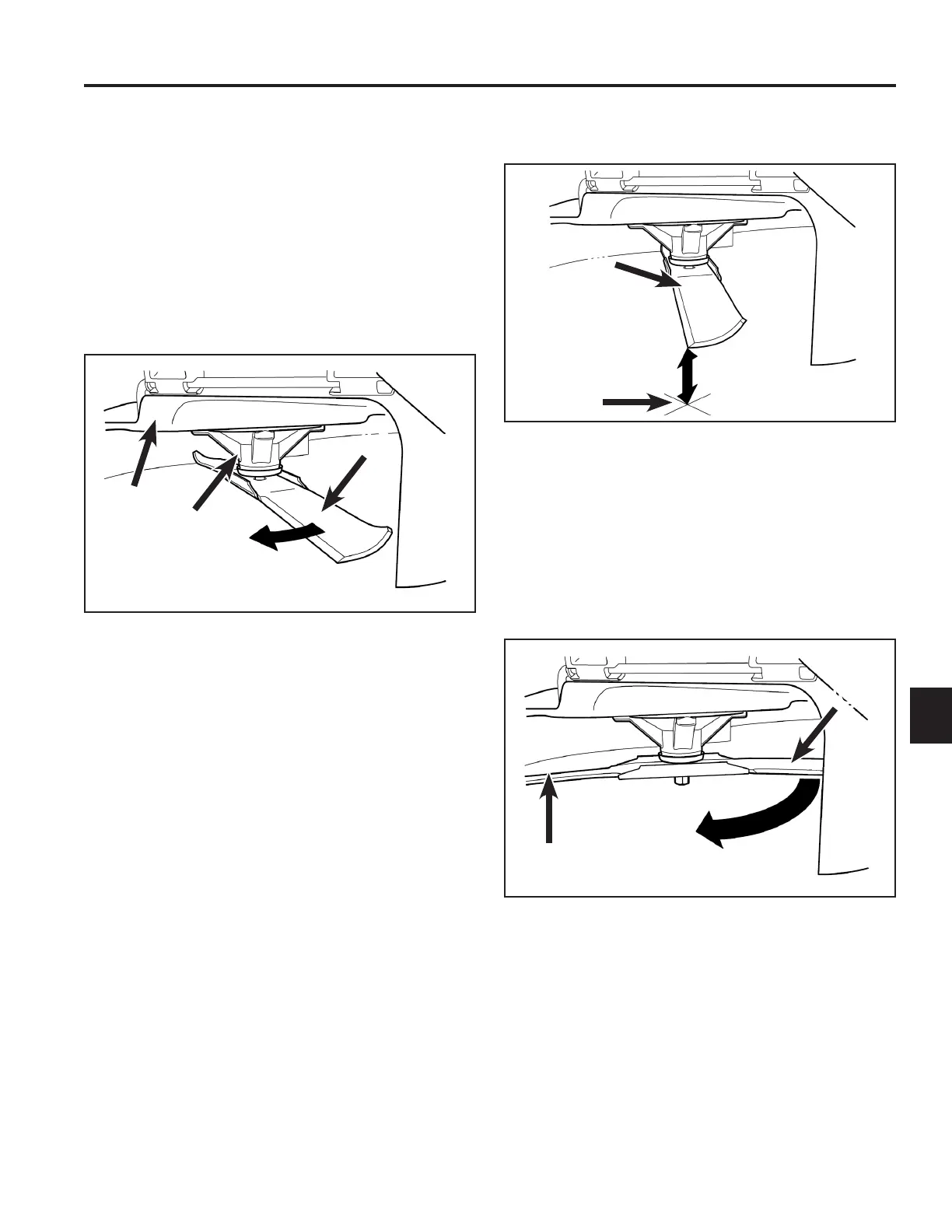

Fig. 116 g.39G009679
Fig. 117 g.40G009680
A� Blade, in position for measuring
B� Level surface
C� Measure from blade tip to level surface
A� Blade, side previously measured
B� Measurement position used previously
C� Opposing side of blade being moved into measure-
ment position
A� Deck C� Blade
B� Spindle housing
4� Rotate the same blade 180 degrees so that the
opposing cutting edge is now in the same position
(Fig� 118)�
Fig. 118 g.41G009681
A
B
C
A
B
C
A
B
C
