CHASSIS
3-10
Toro TimeCutter SW/SWX Service Manual
3
FRONT SHROUD - ZERO TURN TRACTOR

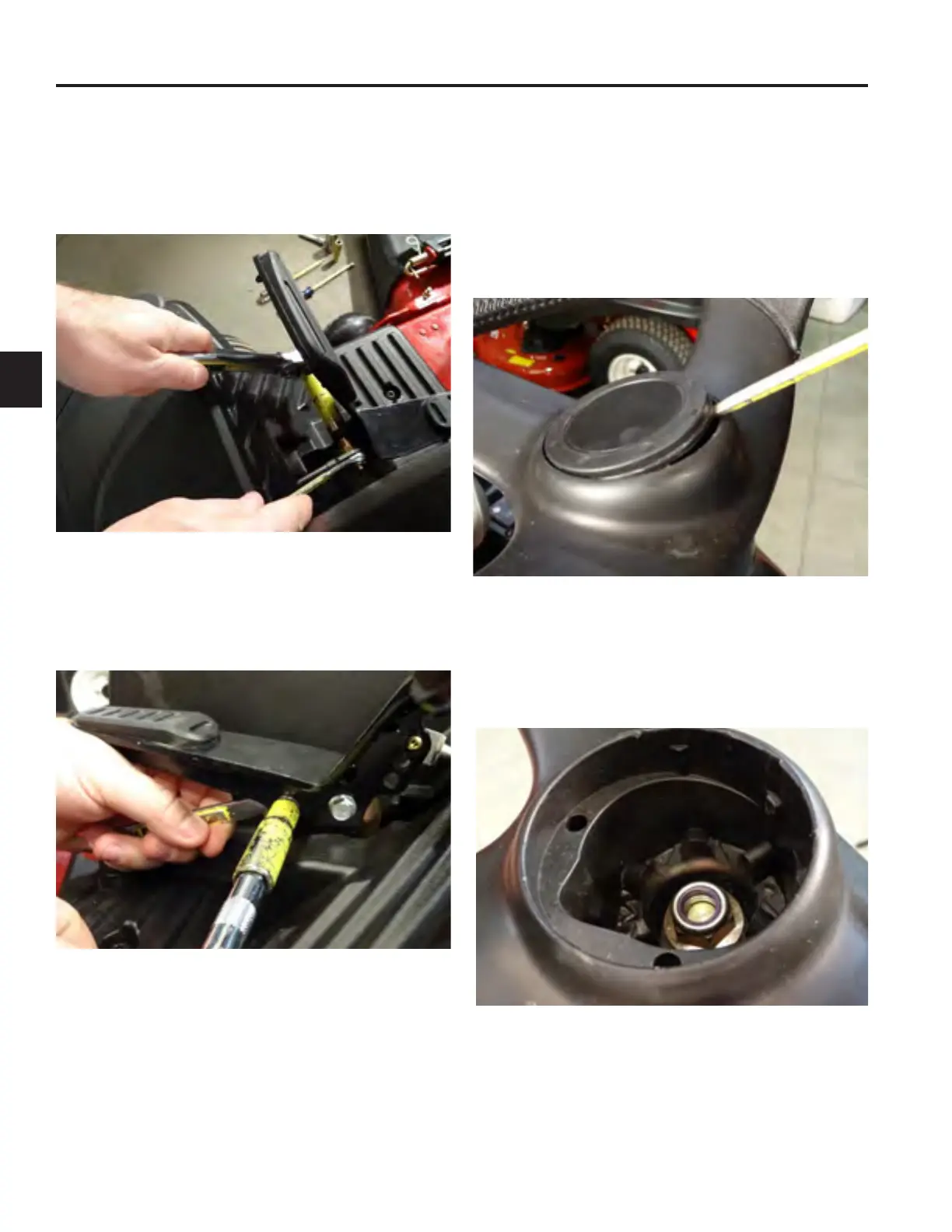

Front Shroud Removal
1. Disconnect the damper from the traction pedal.
2. Disconnect the traction pedal from the pedal
pivot mount. Remove traction pedal
.
3. Remove the steering wheel cap.
4. Loosen the steering wheel lock nut. Leave the
nut on the shaft at least 2-3 threads.
