CHASSIS
3-21
Toro TimeCutter SW/SWX Service Manual
3

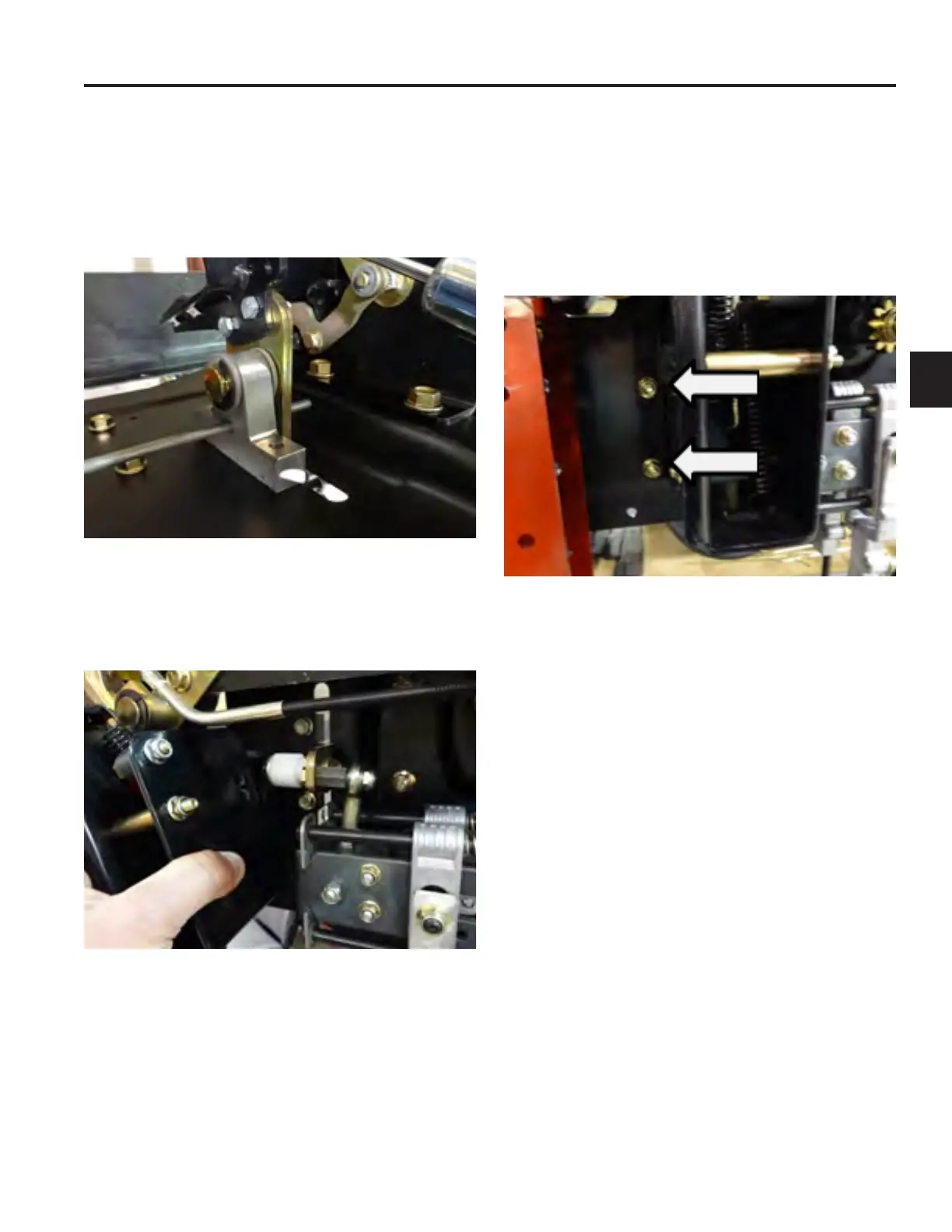

RETURN TO NEUTRAL ASSEMBLY - ZERO TURN TRACTOR
2. Re-connect the switch connectors to the
switches. Slide the assembly into position, then
place the roller between the switch arms.
3. Install the two mount bolts and torque to 150-200
in-lbs. (11.5-17 Nm). Ensure the switch arms
can move freely and do not bind.
Return to Neutral Assembly Installation
1. Insert a 1/4 in. dowel pin through the hole on the
pedal mount and into the foot pedal assembly.
This ensures the foot pedal is in the neutral
position.
