Toro TimeCutter SW5425 User Manual

ENGINE
4-1
Toro TimeCutter SW/SWX Service Manual
4
Engine Replacement
PTO Clutch & Clutch Stop Mounting (All Models)

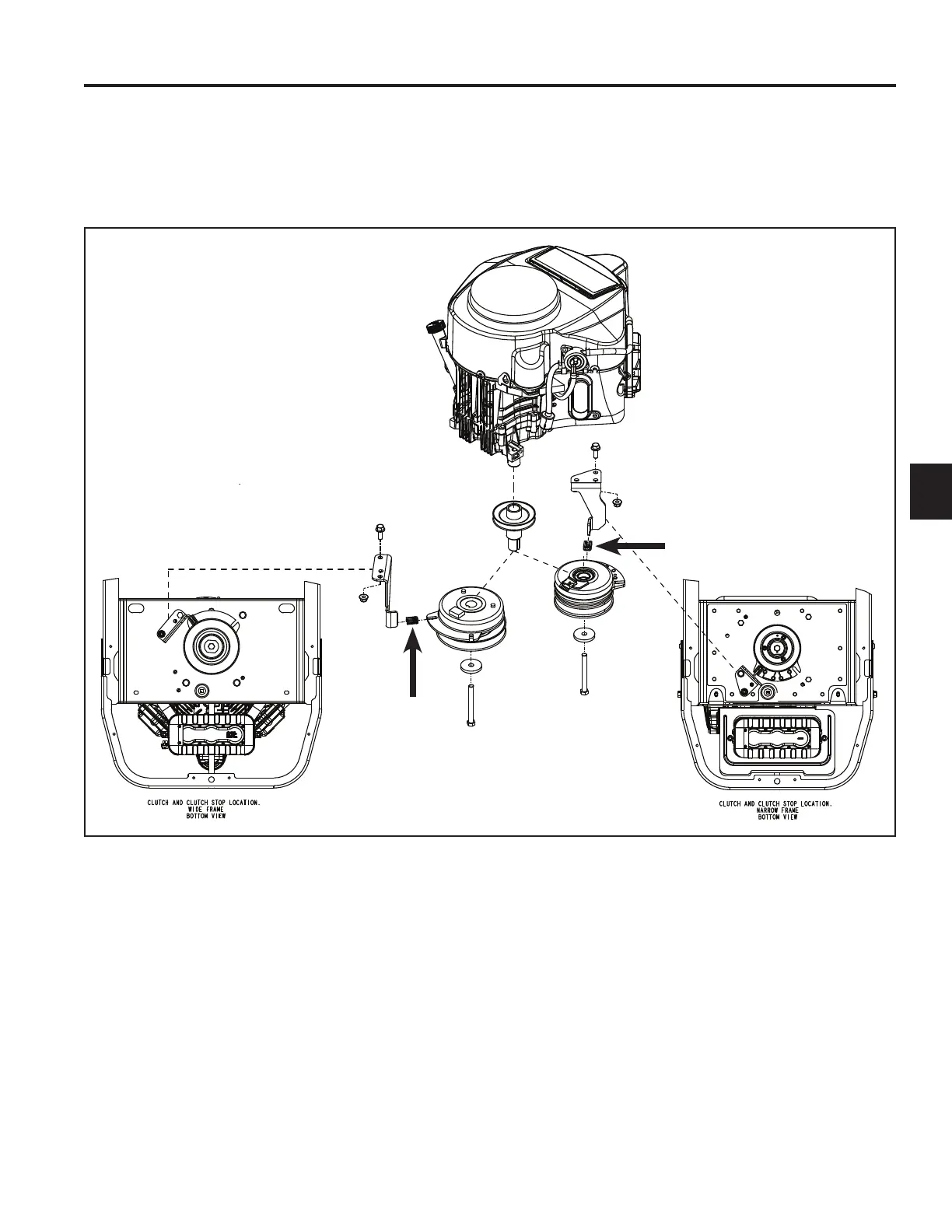

(Fig. 033)
Fig. 033 PICT-1079
A. PTO clutch bolt - 55 ft-lbs. (76 Nm) - apply Loctite
®
242 to bolt threads
B. Drive pulley - apply anti-seize to crankshaft and
pulley ends
C. Clutch stop nut/bolt - 30 ft-lbs. (40 Nm)
D. Rubber isolator
Chassis Identication
Wide Frame
- All TimeCutter SW 50 & 54 inch units
- All TimeCutter SWX 50 inch units
Narrow Frame
- All TimeCutter SW 32 and 42 inch units
- All TimeCutter SWX 42 inch units
C
A
A
C
D
D
B
