CHASSIS
3-4
Toro TimeCutter SW/SWX Service Manual
3
Pod / Fender / Fuel Tank Service
Pod / Fender Removal – RH
1. Raise seat and disconnect battery terminals.
2. Remove the (3) screws (A) securing control panel to
RH fender (B). Move control panel inward towards
the center of the unit.
3. Remove the (3) screws (C) securing the RH fender
to frame.
4. Maneuver RH fender (B) up and off frame.
Note: The RH control lever and deck lift lever must
pass through the RH fender during removal
and installation.
Pod / Fender Installation – RH
1. Maneuver RH fender (B) into position.
Note: The RH control lever and deck lift lever must
pass through the RH fender during removal
and installation.
2. Install the (3) screws (C) that secure the RH fender
to frame and torque the (3) screws to specication –
7 ft-lbs. (9 Nm).
3. Position control panel back onto RH fender. Install
and sufciently tighten the (3) screws (A) that secure
the control panel to the RH fender (B).
4. Verify choke cable, throttle cable and wiring are
properly routed.
5. Connect battery terminals and lower seat.

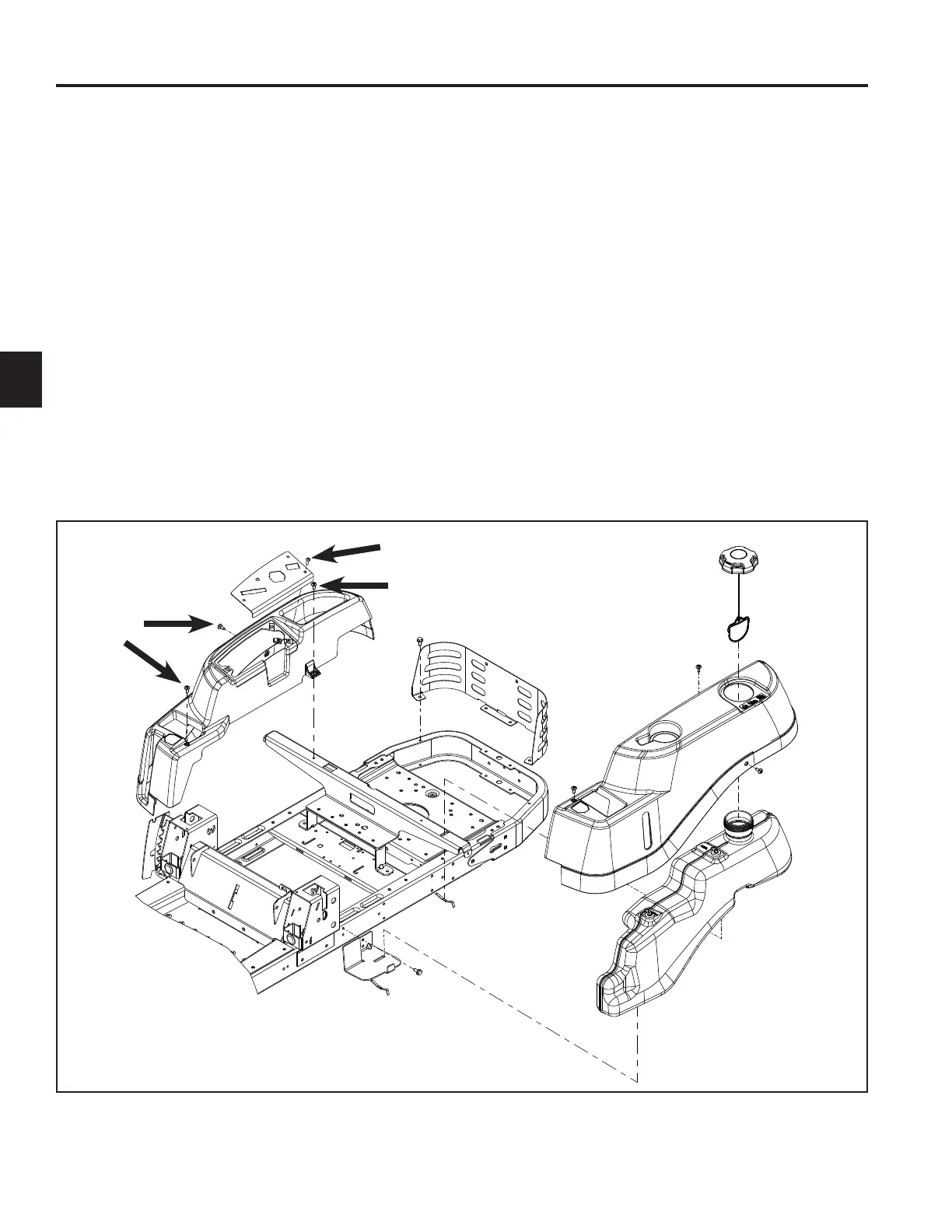

(Fig. 010)
Fig. 010 PICT-1040
C
C
A
B
