Toro TimeCutter SW/SWX Service Manual
4

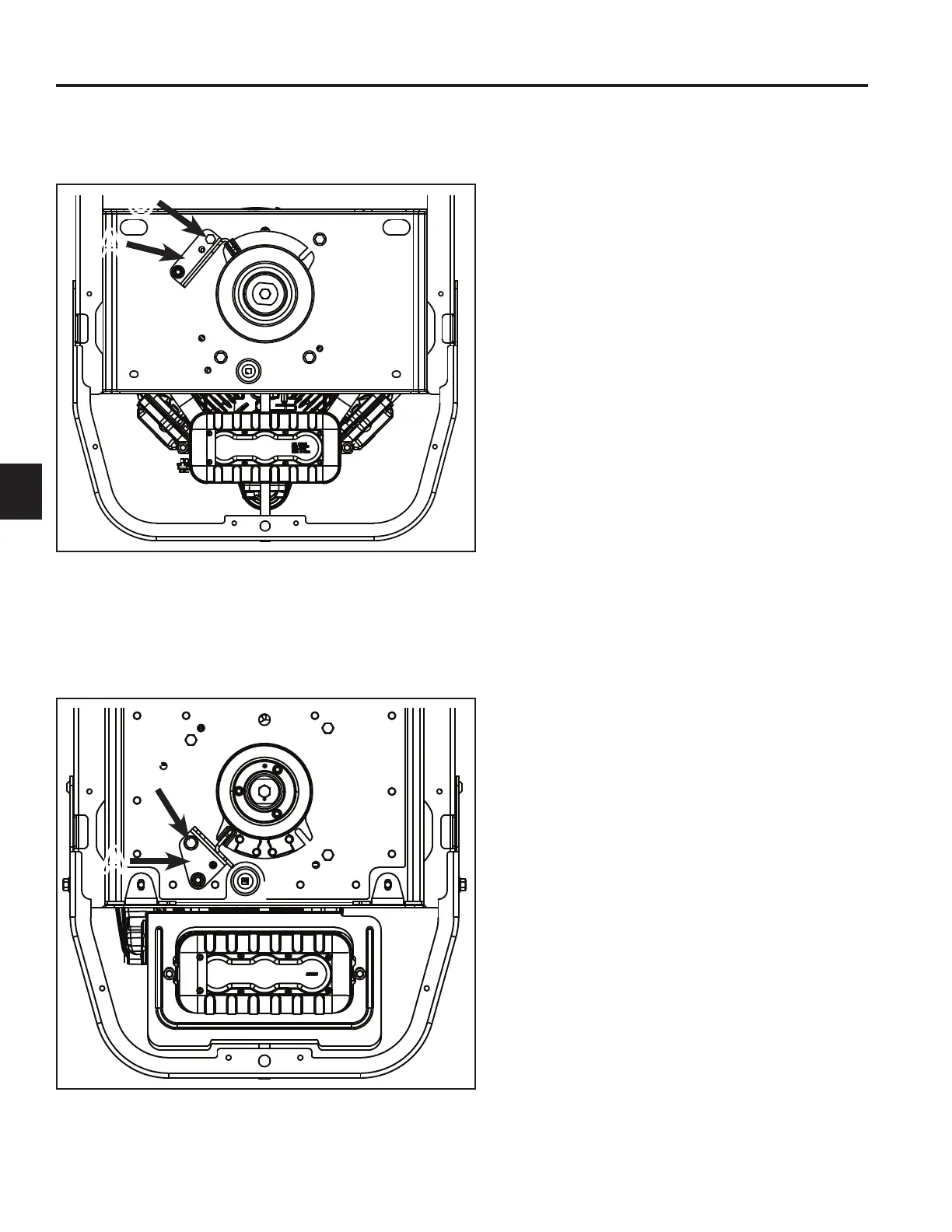

Clutch & Clutch Stop Location - Wide Frame
(Fig. 039) Bottom view
Wide Frame Chassis Identication:
- All TimeCutter SW 50 & 54 inch units
- All TimeCutter SWX 50 inch units
Fig. 039 PICT-1085
Clutch & Clutch Stop Location - Narrow Frame
(Fig. 040) Bottom view
Narrow Frame Chassis Identication:
- All TimeCutter SW 32 & 42 inch units
- All TimeCutter SWX 42 inch units
Fig. 040 PICT-1086
A. Clutch stop
B. PTO clutch
C. Engine mounting bolts (4)
A. Clutch stop
B. PTO clutch
C. Engine mounting bolts (4)
A
C
B
A
C
B
