MOWER DECK
6-14
Toro TimeCutter SS/MX/ZS Service Manual
6
Spindle Installation
1� Install blade, blade stiffener (C) (if equipped) and
washer onto spindle shaft� Be sure washer concave
surface is towards blade�
2. Installandtorquebladebolttospecication-
55 ft-lbs� (76 Nm)�
3� Install spindle assembly onto the deck shell and
torquefastenerstospecication:
- Self-tapping screws - 17 ft-lbs� (23 Nm)
4� Safely hold blade in position�
5� Install spindle pulley onto the spindle shaft and
torquepulleynut(A)tospecication-55ft-lbs.
(76 Nm)�
6� If necessary, install deck assembly as shown in this
chapter�
7� Install deck belt properly around all pulleys and PTO
clutch�
8. Installbeltcover(s)ontodeckandsufcientlytighten
mounting bolts�

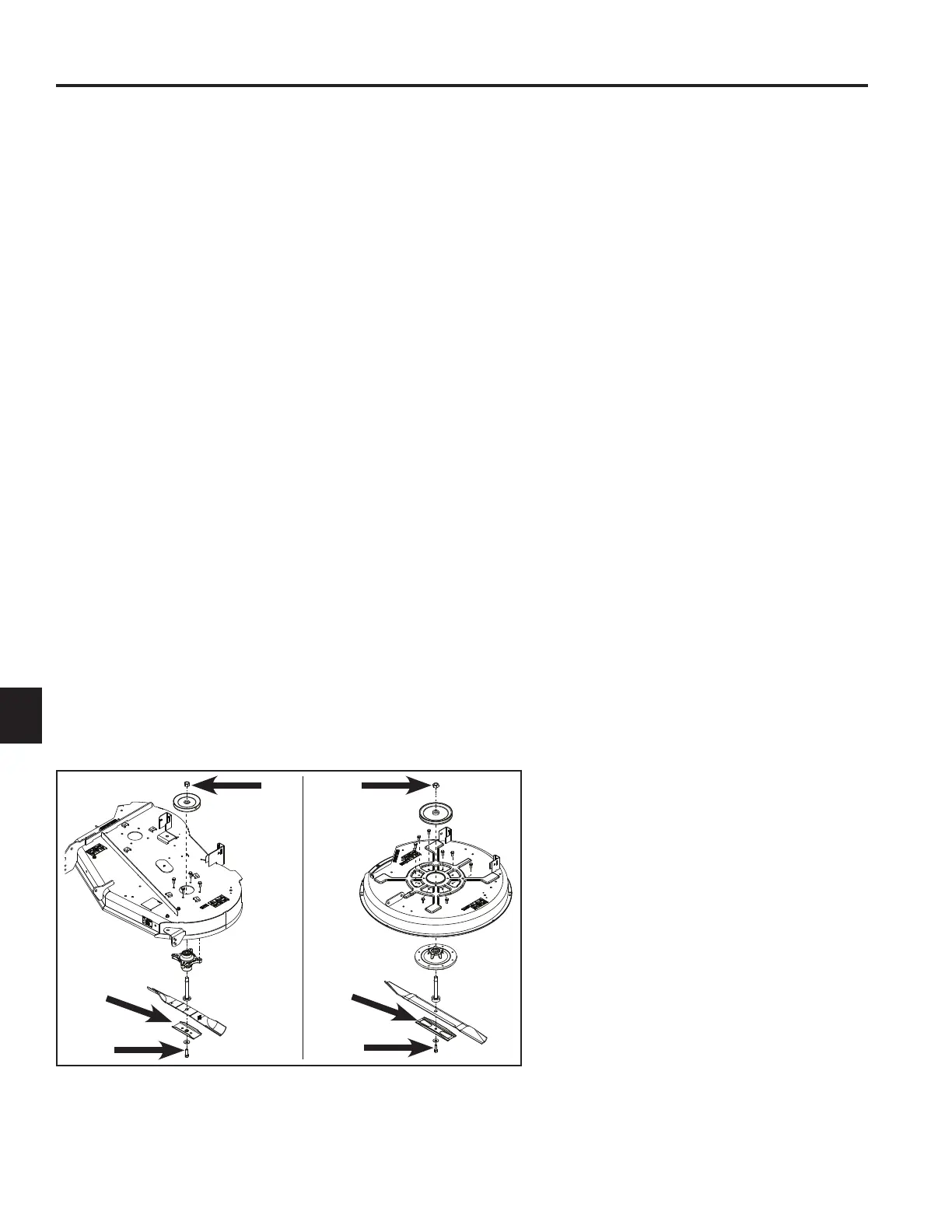

Fig. 110 PICT-1066
Spindle Service
Spindle Removal
1� If necessary, remove deck from frame as outlined in
this chapter�
2� Remove belt cover(s) from deck�
3� Remove or disengage the deck belt from the spindle
pulley(s)�
4� Safely hold the blade in position and remove the
spindle pulley nut (A) (Fig� 110)� Inspect the pulley
and spindle shaft for excessive wear and replace if
necessary�
5� Remove the fasteners that secure spindle housing to
deck shell�
- 32 inch decks use (8) self-tapping bolts for
spindle mounting
- 42-50 inch decks use (4) self-tapping bolts for
spindle mounting
6� Remove spindle assembly from deck�
7� Remove blade bolt (B) and washer (Fig� 110)�
8� Remove blade stiffener (C) if equipped (Fig� 110)�
Note: Not all SS, MX and ZS models are equipped
with blade stiffeners.
9� Remove blade�
A
C C
B B
A
