CHASSIS
3-14
Toro TimeCutter SW/SWX Service Manual
3
Pod / Fender Support Installation
1. Position the Pod / Fender support bracket onto the
chassis.
2. Install the fasteners (A, B and C) that secure the
support to the chassis and torque to specication –
17 ft-lbs. (23 Nm).
3. Properly route the fuel lines / wire harness and
secure with cable ties (if needed).
4. Install hydro tank reservoir (SWX models only).
5. Install and connect hour meter (if equipped).
6. Install fuel tank and fenders.
7. Verify proper cable, wire harness and hose routing.
8. Connect battery terminals and lower seat
9. Verify proper unit function.
Pod / Fender Support Service

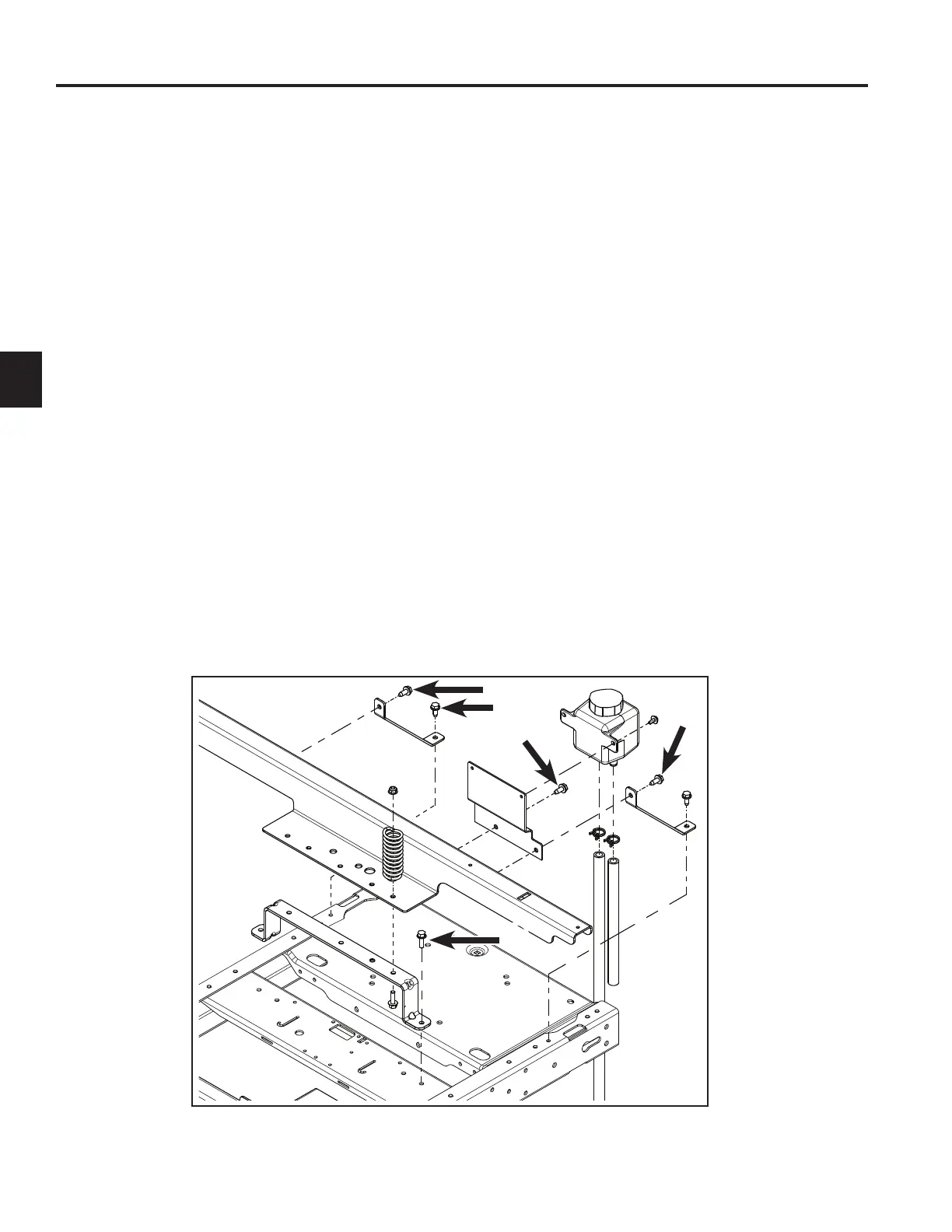

Pod / Fender Support Removal (SWX Shown)
1. Raise seat and disconnect battery terminals.
2. Remove fenders and fuel tank as shown in this
chapter.
3. Take note of cable and harness routing for
reassembly.
4. Disconnect and remove the hour meter (if equipped).
5. Remove the fasteners (A) attaching the hydro
reservoir to the support bracket (SWX models only).
6. Remove the cable ties that secure the fuel lines /
wire harness cables (if equipped).
7. Remove the fasteners (B) securing the (2) rear
supports to the frame.
8. Remove the fasteners (C) securing the front fender
support to the frame.
9. Remove the Pod / Fender support bracket from the
chassis.
(Fig. 025)
Fig. 025 PICT-1060
B
A
C
A
