CHASSIS
3-27
Toro TimeCutter SW/SWX Service Manual
3

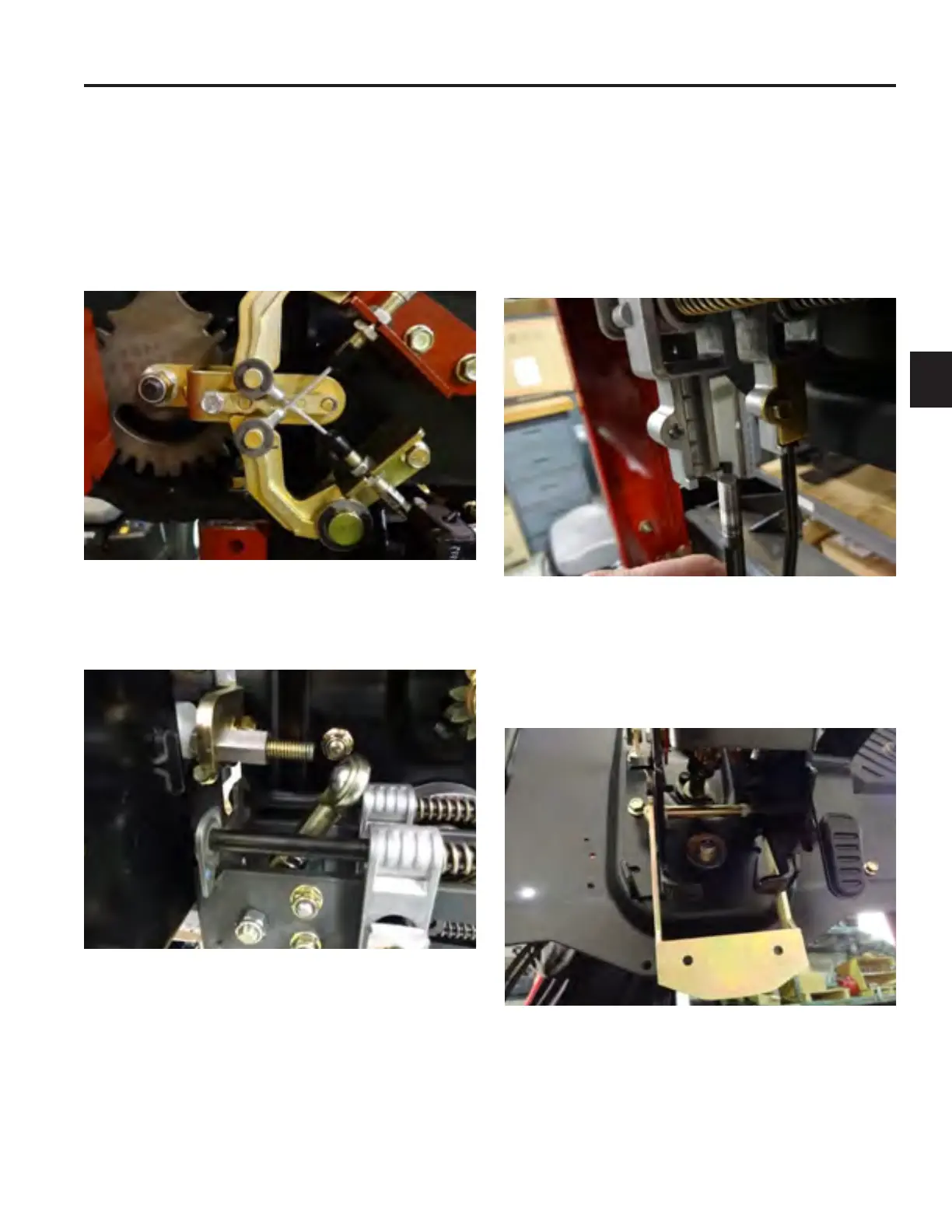

Speed Control Assembly Removal
1. Remove the front shroud as outlined in “Front
Shroud Removal” service information sheet.
2. Remove the cables from the cable arms as
outlined in “cable removal.”
3. Remove the rod end from the pivot lever
assembly.
4. Remove the hydro rods from speed control
assembly.
5. Remove the bolt holding the speed control
assembly to the frame. The bolt is directly under
the steering column.
SPEED CONTROL ASSEMBLY - ZERO TURN TRACTOR
