Fuse Block & Fuses
Purpose
The fuse block houses the electrical system fuses.
Location
The fuse block is located behind the operator’s seat,
near the starter solenoid on the RH side of the unit (Fig.
158).
How It Works
The fuse block houses the fuses that protect the electri-
cal system from electrical surges.
Testing
• With a multimeter set to OHM of continuity setting,
check the continuity between the fuse blades. If the
fuse is OPEN, replace it and test the circuit.
• The fuses used in this application can also be
visually inspected. A failed fuse can be identied by
the broken/melted element inside the fuse cover or a
damaged spade (Fig. 159 and Fig. 160).

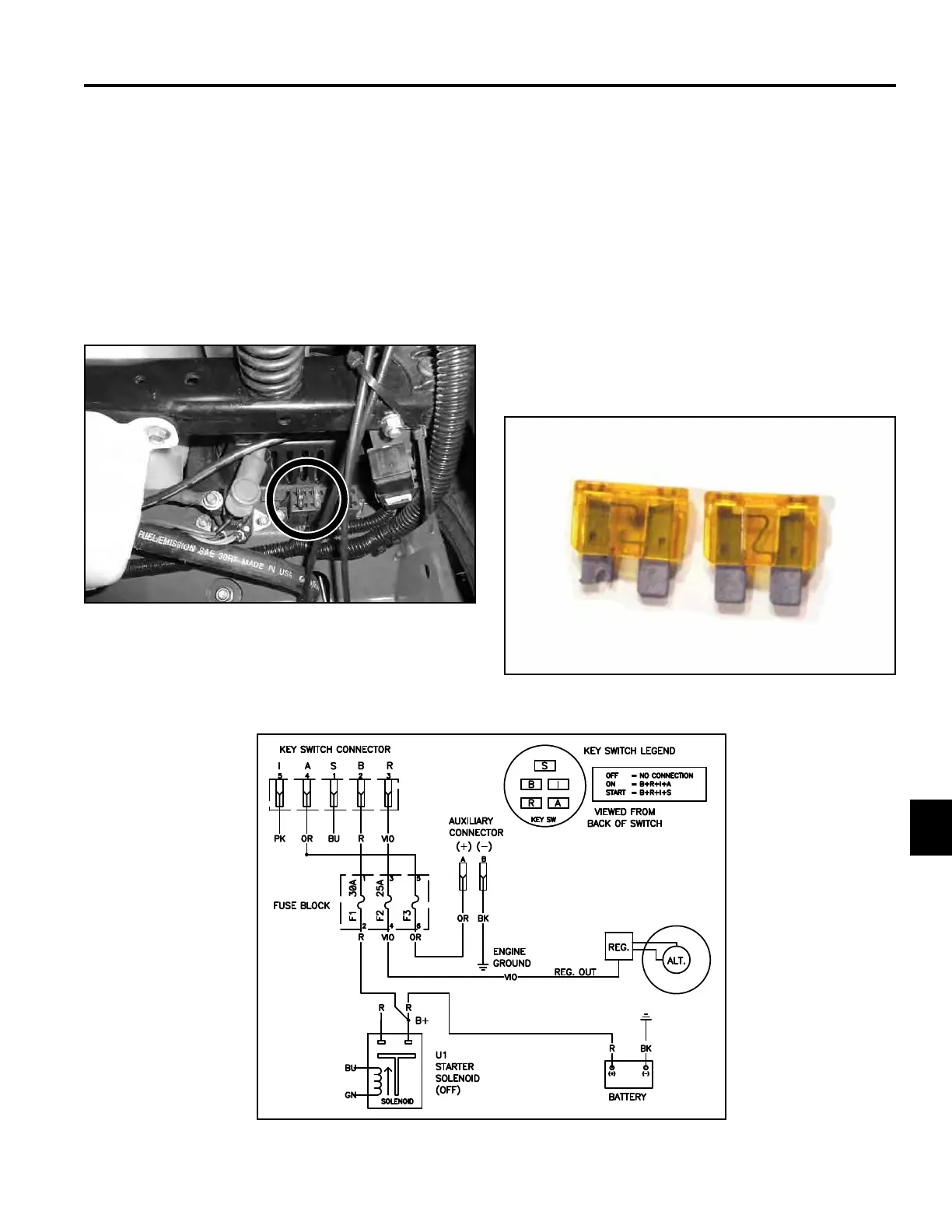

Fig. 158 PICT-2013
Fig. 159 IMG-1214a
Fig. 160 PICT-2017
