HYDROSTATIC DRIVE SYSTEM
5-9
Toro TITAN 2009-2013 Service Manual
5

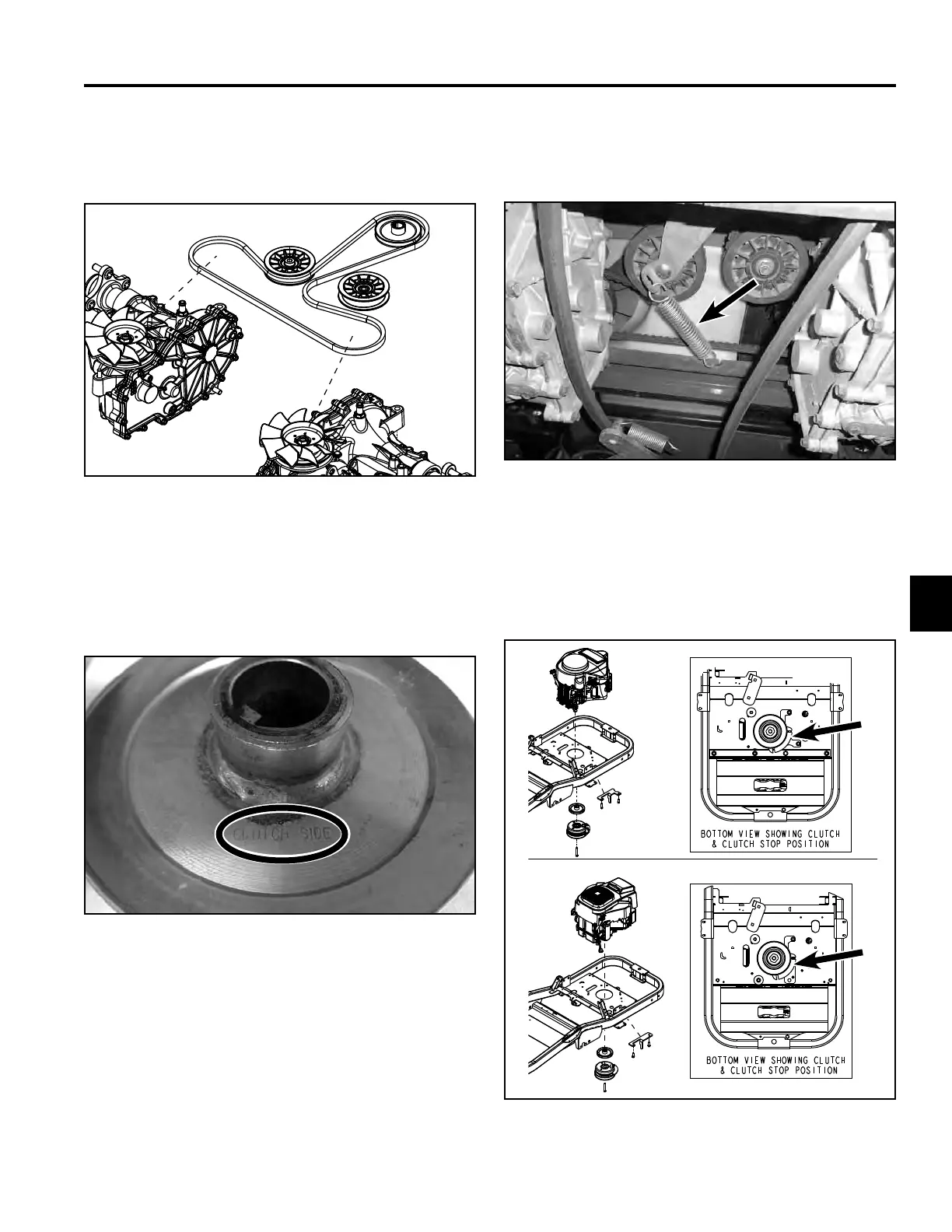

Hydrostatic Drive Belt Installation
1. Properly route the belt around the (2) hydro input
pulleys, and (2) tensioner / idler pulleys (Fig. 073).
3. Install the drive belt around the drive pulley.
4. Install the drive belt tensioner spring as oriented
below (Fig. 075).
Fig. 073 PICT-2043
2. Install the drive pulley onto the crankshaft and hold
in position.
Note: The drive pulley is marked “CLUTCH SIDE”
for proper installation (Fig. 074).
Fig. 074 PICT-2044
Fig. 075 PICT-2041
5. Apply Loctite
®
242 to the PTO clutch bolt threads.
6. Install the PTO clutch. Be sure the PTO clutch stop
bracket is properly engaged into the clutch slot (Fig.
076).
Fig. 076 PICT-2045
Kawasaki Clutch / Clutch Stop Location
Kohler / Briggs and Stratton Clutch / Clutch Stop Location
