HYDROSTATIC DRIVE SYSTEM
5-5
Toro TITAN 2009-2013 Service Manual
5

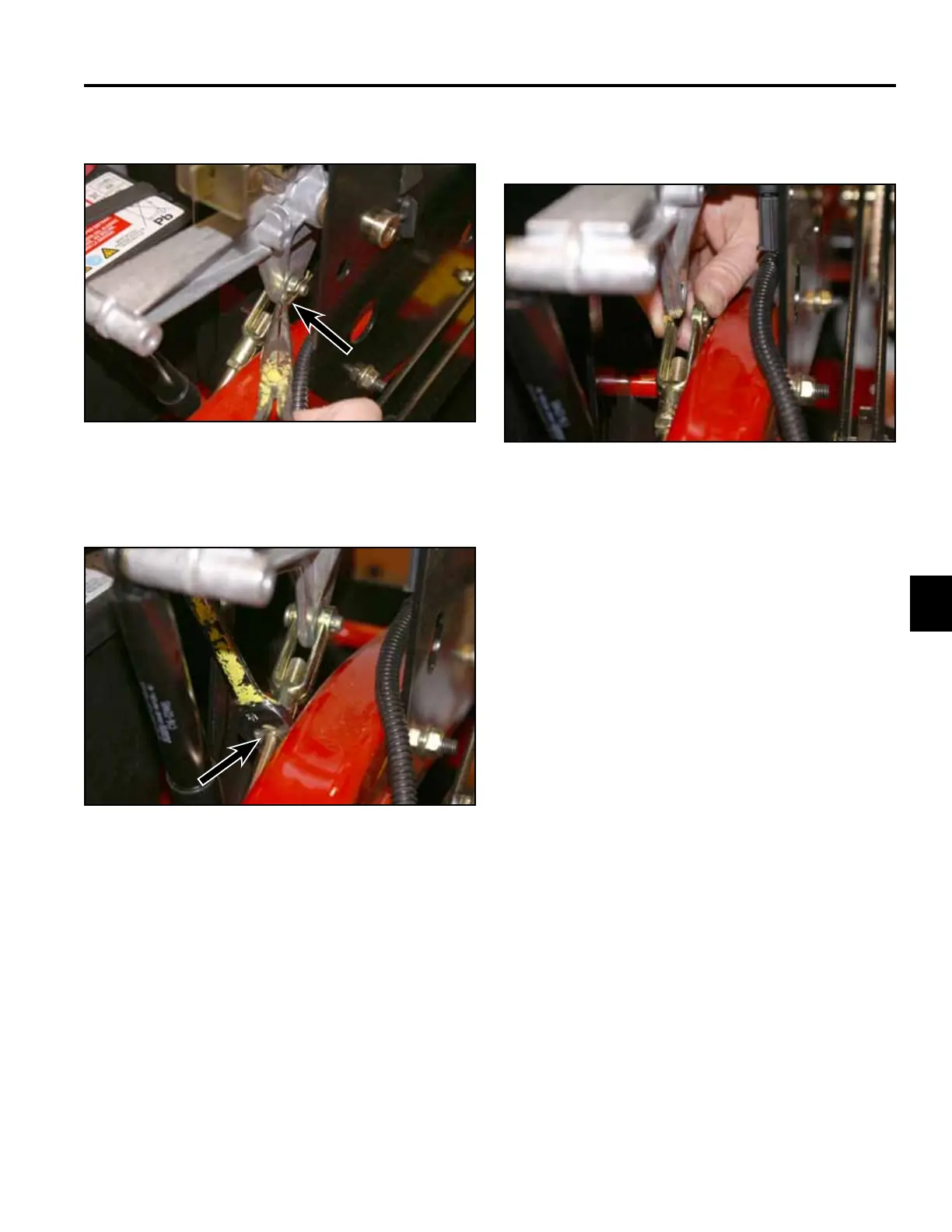

8. Remove the hairpin and clevis from the adjustable
yoke (Fig. 065).
10. Turn the yoke assembly to lengthen / shorten the
control rod as needed to achieve proper neutral
adjustment (Fig. 067).
Fig. 065 PICT-6471a
9. Loosen the jam nut on the hydro linkage rod (Fig.
066).
Fig. 066 PICT-6474a
Fig. 067 PICT-6478a
11. Install the clevis pin and hairpin back into the yoke
assembly.
12. Start the engine and run it at full RPM.
13. Stroke the control handles in forward and reverse.
Move the control into the neutral position and verify
the rear wheels do not rotate forward or reverse.
Note: A slight amount of reverse creep is
acceptable.
14. Turn engine off.
15. Readjust neutral setting if required.
16. Install the fender / pod assembly / control panel
assembly as shown in chapter 3.
17. Remove the seat switch bypass jumper wire and
reconnect the seat switch harness connection.
18. Safely lower the unit and verify proper drive system
function.
